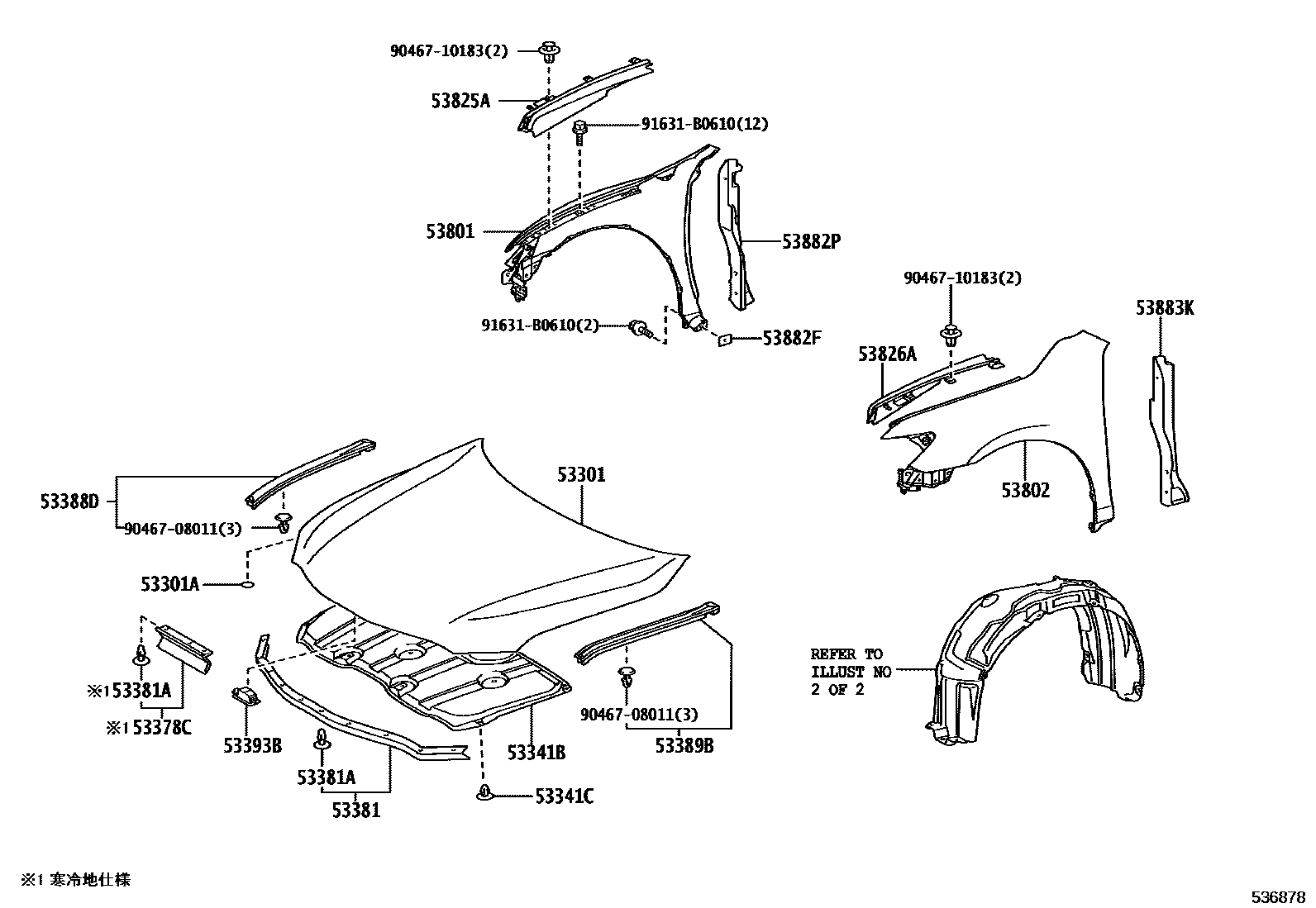

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-33120 |
| 53301A | Hole plug (for engine cover) | 90333-25001 · 90950-06124 |
| 53341B | engine cover gasket | 53341-33120 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53378C | Engine cover air intake pipe seal | 53378-33010 |
| 53381 | Engine cover to radiator bracket seal | 53381-33080 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53388D | Engine cover to right front fender seal | 53388-33040 |
| 53389B | Engine cover to left front fender seal | 53389-33050 |
| 53393B | Engine cover front protector | 53393-33010 |
| 53801 | Right front fender sub-assembly | 53801-33160 · 53801-33180 |
| 53802 | Left front fender sub-assembly | 53802-33160 · 53802-33180 |
| 53825A | Right front fender protection piece | 53825-33020 |
| 53826A | Protection piece on left front fender | 53826-33020 |

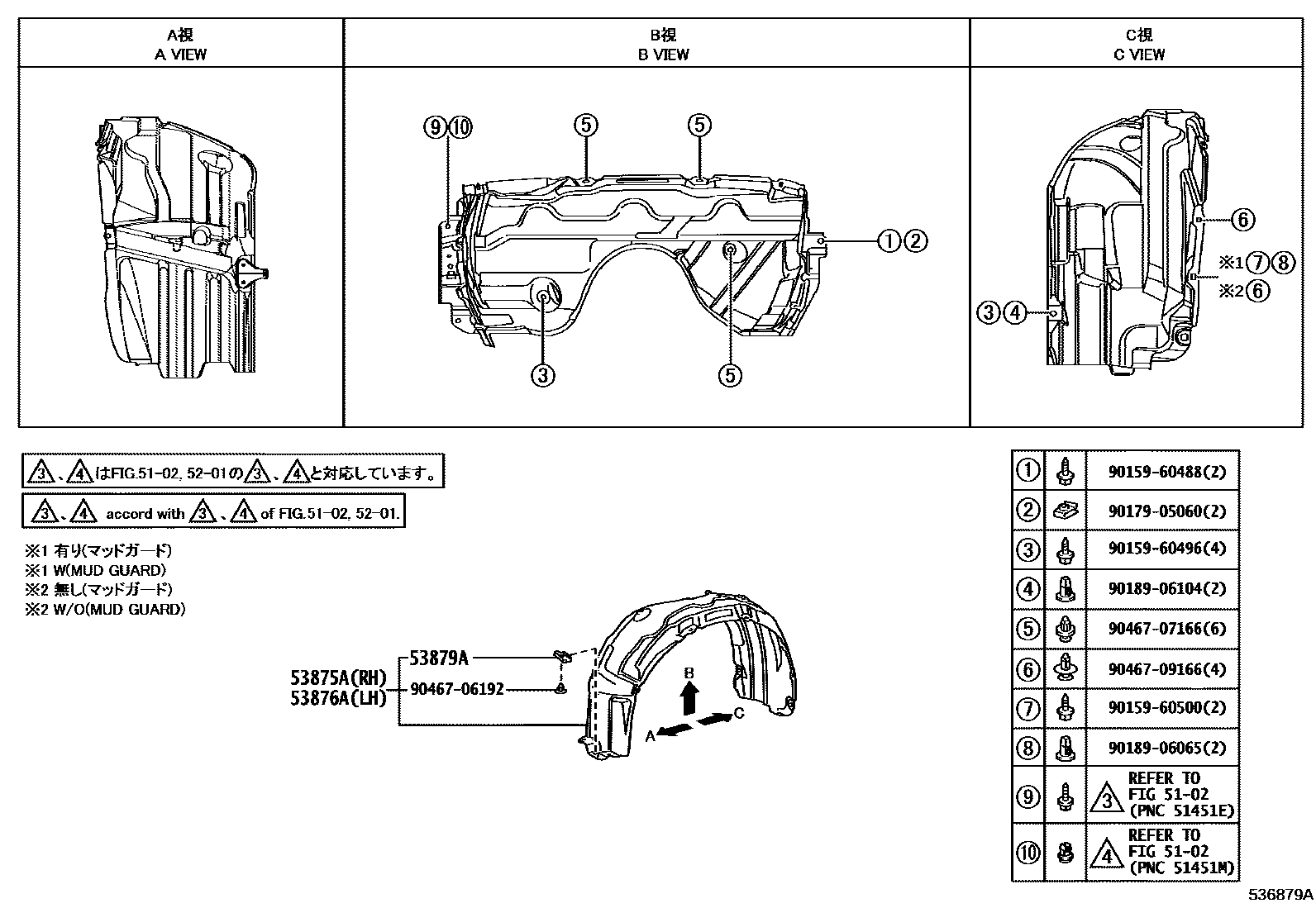

| 53875A | Right front fender lining | 53875-33150 |
| 53876A | Left front fender lining | 53876-33150 |
| 53879A | Front fender lining fixing parts | 53879-28040 |
| 53882F | front fender seal | 53882-16030 |
| 53882P | Right front fender seal | 53882-33030 · 53882-33031 · 53882-33040 · 53882-33041 · 53882-33042 · 53882-33043 |
| 53883K | Left front fender seal | 53883-33030 · 53883-33031 · 53883-33040 · 53883-33041 · 53883-33042 · 53883-33043 |
