Toyota CAMRY 制动配管和卡箍 — Figure 4708

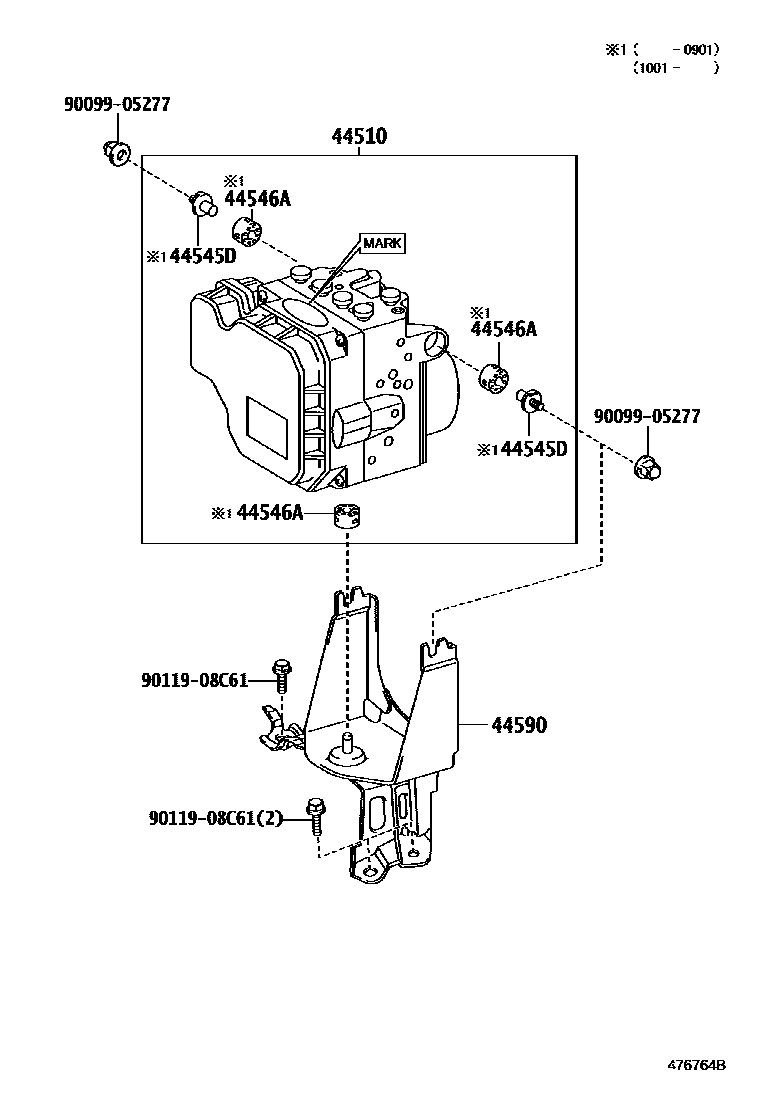

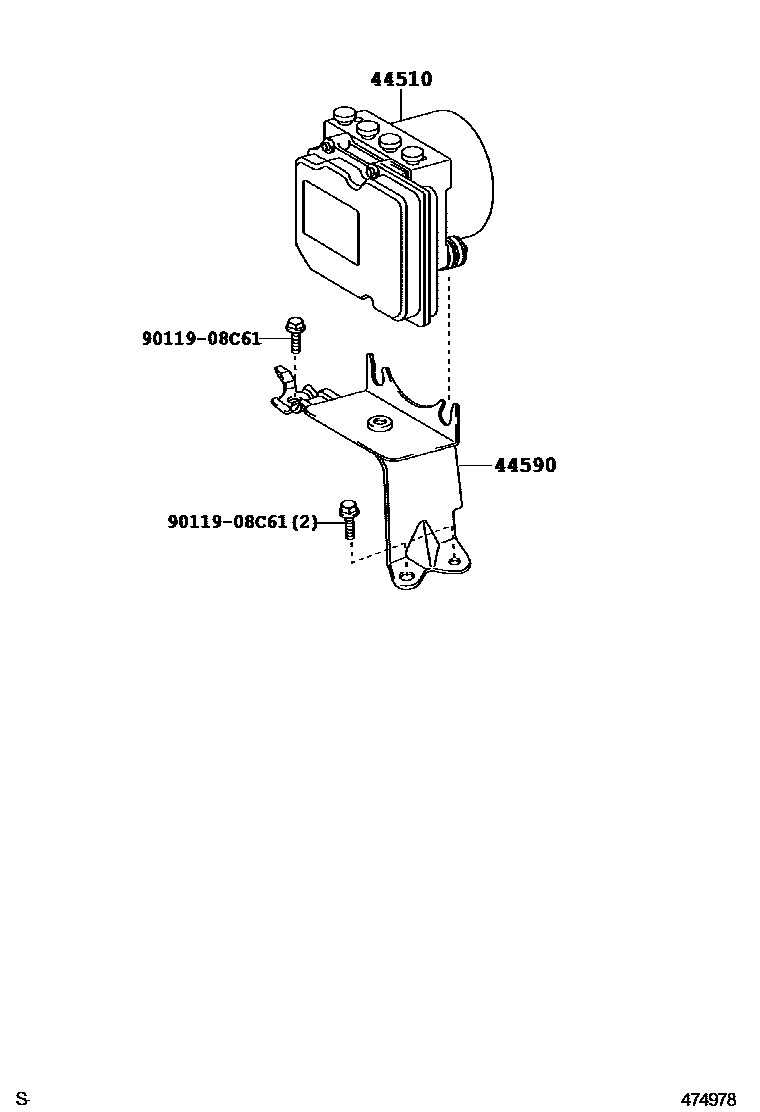

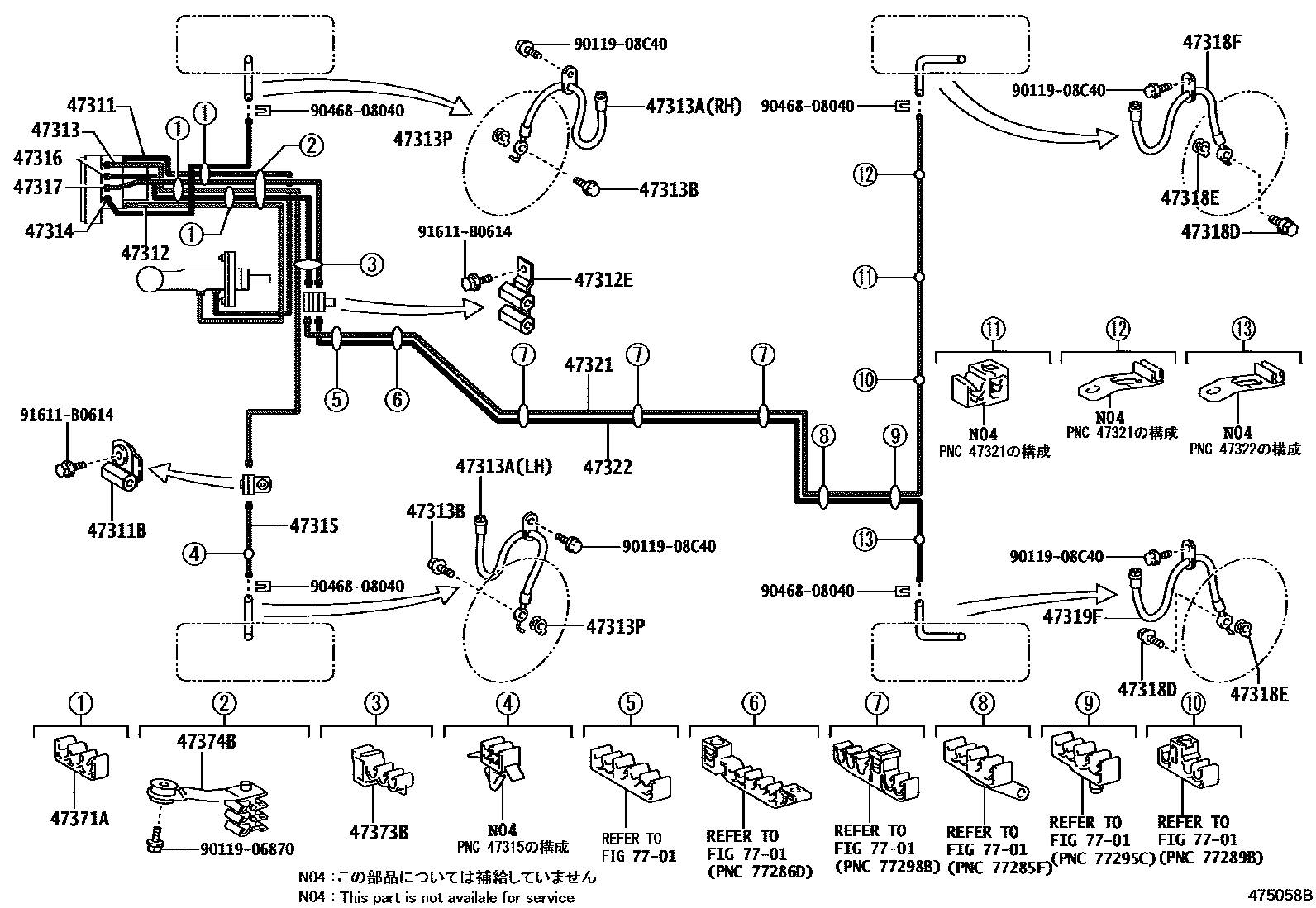

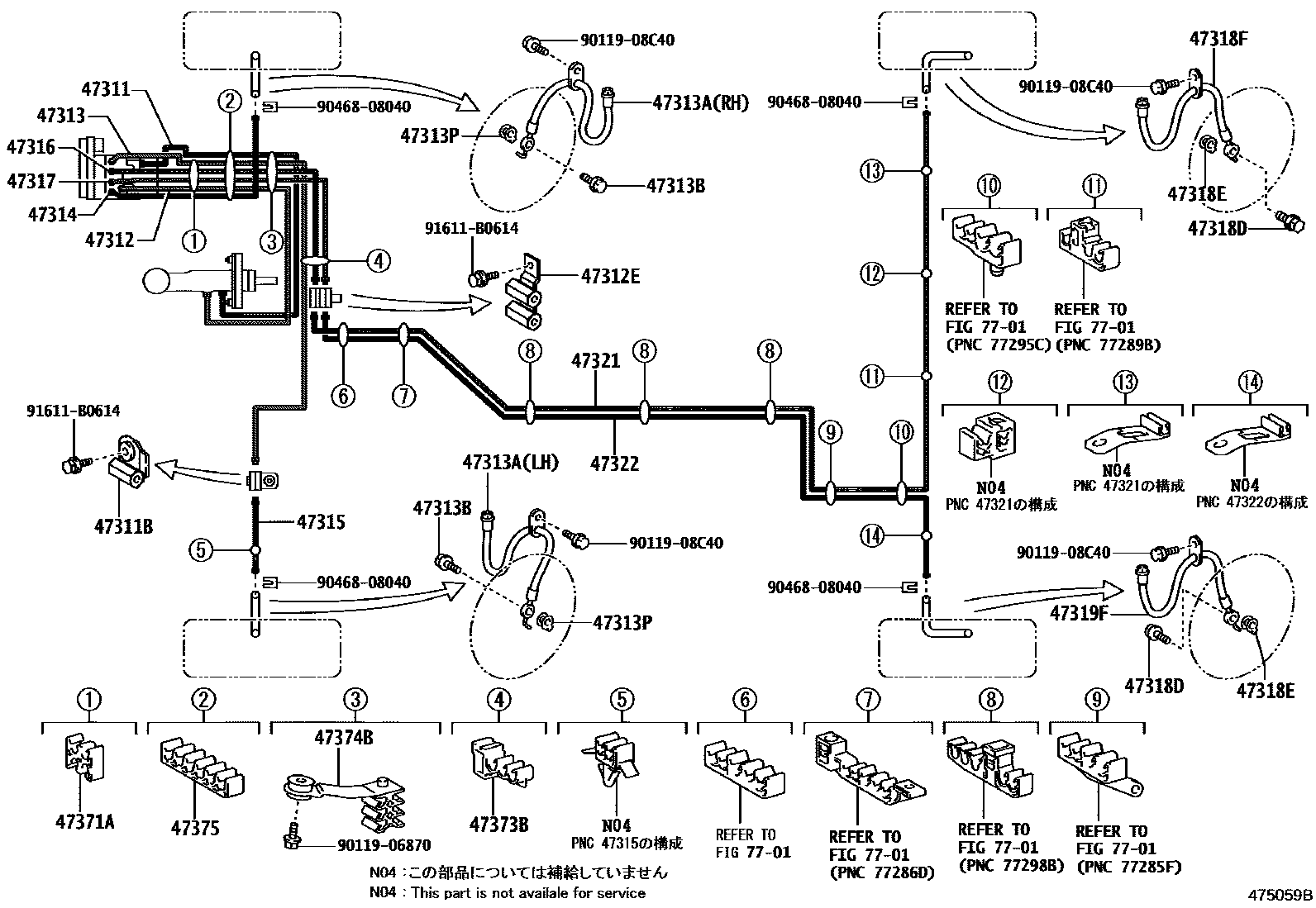

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-33150 · 44050-33160 · 44050-33240 · 44050-33250 · 44050-33280 |
| 44545D | Brake actuator bolt mount | 44545-42090 |
| 44546A | Brake actuator bolt cushion | 44546-42090 |
| 44590 | Brake actuator bracket assembly | 44590-33100 · 44590-33110 |
| 47311 | No. 1 front brake pipe | 47311-33190 · 47311-33200 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10213 |
| 47312 | No. 2 front brake pipe | 47312-33180 · 47312-33190 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10246 |
| 47313 | No. 3 front brake pipe | 47313-33170 · 47313-33180 |
| 47313A | No. 1 front flexible hose | 90947-02E20 · 90947-02E21 · 90947-02F58 · 90947-02F59 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-33150 · 47314-33160 |
| 47315 | No. 5 front brake pipe | 47315-33210 |
| 47316 | No. 6 front brake pipe | 47316-33270 · 47316-33280 |
| 47317 | No. 7 front brake pipe | 47317-33260 · 47317-33270 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 · 47389-50021 |
| 47318F | Right rear flexible hose | 90947-02C93 · 90947-02C95 · 90947-02F60 |
| 47319F | Left rear flexible hose | 90947-02C94 · 90947-02C96 · 90947-02F61 |
| 47321 | No. 1 rear brake pipe | 47321-33150 · 47321-33160 |
| 47322 | No. 2 rear brake pipe | 47322-33120 · 47322-33130 |
| 47371A | No. 1 brake pipe clamp | 90464-00857 · 90464-00876 |
| 47373B | No. 3 brake pipe clamp | 90949-01D05 |
| 47374B | No. 4 brake pipe clamp | 90949-04035 |
| 47375 | No. 5 brake pipe clamp | 90949-01C85 |
