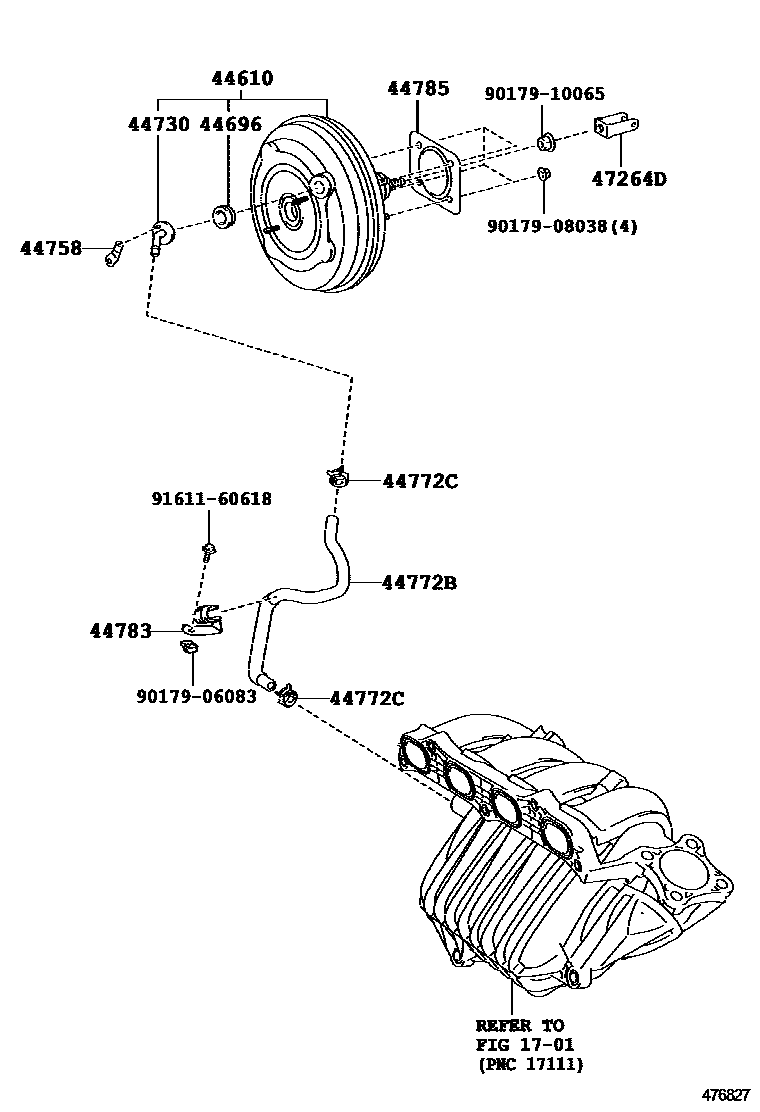

Toyota CAMRY 制动助力器和真空管 — Figure 4703
Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-33740 · 44610-33750 |
| 44696 | One-way valve seal | 90480-24015 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10020 |
| 44758 | Vacuum check valve bracket | 44758-32070 |
| 44772B | Hoses (check valve to brake booster) | 44772-33120 |
| 44772C | Clip (for check valve to brake booster hose) | 90467-16014 |
| 44783 | Vacuum hose clamp | 44783-28010 |
| 44785 | brake booster pad | 44785-16020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-63020 |
