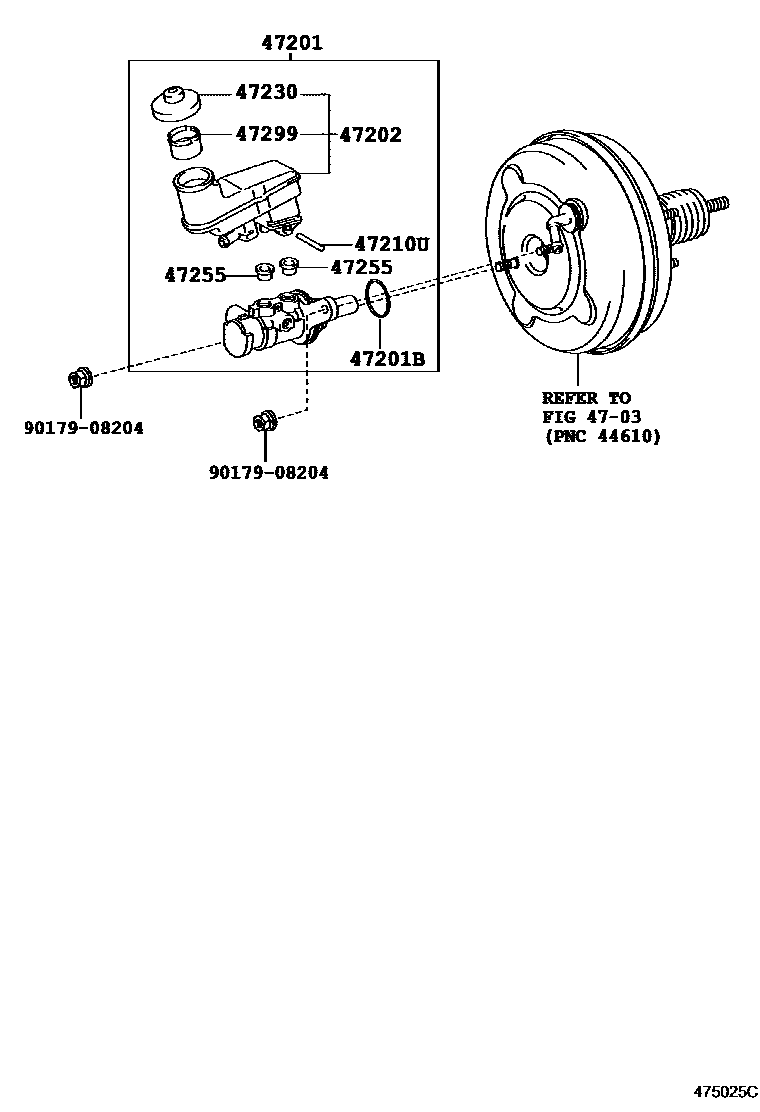

Toyota CAMRY 制动总泵 — Figure 4702
Toyota CAMRY EPC diagram 4702, 制动总泵, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-33500 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH001 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-33090 |
| 47210U | Direct sales (for brake master cylinder) | 90015-AE401 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-33071 · 47230-52030 |
| 47255 | Master pump reservoir seal | 90015-AT001 |
| 47299 | Brake master cylinder reservoir filter | 47299-52110 |
