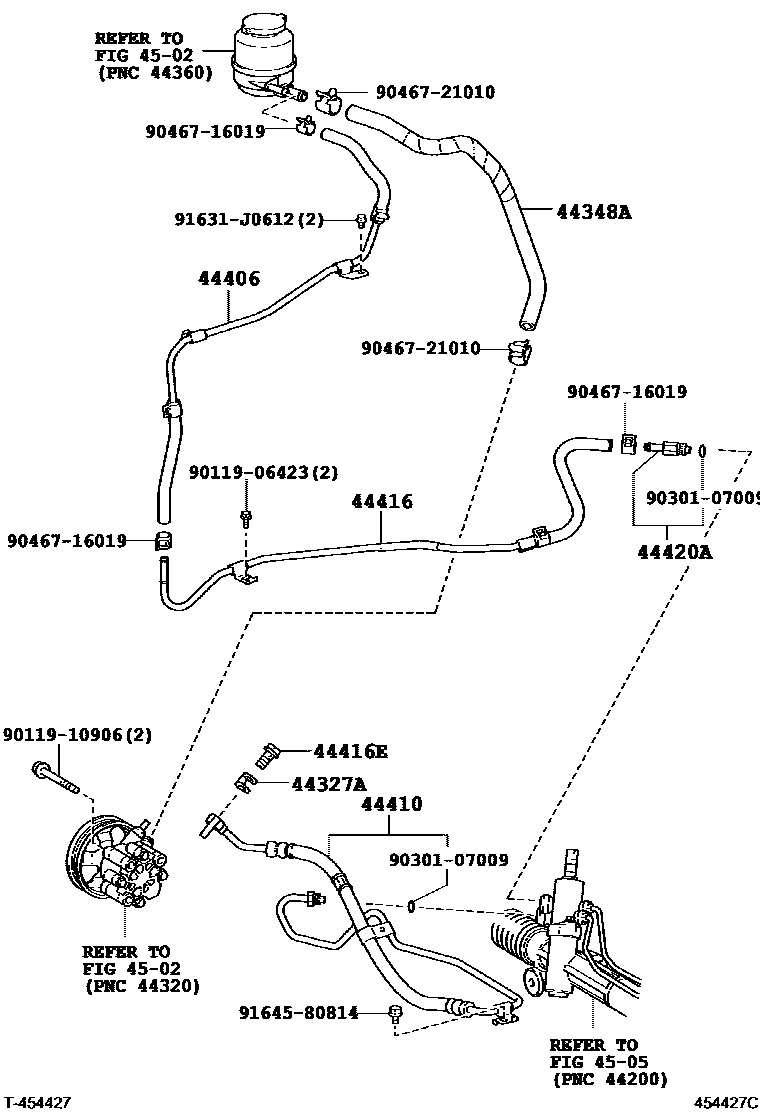

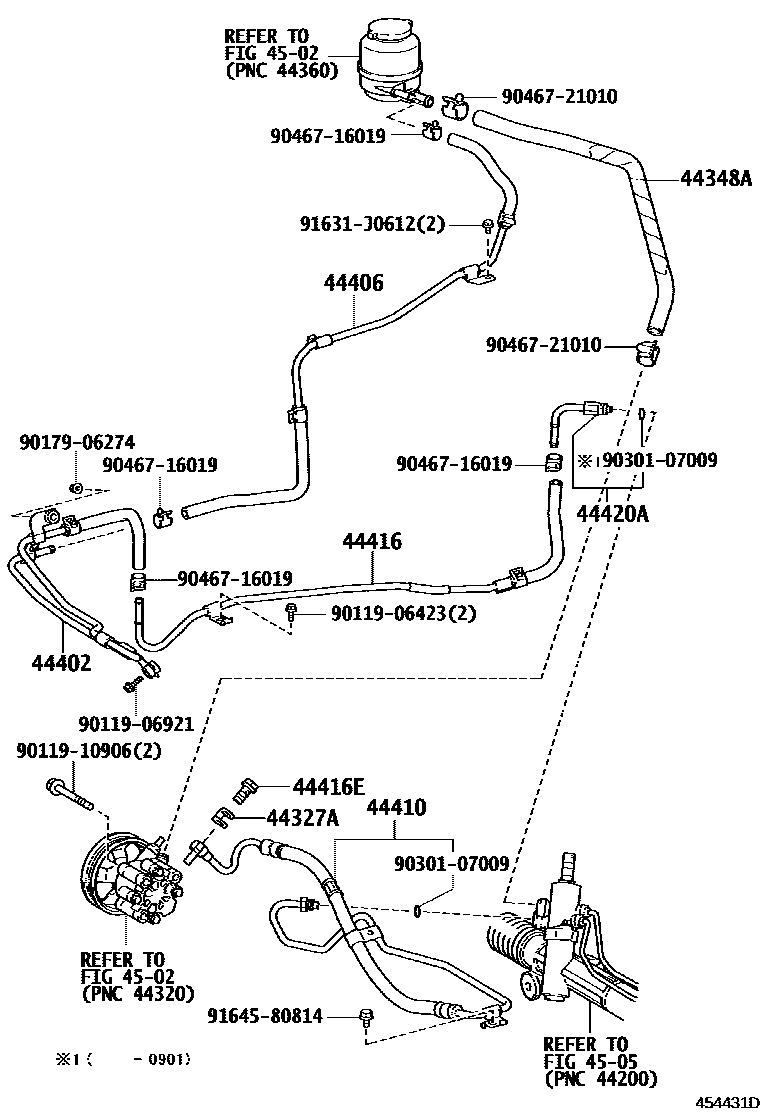

Toyota CAMRY 动力转向配管 — Figure 4503
Toyota CAMRY EPC diagram 4503, 动力转向配管, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-30030 |
| 44348A | No. 1 hose (tank to pump) | 44348-33190 · 44348-33230 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-33110 · 44402-33111 · 44402-33112 |
| 44406 | Oil return pipe sub-assembly | 44406-33110 · 44406-33120 · 44406-33121 |
| 44410 | Pressure supply pipe assembly | 44410-33200 · 44410-33201 · 44410-33202 · 44410-33220 · 44410-33221 · 44410-33222 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-33160 · 44416-33161 · 44416-33180 · 44416-33181 |
| 44416E | Joint bolt (for oil return pipe) | 96341-41603 |
| 44420A | Oil return pipe assembly | 44420-17010 · 44420-33020 |
