Toyota CAMRY 燃油喷射系统 — Figure 2211

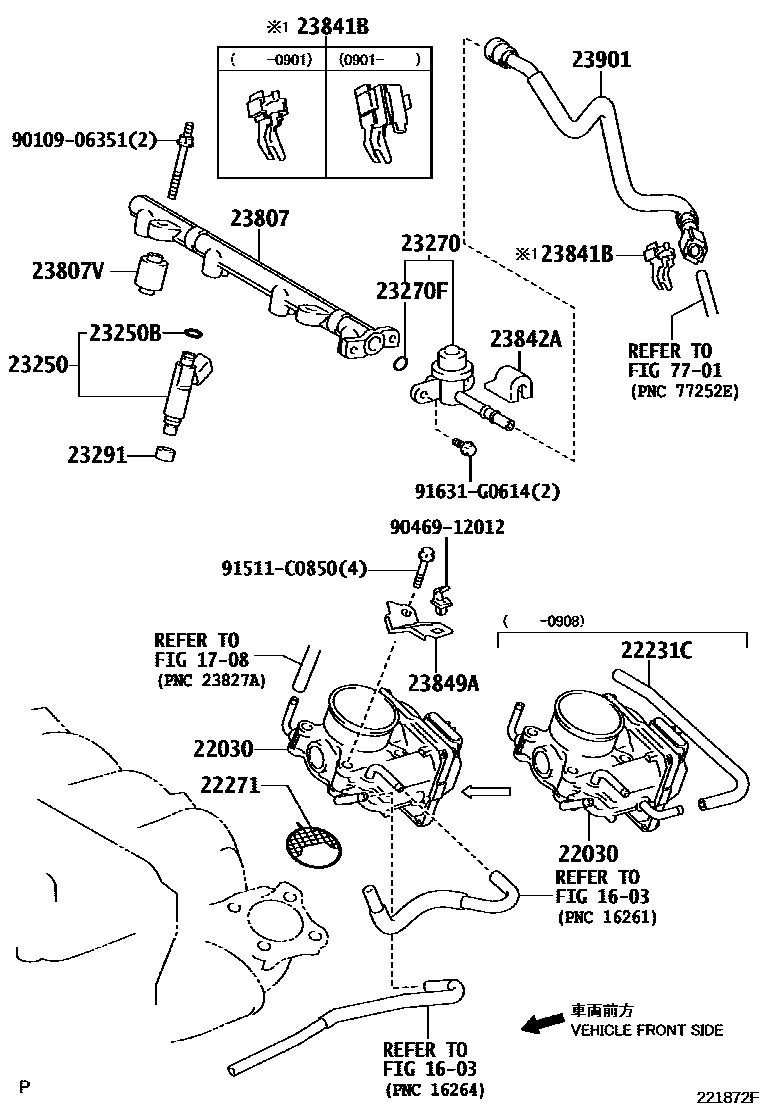

Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-28070 · 22030-28071 |
| 22231C | No. 1 throttle body hose | 22231-28060 |
| 22271 | Throttle body gasket | 22271-75031 |
| 23250 | Fuel injector assembly | 23209-0H060 · 23209-28080 |
| 23250B | O-ring (for fuel injector) | 90301-07024 · 90301-07037 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-28050 · 23270-28051 · 23270-28052 |
| 23270F | O-ring (for pulsation damper) | 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-41010 |
| 23807 | Oil pipe sub-assembly | 23814-28031 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08053 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-21050 · 23841-28010 · 23841-31070 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-28010 |
| 23849A | Fuel pipe bracket | 23849-28050 |
| 23901 | Fuel pipe sub-assembly | 23901-28320 · 23901-28350 |
