Toyota CAMRY 点火线圈和火花塞 — Figure 1901

Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞, with 1 images and 2 PNC and OE references.

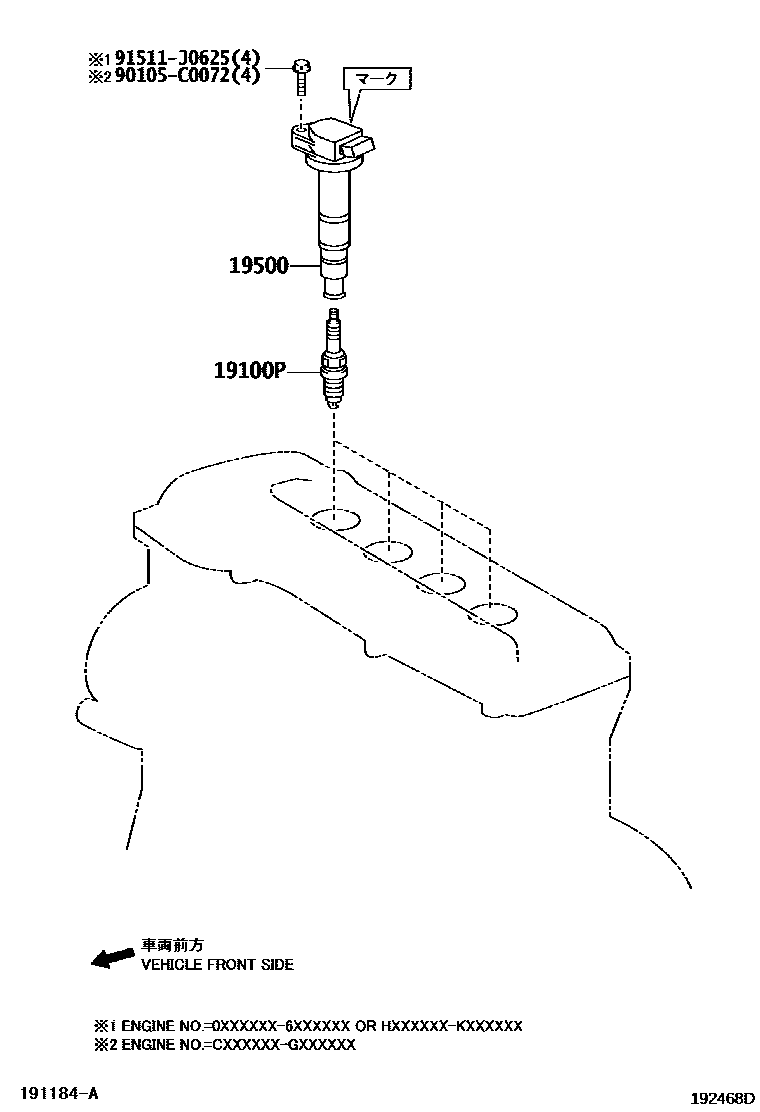

Toyota CAMRY 点火线圈和火花塞 EPC diagram — 192468D
点火线圈和火花塞 — 192468D (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01237 · 90919-T1007
19500Ignition coil assembly90919-02244 · 90919-02248 · 90919-02260 · 90919-02266 · 90919-C2006 · 90919-T2005
