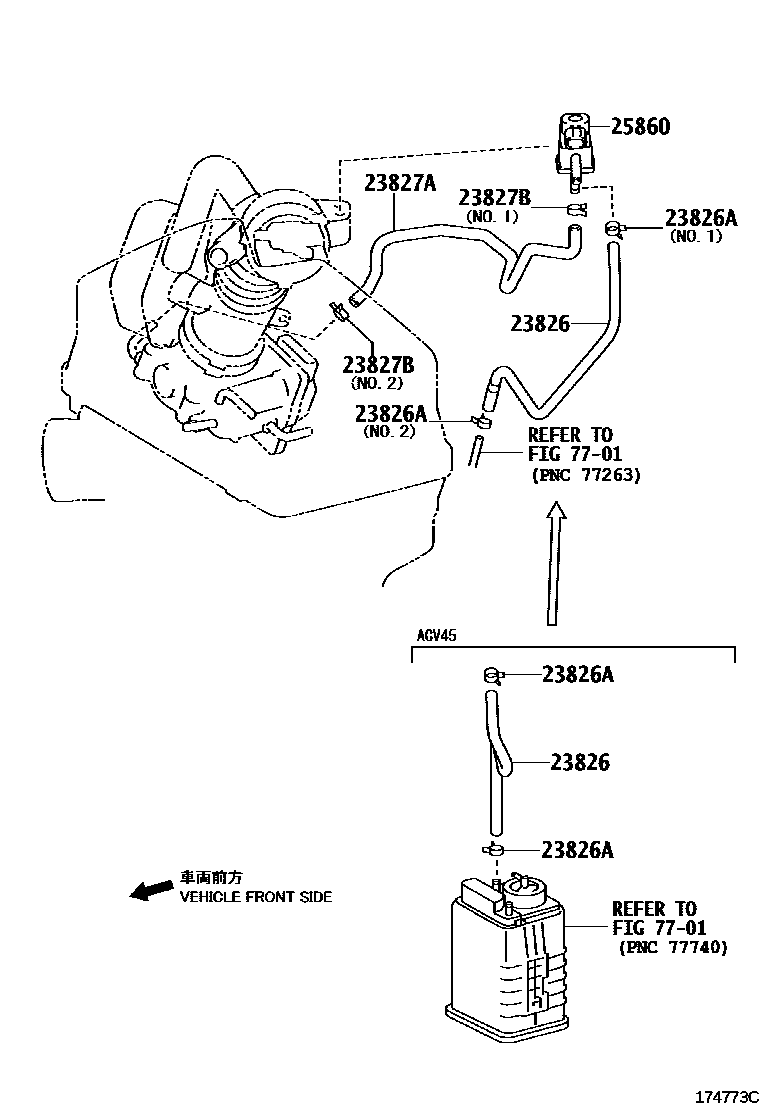

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23826 | No. 1 fuel vapor supply hose | 23826-28300 · 23826-28310 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 96132-51300 |
| 23827A | No. 2 fuel vapor supply hose | 23826-28290 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-11003 · 96132-51000 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-28160 |
