Toyota CAMRY Camshaft & Valve — Figure 1302

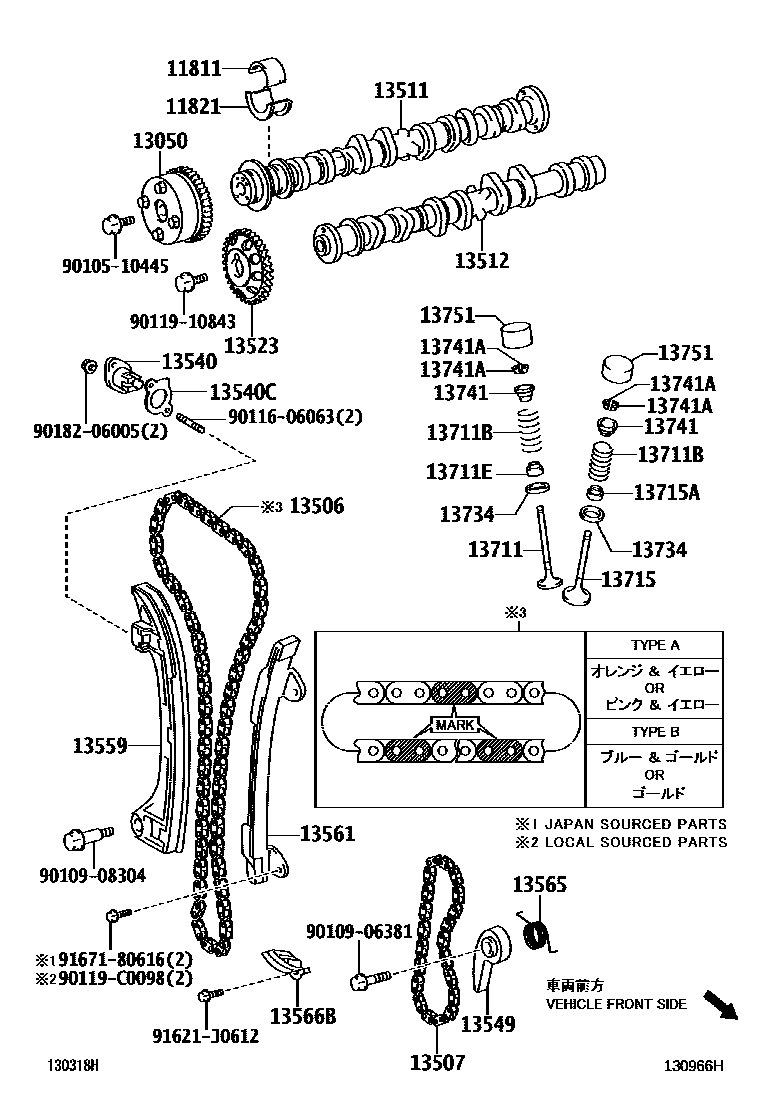

Toyota CAMRY EPC diagram 1302, Camshaft & Valve, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-0H030 · 13050-28021 |
| 13506 | Chain sub-assembly | 13506-0H031 · 13506-28011 · 13506-28020 |
| 13507 | No. 2 chain sub-assembly | 13507-0H020 · 13507-28010 |
| 13511 | camshaft | 13501-0H040 · 13501-28060 |
| 13512 | Camshaft No. 2 | 13502-0H030 · 13502-28030 |
| 13523 | Camshaft timing gear or sprocket | 13523-22020 |
| 13540 | No. 1 chain tensioner assembly | 13540-0H030 · 13540-28010 |
| 13540C | Pad (for chain tensioner) | 13552-0H020 · 13552-28010 |
| 13549 | chain tensioner pressure plate | 13549-0H010 · 13549-28012 |
| 13559 | chain tensioner guide plate | 13559-0H030 · 13559-28010 |
| 13561 | No. 1 chain shock absorber | 13561-0H030 · 13561-28010 |
| 13565 | chain damper spring | 13565-0H010 · 13565-28012 |
| 13566B | Timing chain guide plate | 13566-28010 |
| 13711 | intake valve | 13711-0H030 · 13711-28010 |
| 13711B | Compression spring (for inner side) | 90501-28038 · 90501-C0010 |
| 13711E | Intake valve stem oil seal | 90913-02101 · 90913-T2001 |
| 13715 | exhaust valve | 13715-0H040 · 13715-28040 |
| 13715A | Exhaust valve stem oil seal | 90913-02112 · 90913-T2003 |
| 13734 | Valve spring seat | 13734-74010 |
| 13741 | Valve spring seat ring | 13741-22021 |
| 13741A | Valve spring seat lock plate | 90913-03028 |
| 13751 | valve lifter | 13751-46030 · 13751-46040 · 13751-46050 · 13751-46060 · 13751-46070 · 13751-46080 · 13751-46090 · 13751-46100 · 13751-46110 · 13751-46120 · 13751-46130 · 13751-46140 · 13751-46150 · 13751-46160 · 13751-46170 · 13751-46180 · 13751-46190 · 13751-46200 · 13751-46210 · 13751-46220 · 13751-46230 · 13751-46240 · 13751-46250 · 13751-46260 · 13751-46270 · 13751-46280 · 13751-46290 · 13751-46300 · 13751-46310 · 13751-46320 · 13751-46330 · 13751-46340 · 13751-46350 · 13751-46360 · 13751-46370 |
