Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106

Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 4 PNC and OE references.

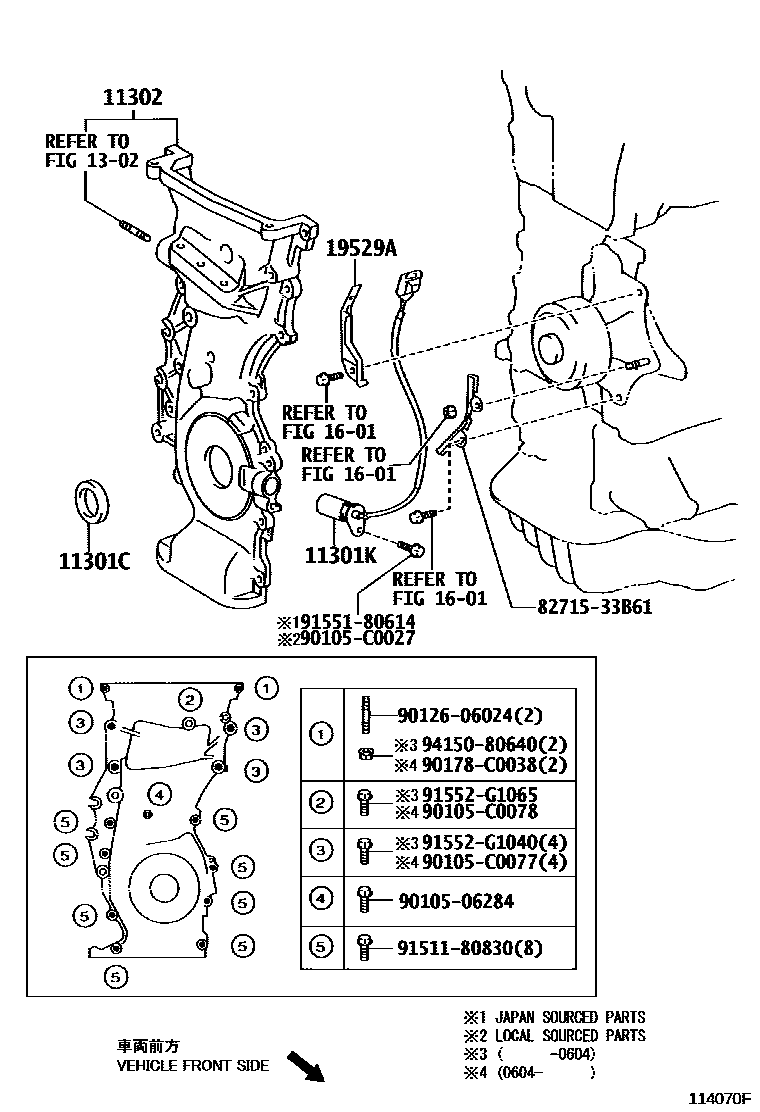

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — 114070F
Timing Gear Cover & Rear End Plate — 114070F (200601 – 201101)

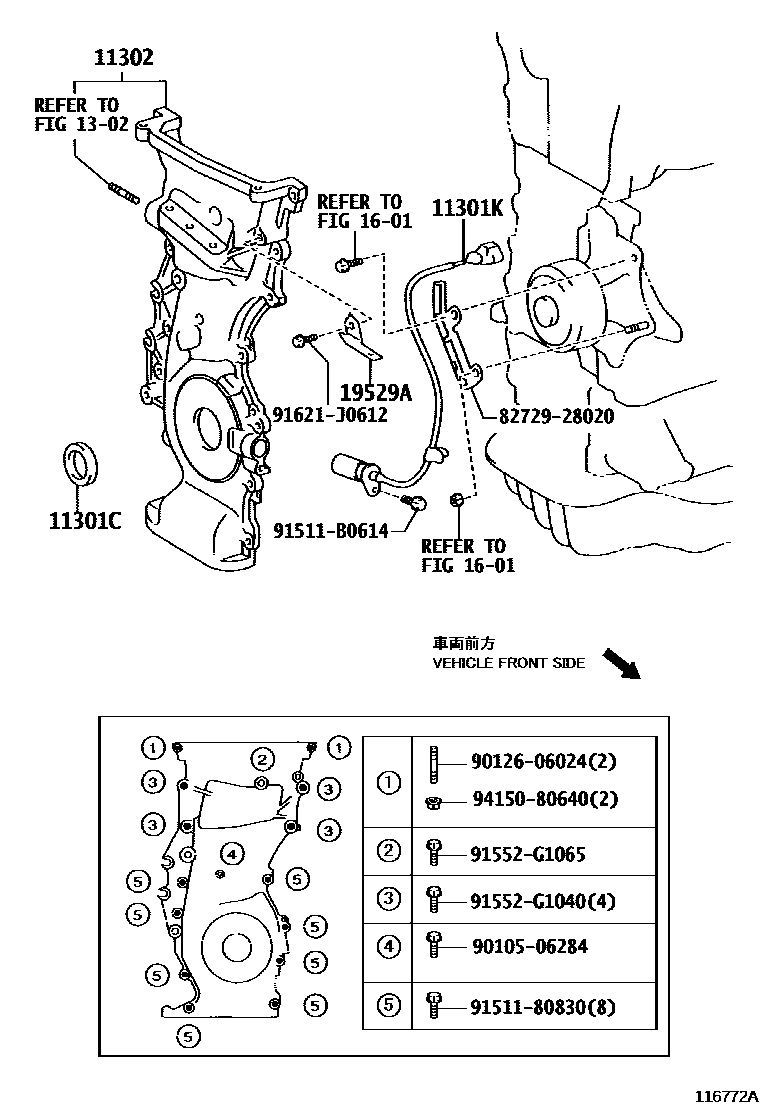

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — 116772A
Timing Gear Cover & Rear End Plate — 116772A (201101 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-38089 · 90311-T0024
11301Kcrankshaft position sensor90919-05047 · 90919-05067
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-0H060 · 11310-28071
19529Acard holder19529-28010 · 19529-28050
