Toyota CAMRY Cylinder Block — Figure 1105

Toyota CAMRY EPC diagram 1105, Cylinder Block, with 2 images and 26 PNC and OE references.

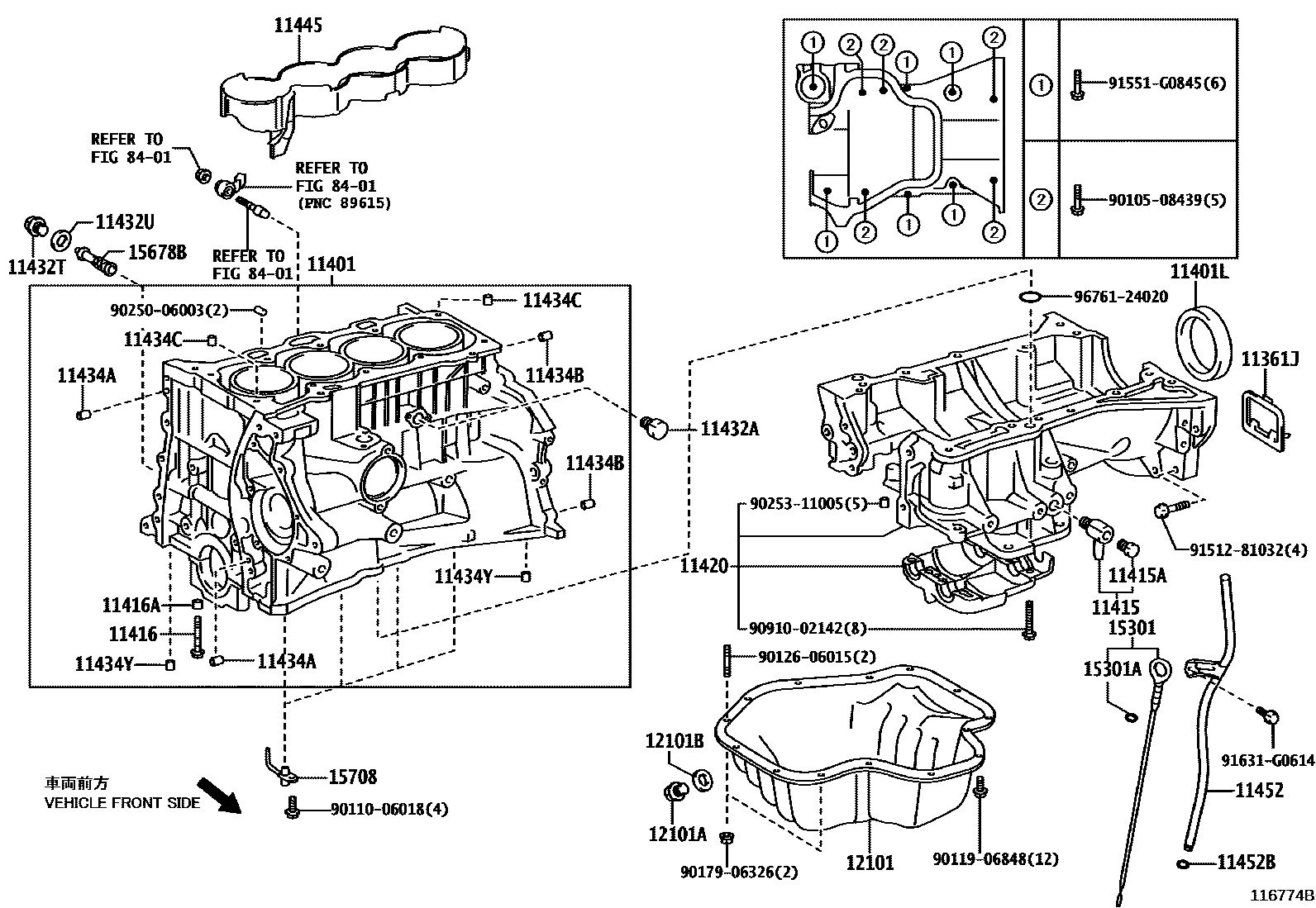

Toyota CAMRY Cylinder Block EPC diagram — 116774B — Cylinder Block — 116774B (201101 – 999999)

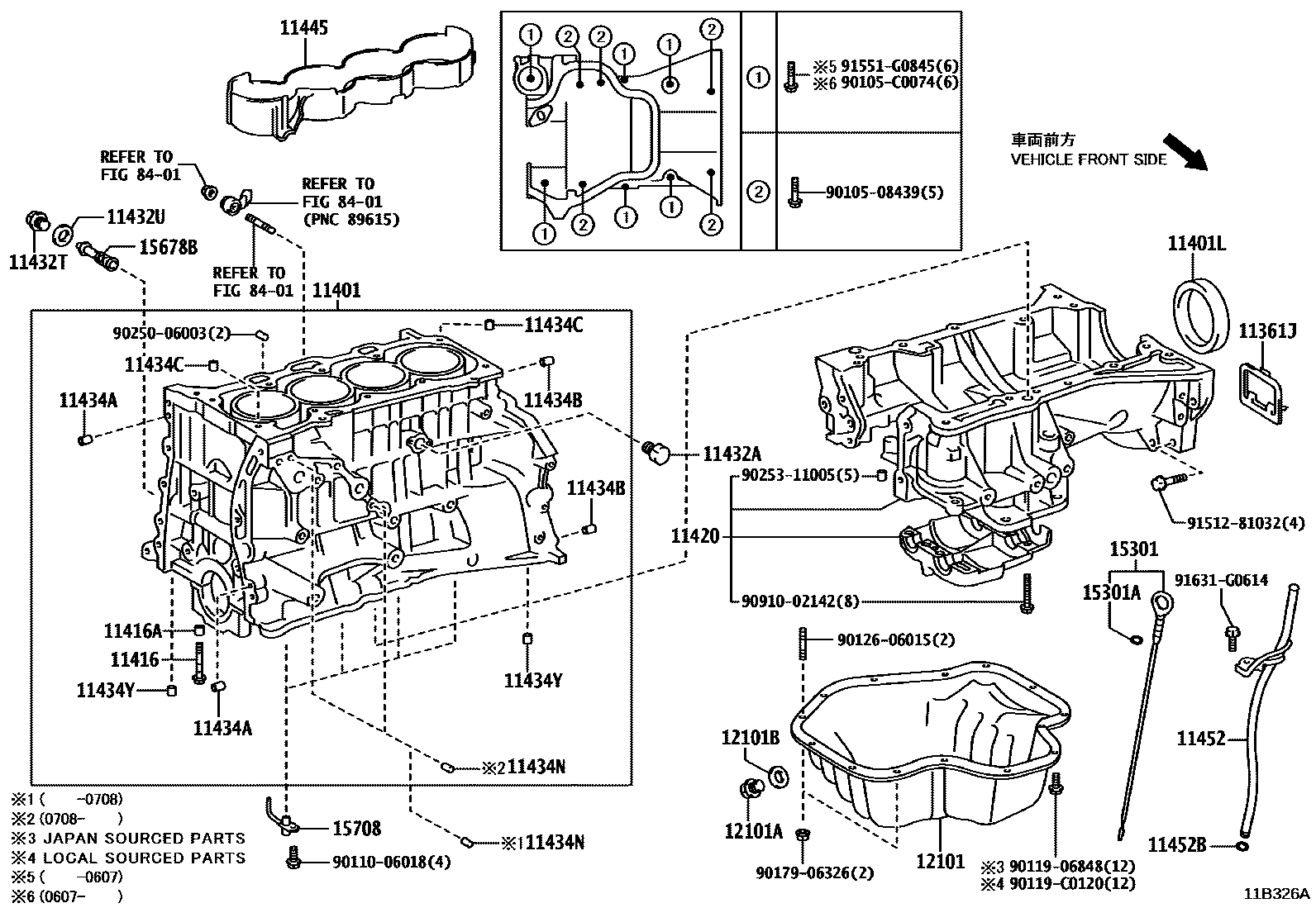

Toyota CAMRY Cylinder Block EPC diagram — 11B326A — Cylinder Block — 11B326A (200601 – 201101)

PNC and OE references

PNC	Part name	OE numbers
11361J	Flywheel housing bottom cover	11361-28010
11401	Cylinder block sub-assembly	11410-09220 · 11410-09221 · 11410-29345
11401L	SEAL, ENGINE REAR OIL	90311-89003 · 90311-C0001
11415	Water release switch sub-assembly (for cylinder block)	90910-09120
11415A	Water drain switch screw plug (for cylinder block)	90910-09087
11416	Bolts (for crankshaft bearing cap assembly)	90910-02124
11416A	Ring pin (for crankshaft bearing cap assembly)	90253-13017
11420	Reinforce crankcase assembly	11420-0H040 · 11420-0H050 · 11420-0H051 · 11420-28020 · 11420-28021
11432A	No. 1 headed tapered thread plug	90345-52001
11432T	No. 3 headed straight thread plug (for cylinder block)	90341-14013
11432U	No. 1 straight thread plug gasket (for cylinder block)	90430-14011 · 90430-C0004
11434A	Direct sales (for timing gear cover assembly)	90250-08120
11434B	Direct sales (for clutch housing assembly)	90250-10113
11434C	Direct sales (for cylinder head components)	90253-14003
11434N	Direct sales (for water inlet housing)	90250-06003
11434Y	Direct sales (for oil pan)	90250-08074
11445	Cylinder block water jacket spacer	11445-0H020 · 11445-28020
11452	Engine oil level gauge guide	11452-28040 · 11452-28060
11452B	O-ring (for oil level gauge guide)	96721-19010
12101	Oil pan sub-assembly	12101-0H060 · 12101-28060
12101A	Screw plug (for draining oil from the oil pan)	90341-12012
12101B	Gasket (for oil pan drain plug)	90430-12031 · 90430-C0005
15301	Engine oil level scoring assembly	15301-0H050 · 15301-28030
15301A	O-ring (for engine oil level gauge)	96741-19005
15678B	Oil control valve filter	15678-28010
15708	No. 1 oil nozzle sub-assembly	15708-28010 · 15708-28011
