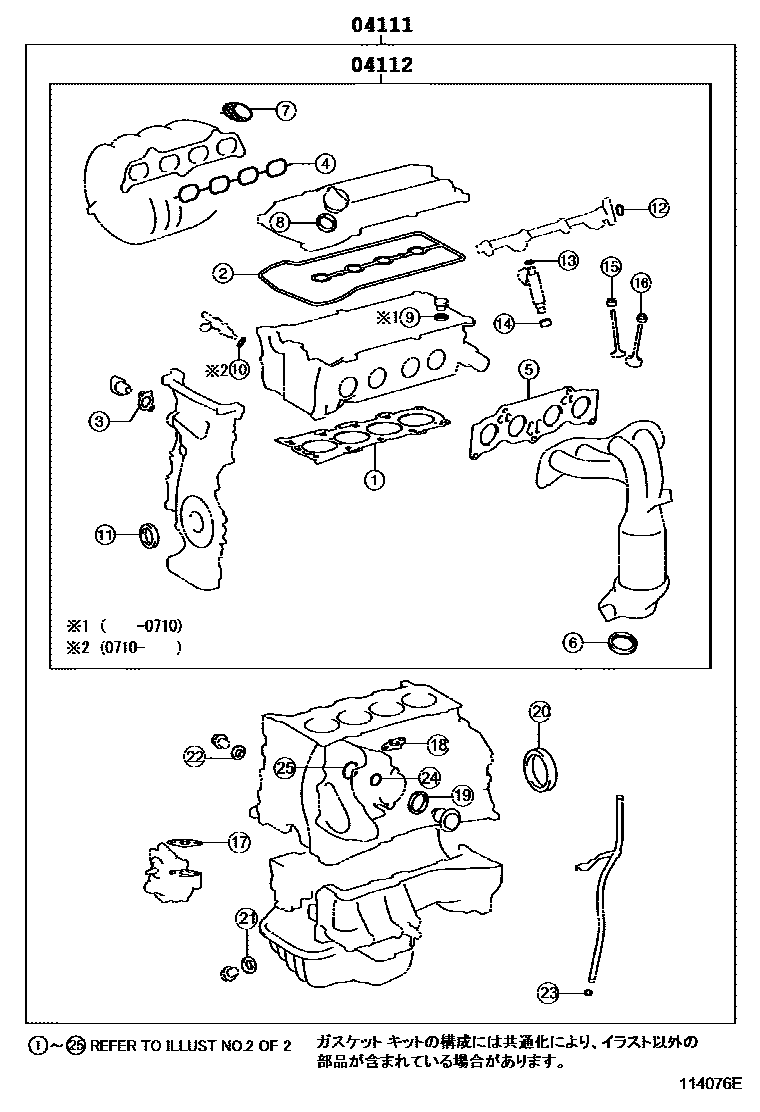

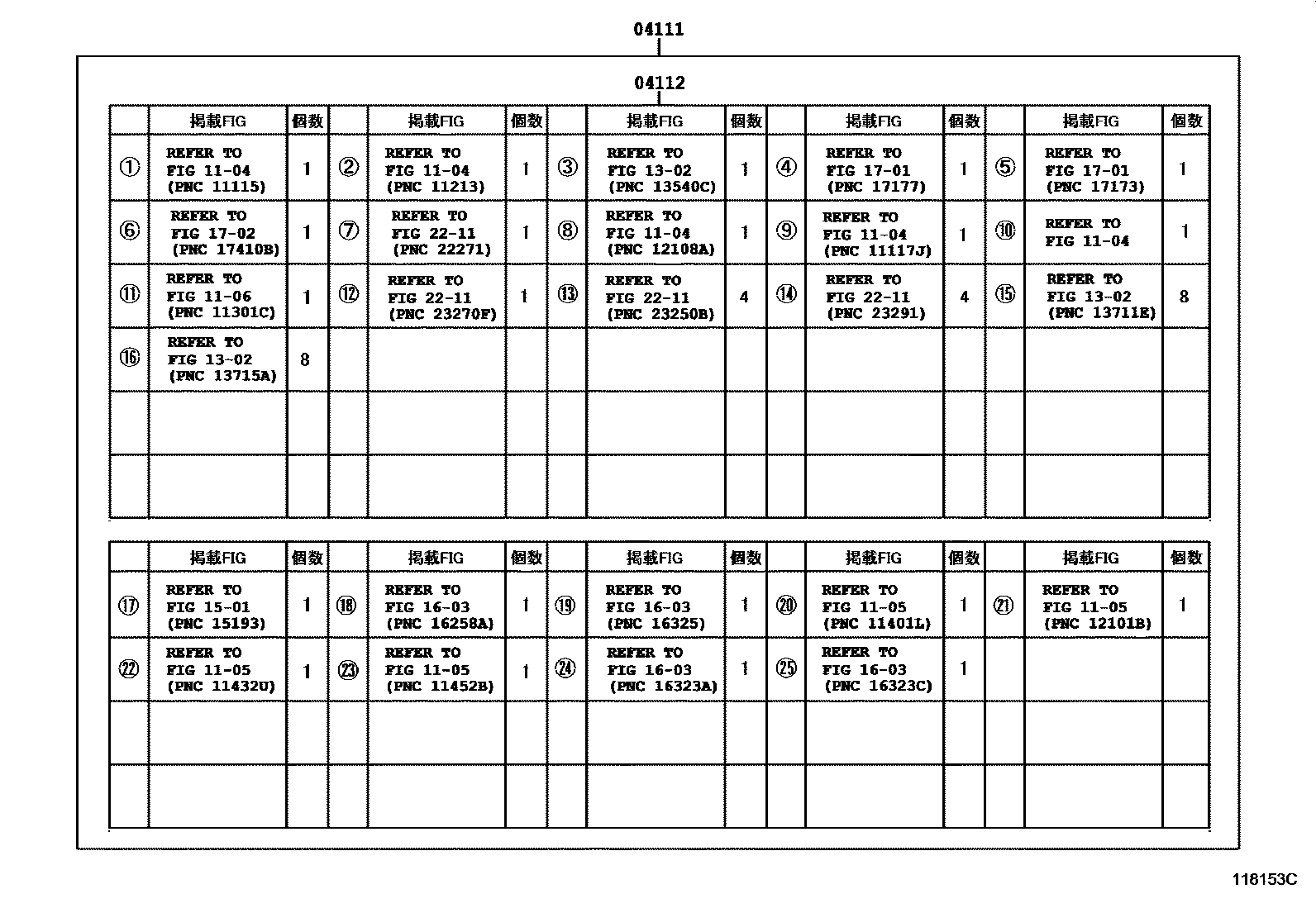

Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103
Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-0H220 · 04111-0H301 · 04111-0H302 · 04111-28823 |
| 04112 | Engine valve grinding pad assembly | 04112-0H281 · 04112-0H282 · 04112-28571 · 04112-28573 |
