Toyota CAMRY 空气净化器或离子发生器 — Figure 8724

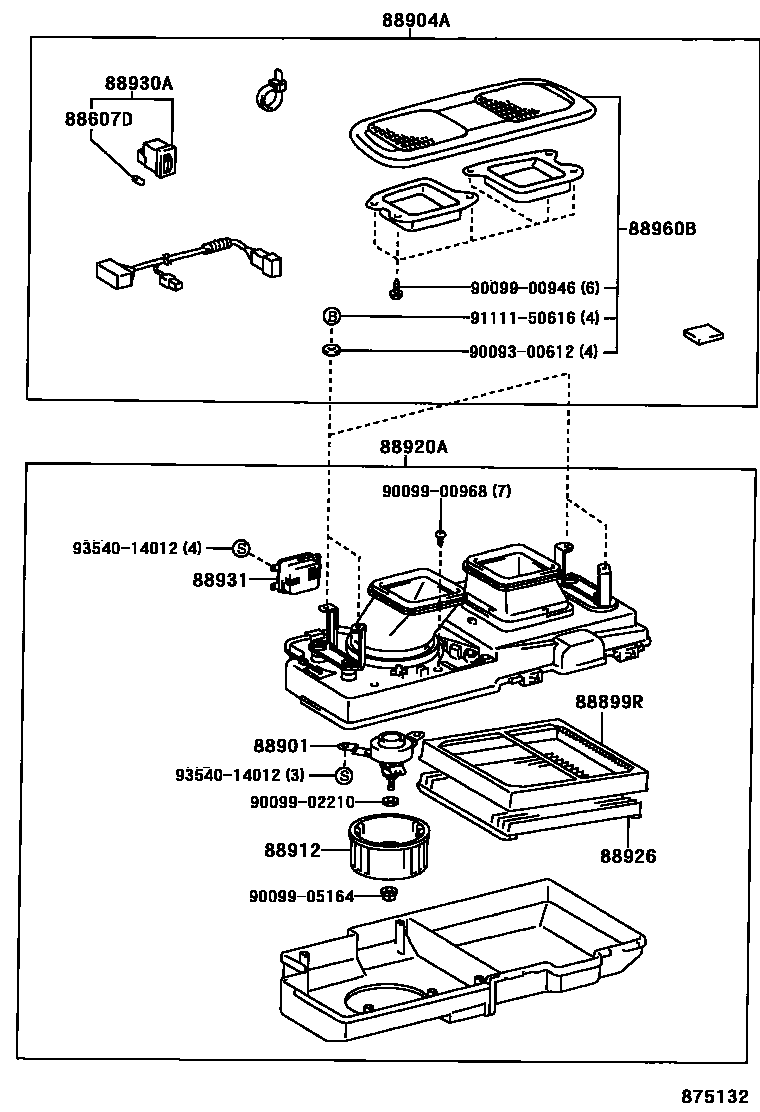

Toyota CAMRY EPC diagram 8724, 空气净化器或离子发生器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88607D | Air purifier switch light sub-assembly | 90010-03005 |
| 88899R | air purifier frame | 88899-32020 |
| 88901 | Air purifier motor sub-assembly | 88901-32020 |
| 88912 | air purifier fan | 88912-32140 |
| 88920A | Air purifier assembly | 88920-33070 |
| 88926 | air purifier filter | 88926-32030 |
| 88930A | Air purifier switch assembly | 88930-22390 |
| 88931 | smoke sensor | 88931-50030 |
