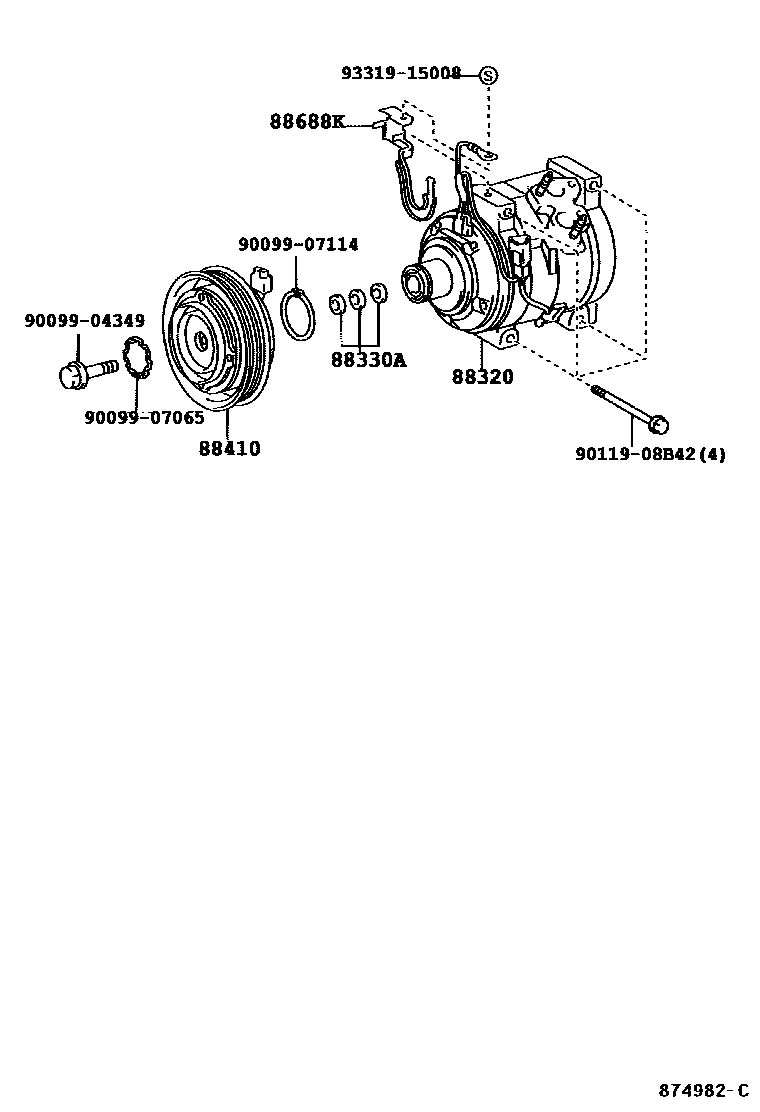

Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719
Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88320 | Cooler Compressor Assembly | 88320-48080 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88410 | Magnetic Clutch Assembly | 88410-42040 · 88410-42080 |
| 88688K | Cooler compressor bracket | 88688-48070 |
