Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

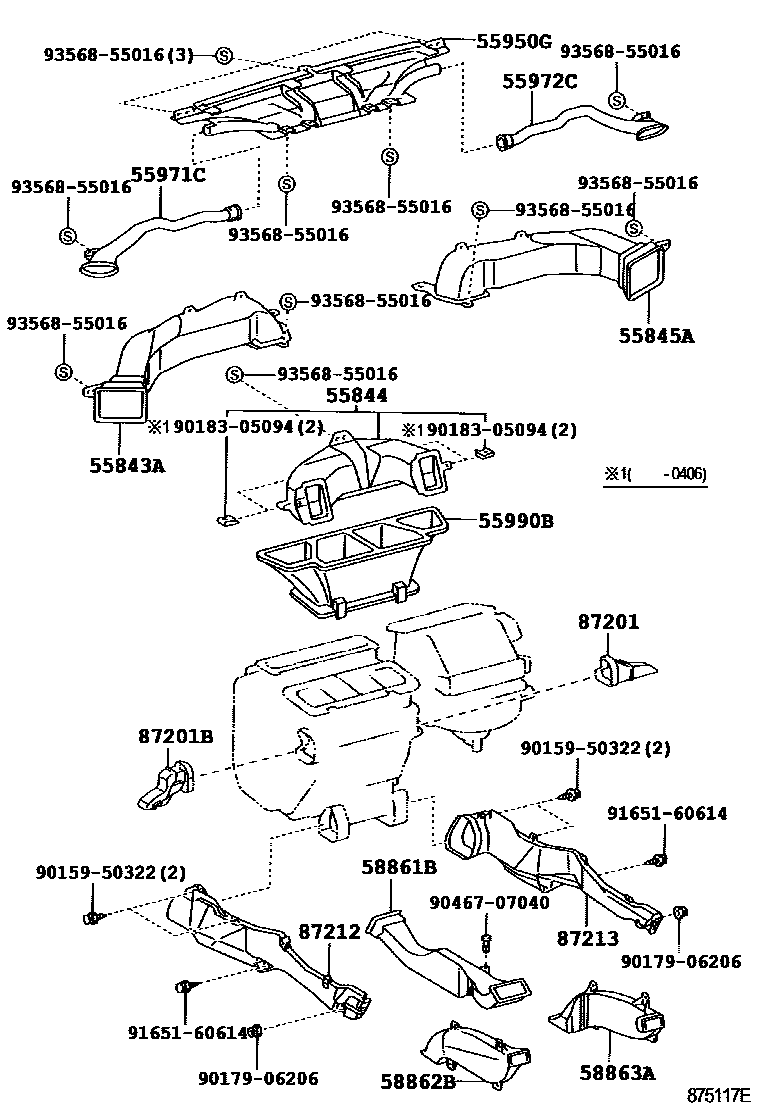

| 55843A | Air duct No. 1 from heater to air register | 55843-33100 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-33110 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-33100 |
| 55900B | air conditioning control light bulb | 90010-03054 · 90010-03055 · 90010-03056 |

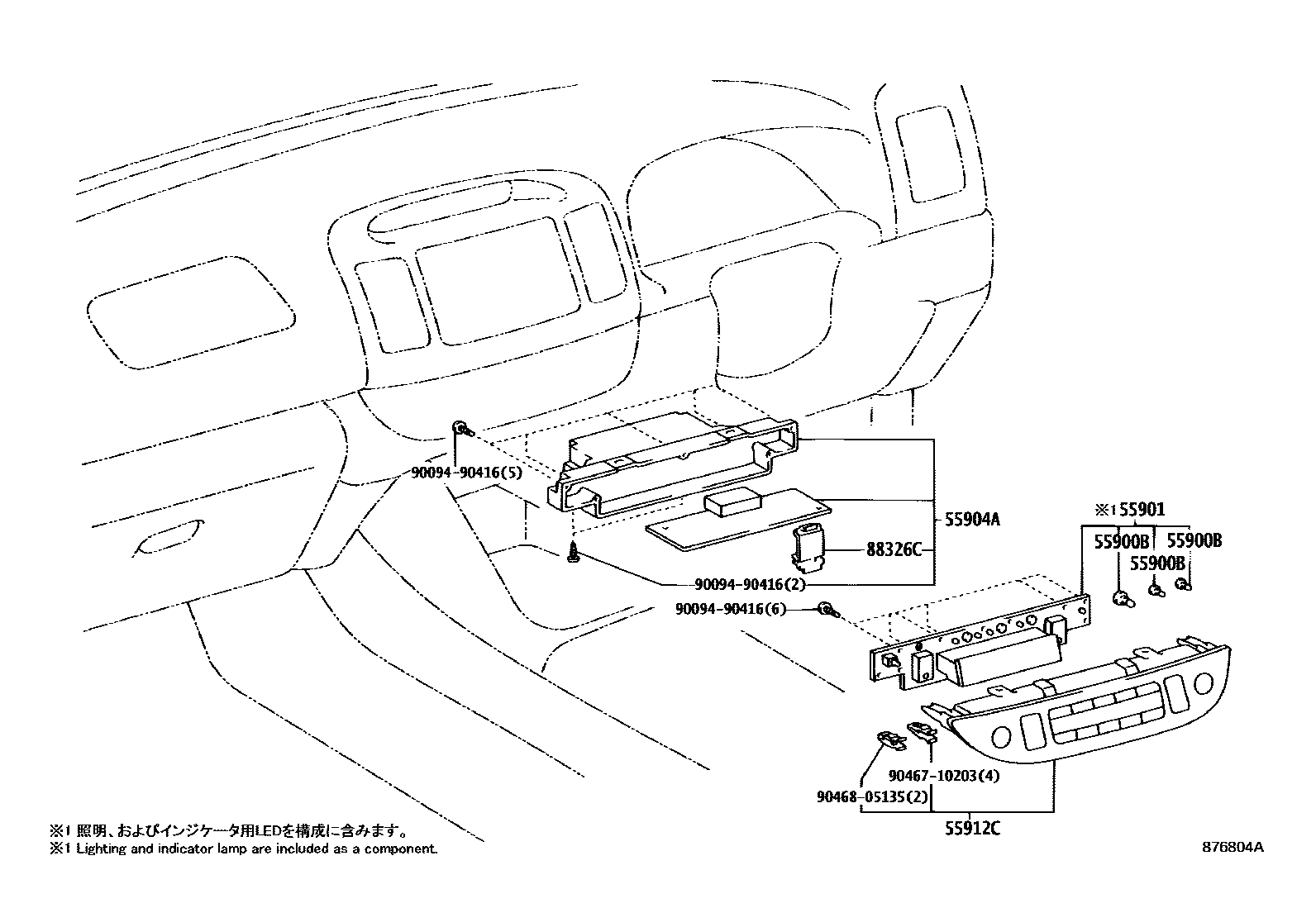

| 55901 | Heater controller base sub-assembly | 55901-33030 |
| 55904A | Heater control housing sub-assembly | 55904-33110 |
| 55912C | heater control housing | 55912-33100 · 55912-33190 · 55912-33330 |
| 55950G | Defroster nozzle assembly | 55950-33050 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-33070 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-33070 |
| 55990B | Lower defroster nozzle assembly | 55990-33020 |
| 58861B | Air duct No. 1 for armrest box | 58861-33010 |
| 58862B | Air duct No. 2 for armrest box | 58862-33020 |
| 58863A | Armrest box No. 3 air duct | 58863-33020 |
| 87201 | No. 1 air duct sub-assembly | 87201-33250 |
| 87201B | No. 2 air duct sub-assembly | 87201-33260 |
| 87212 | No. 1 rear air duct | 87212-33030 |
| 87213 | No. 2 rear air duct | 87213-33040 |
| 88326C | Cover plate | 88326-63010 |

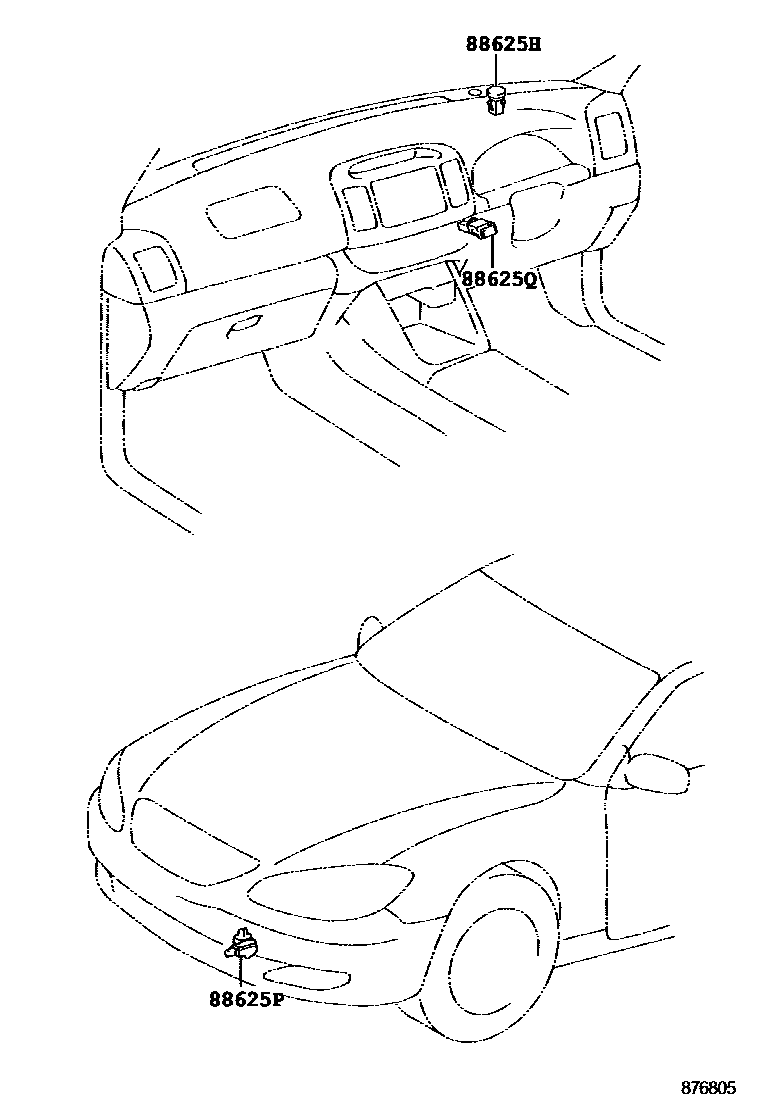

| 88625H | Cooler thermistor (sunlight sensor) | 88625-33150 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
