Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

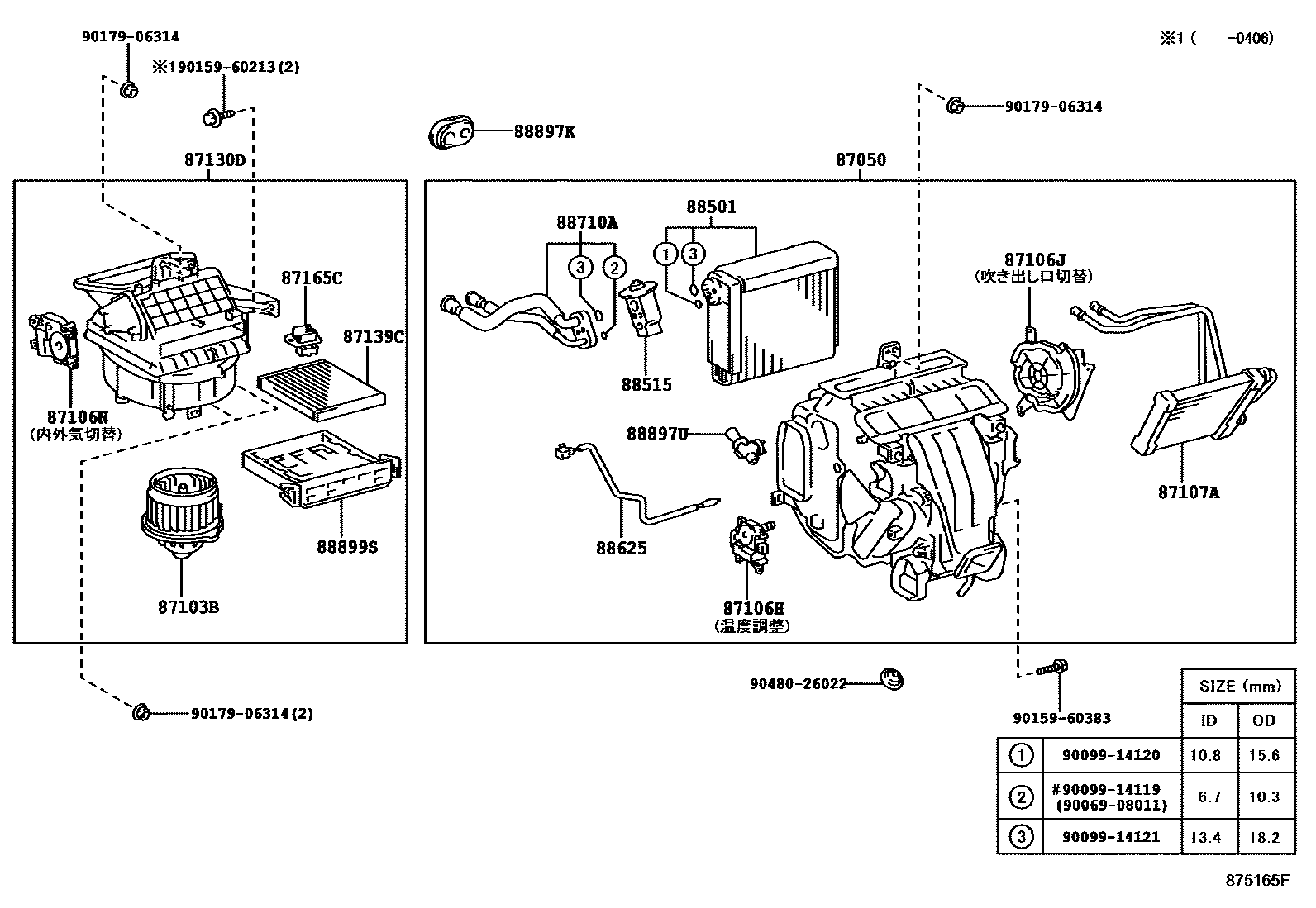

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-33500 · 87050-33501 · 87050-33502 |
| 87103B | Blower motor sub-assembly with fan | 87103-33071 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-41051 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-33230 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-33200 |
| 87107A | Heater radiator device sub-assembly | 87107-33091 |
| 87130D | Blower assembly | 87130-33180 |
| 87139C | air purification filter | 87139-33010 · 87139-47020 |
| 87165C | Blower motor control device | 87165-13010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-41020 |
| 88515 | Cooler expansion valve | 88515-28160 · 88515-48040 |
| 88625 | Cooler No. 1 Thermistor | 88625-17130 · 88625-33170 |
| 88710A | Air conditioning pipe assembly | 88710-33270 |
| 88897K | Seals (for cooler tubes) | 88897-33020 |
| 88897U | aspirator tube | 88897-12210 |
| 88899S | front cooler frame | 88899-41010 |
