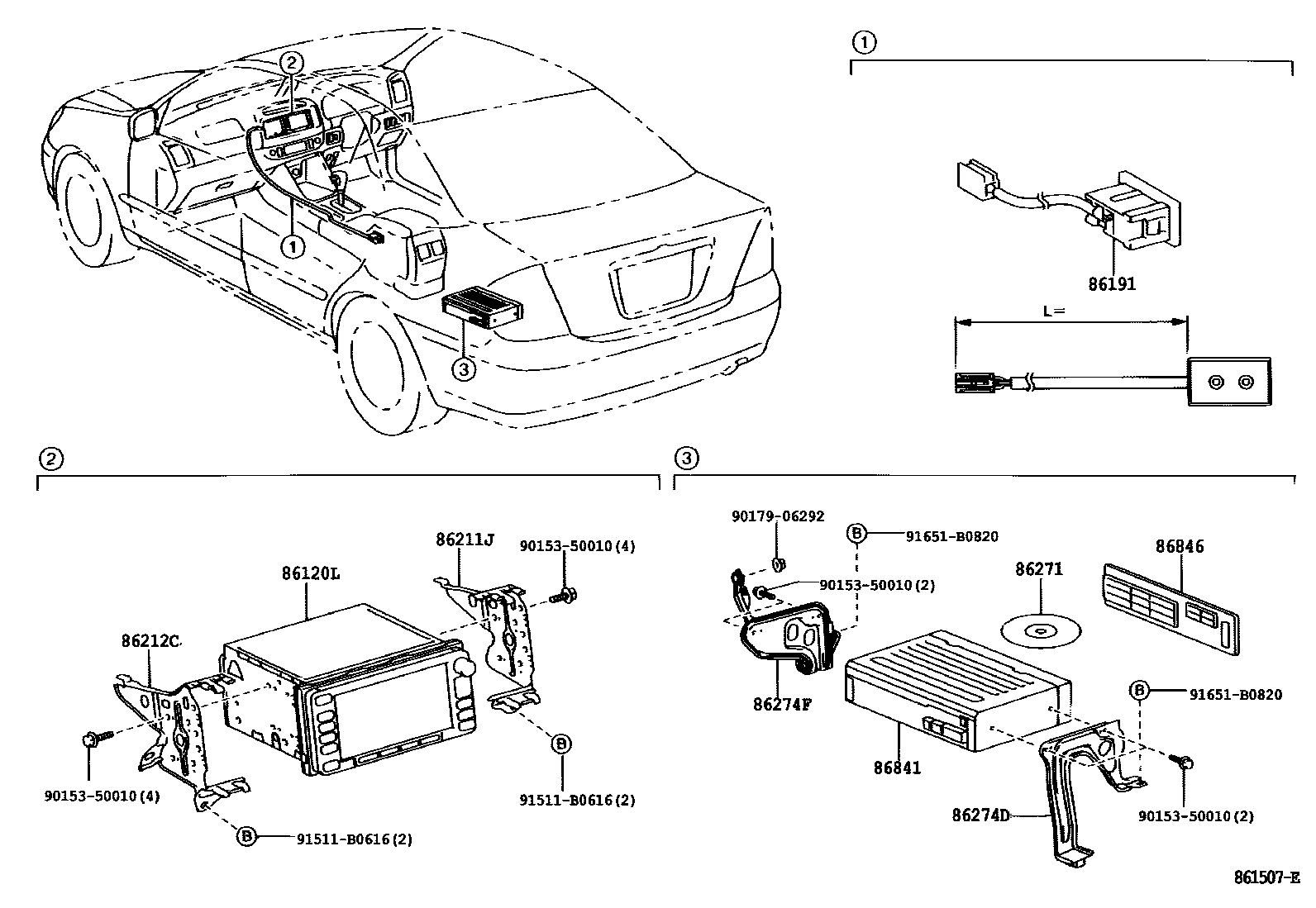

Toyota CAMRY 导航和前监视器显示屏 — Figure 8603
Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-13111 · 86120-33410 · 86120-33411 |
| 86191 | Video (Video Splicer) Terminal | 86191-33010 · 86191-33020 |
| 86211J | No. 1 radio bracket | 86211-33150 |
| 86212C | No. 2 radio bracket | 86212-33150 |
| 86271 | CD | 86271-44020 · 86271-52041 · 86271-52042 · 86271-52043 · 86271-52044 · 86271-52045 |
| 86274D | CD player stand | 86274-33190 |
| 86274F | No. 2 CD player stand | 86274-33200 |
| 86841 | Navigation ECU | 86841-44010 · 86841-52020 |
| 86846 | Navigation ECU board | 86846-33020 |
