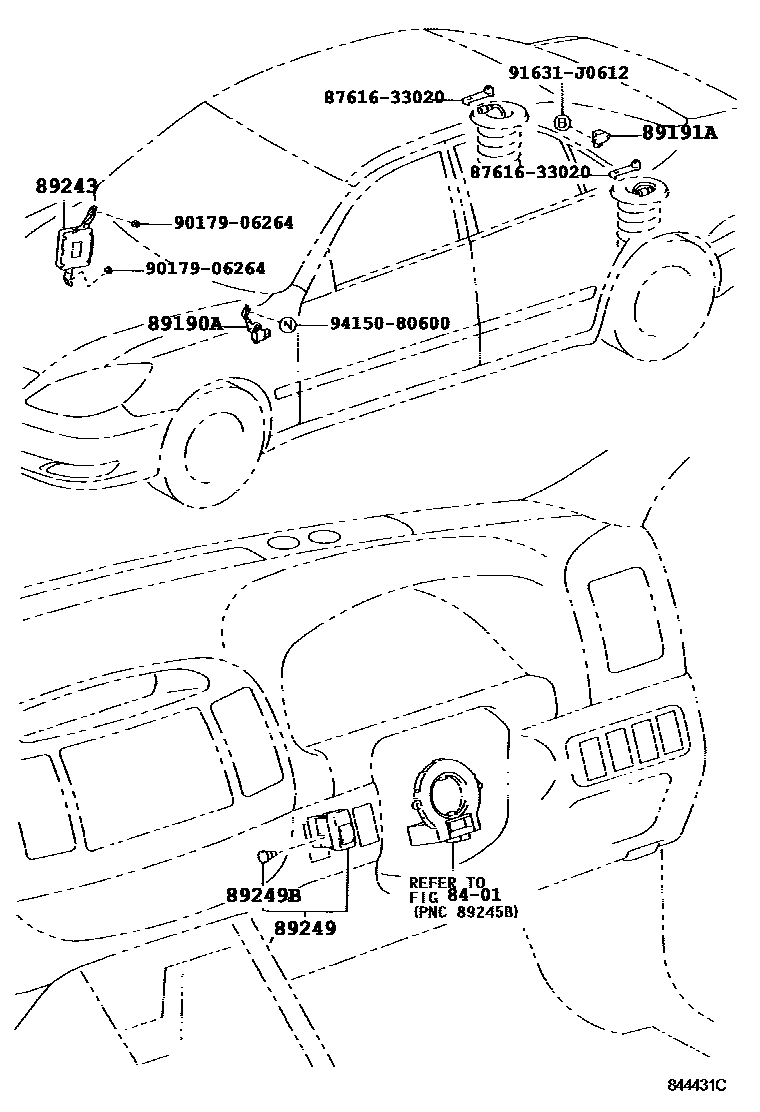

Toyota CAMRY 电子调节悬架 — Figure 8419
Toyota CAMRY EPC diagram 8419, 电子调节悬架, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89190A | Acceleration sensor assembly | 89190-33020 |
| 89191A | acceleration sensor | 89191-30020 |
| 89243 | Damper control ECU | 89243-33070 |
| 89249 | Damper control switch | 89249-33030 |
| 89249B | Damper control switch bulb | 90010-01061 |
