Toyota CAMRY ABS 和 VSC — Figure 8414

Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 1 images and 13 PNC and OE references.

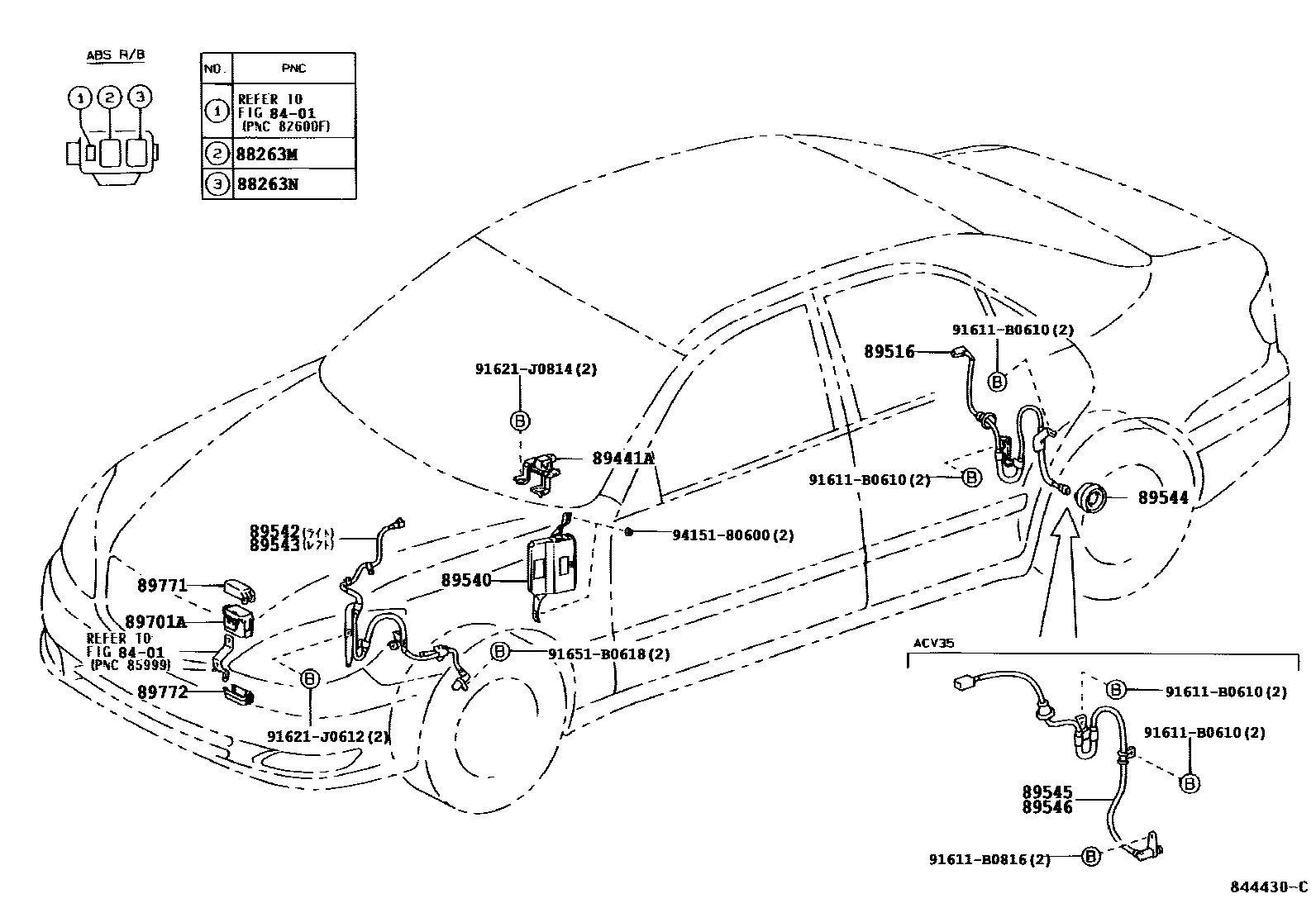

Toyota CAMRY ABS 和 VSC EPC diagram — 844430C
ABS 和 VSC — 844430C (200109 – 999999)

PNC and OE references

PNCPart nameOE numbers
88263MABS solenoid valve relay88263-32070
88263NABS motor relay88263-32070
89441Adeceleration sensor89440-33020
89516Anti-skid control sensor wiring harness89516-33010 · 89516-33020
89540Anti-skid control ECU assembly89540-33330 · 89540-33350
89542Right front wheel speed sensor89542-33070
89543Left front wheel speed sensor89543-33070
89544Anti-skid control sensor89544-48010
89545Right rear wheel speed sensor89545-33030
89546Left rear wheel speed sensor89546-33030
89701AABS relay box sub-assembly89701-12020
89771ABS relay box upper cover89771-33010
89772ABS relay box lower cover89772-12020
