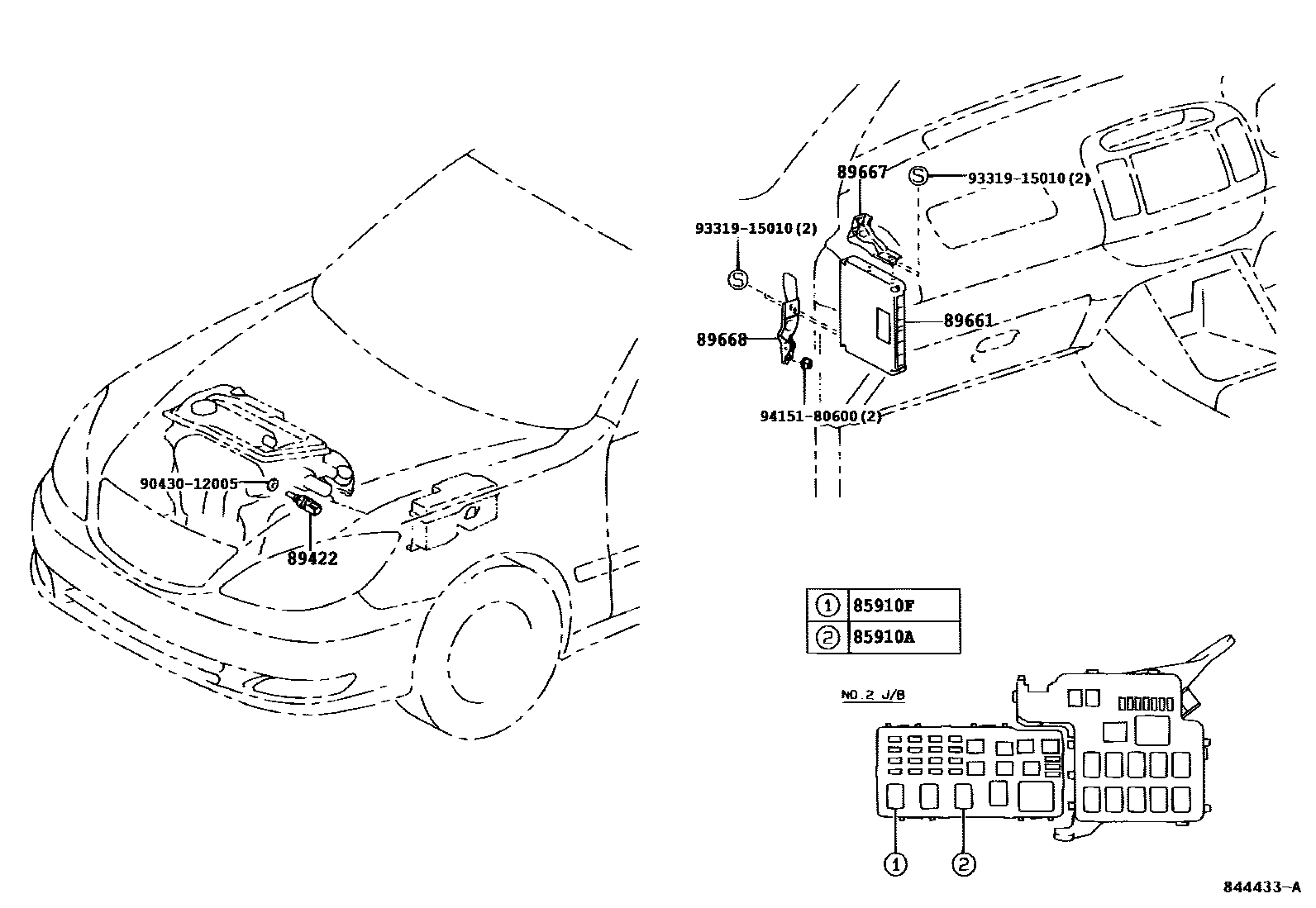

Toyota CAMRY 电子燃油喷射系统 — Figure 8404
Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02012 · 90987-02027 |
| 85910F | ECU relay (for EFI) | 90987-02012 · 90987-02027 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-06010 · 89422-16010 · 89422-33030 |
| 89661 | Engine control ECU | 89661-3T620 · 89661-3T630 · 89661-3T800 |
| 89667 | Engine control ECU bracket | 89667-33130 |
| 89668 | No. 2 engine control ECU bracket | 89668-33150 |
