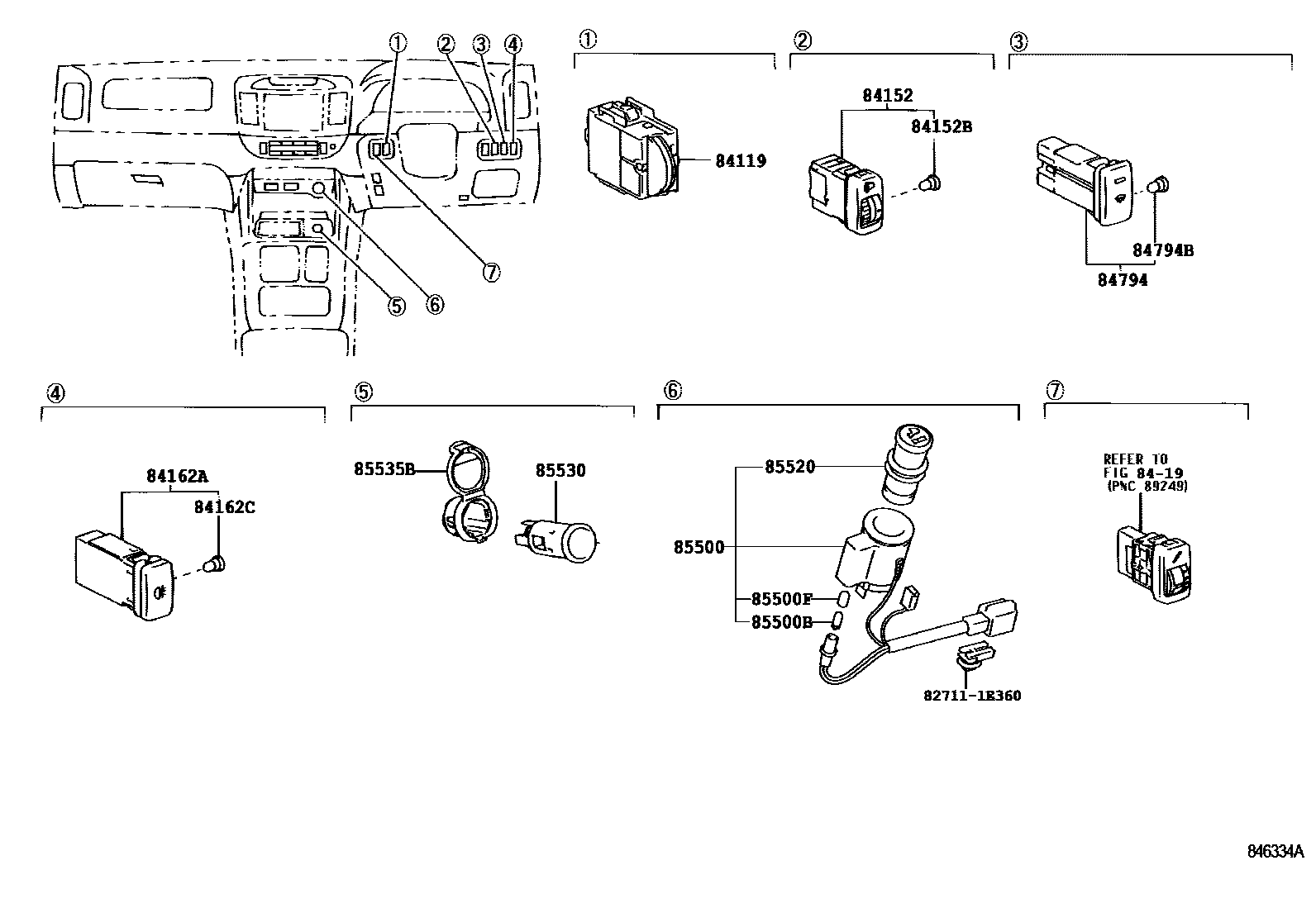

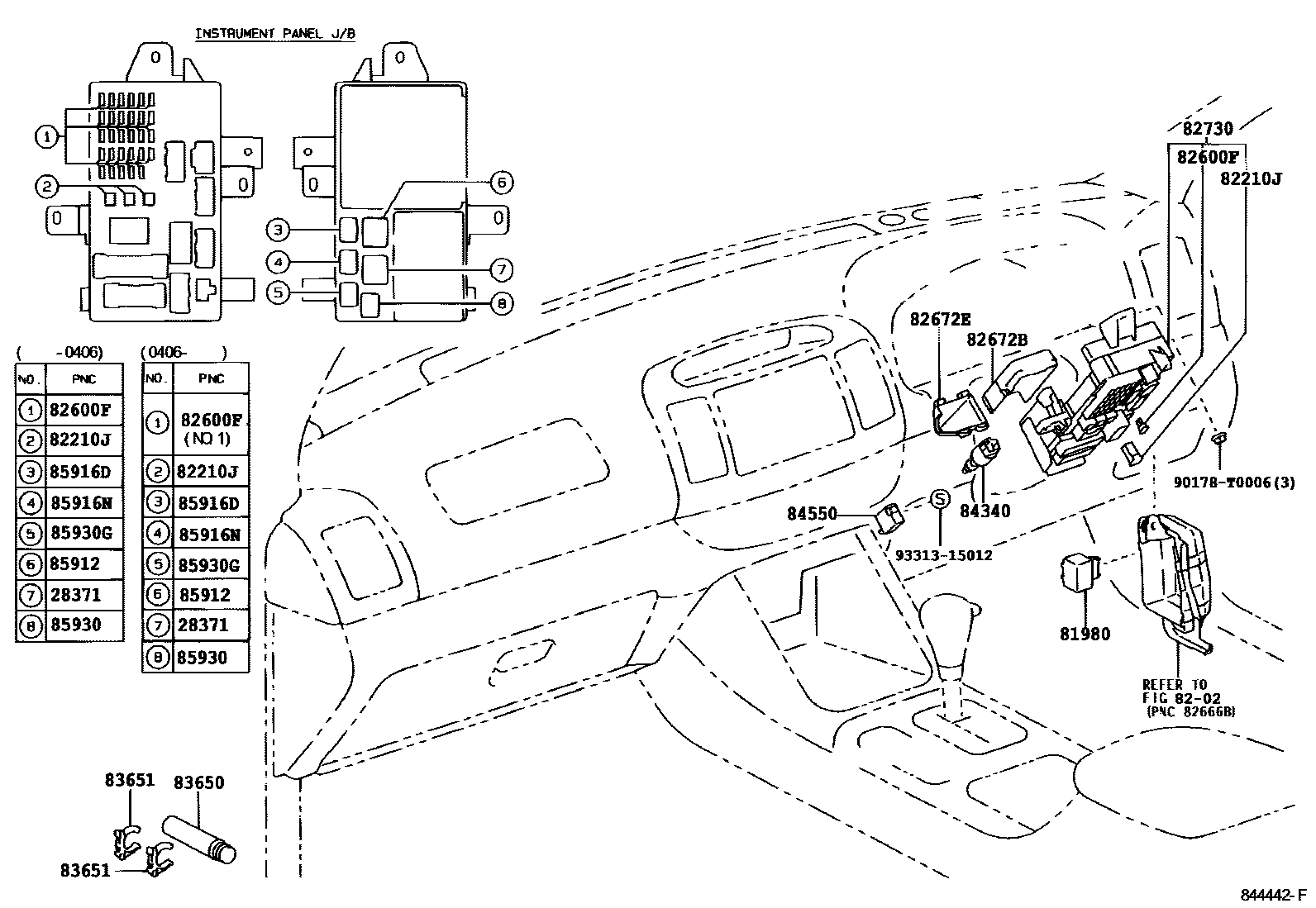

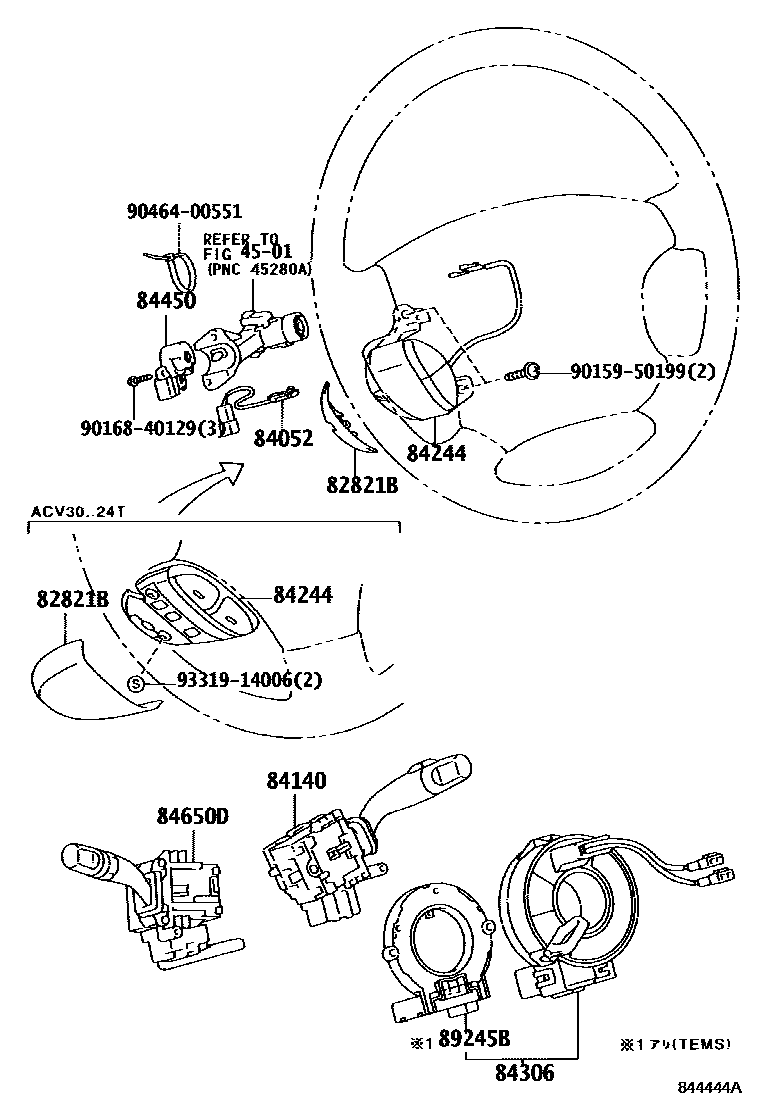

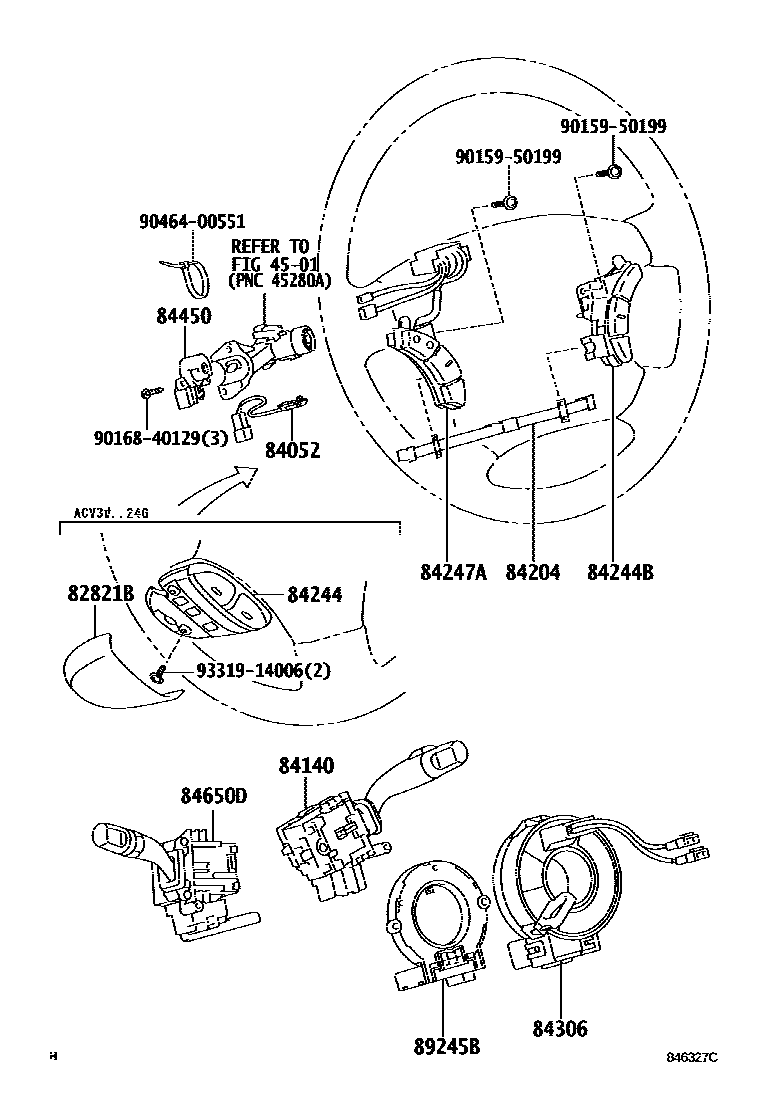

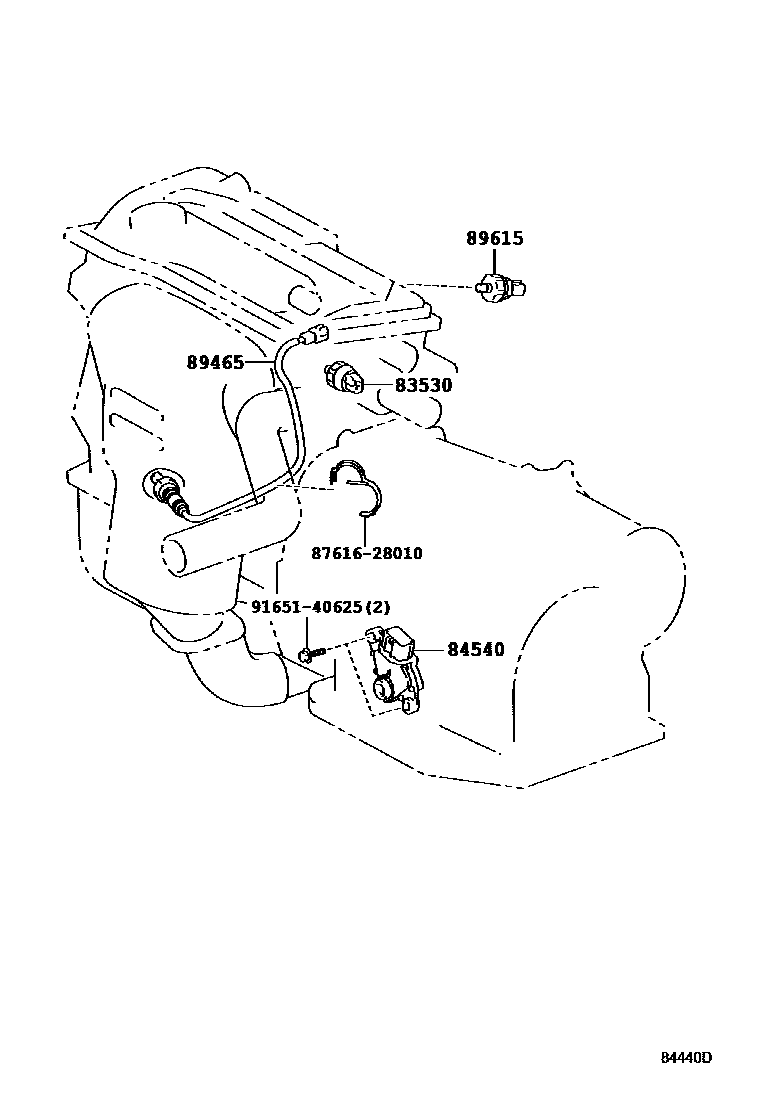

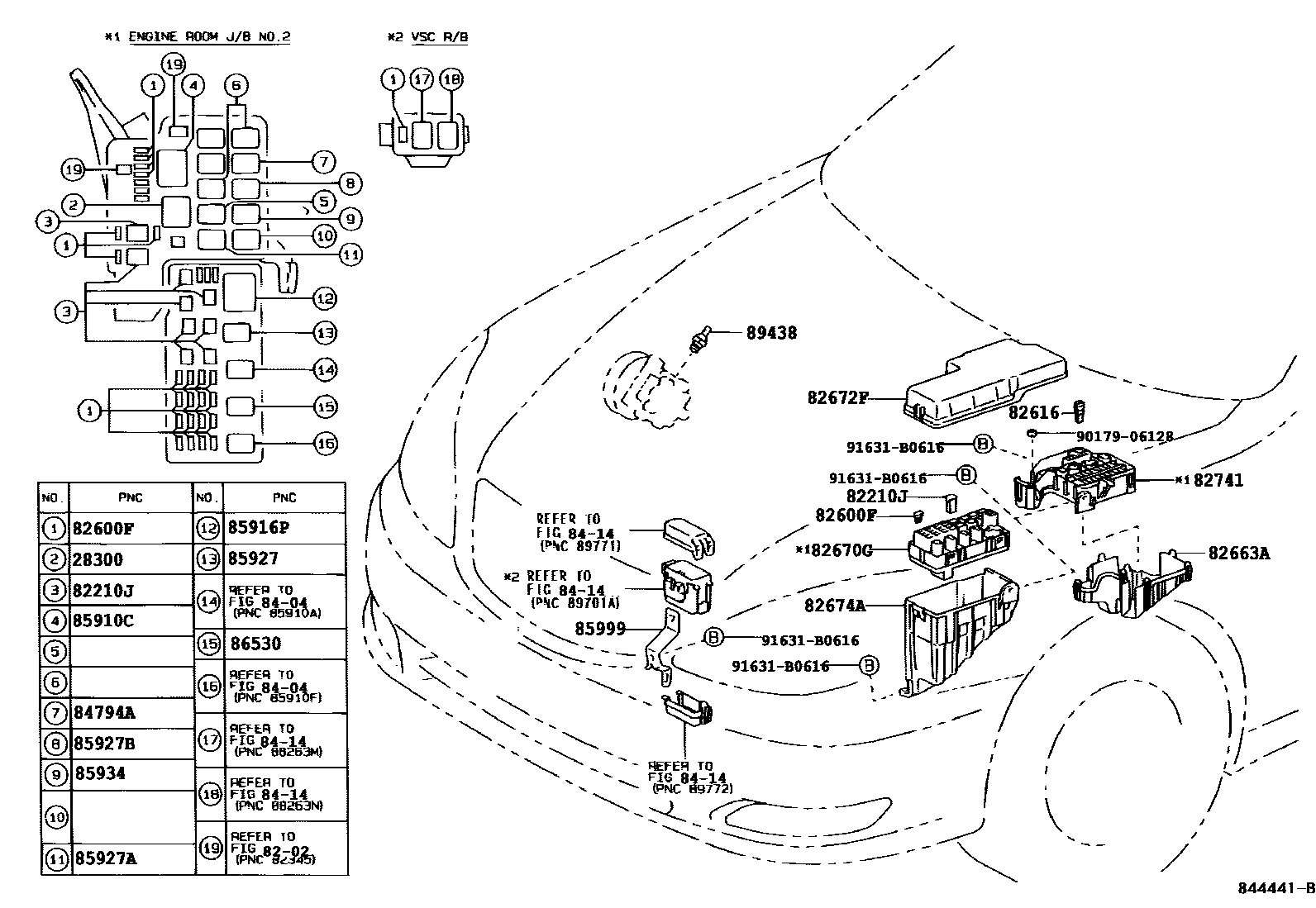

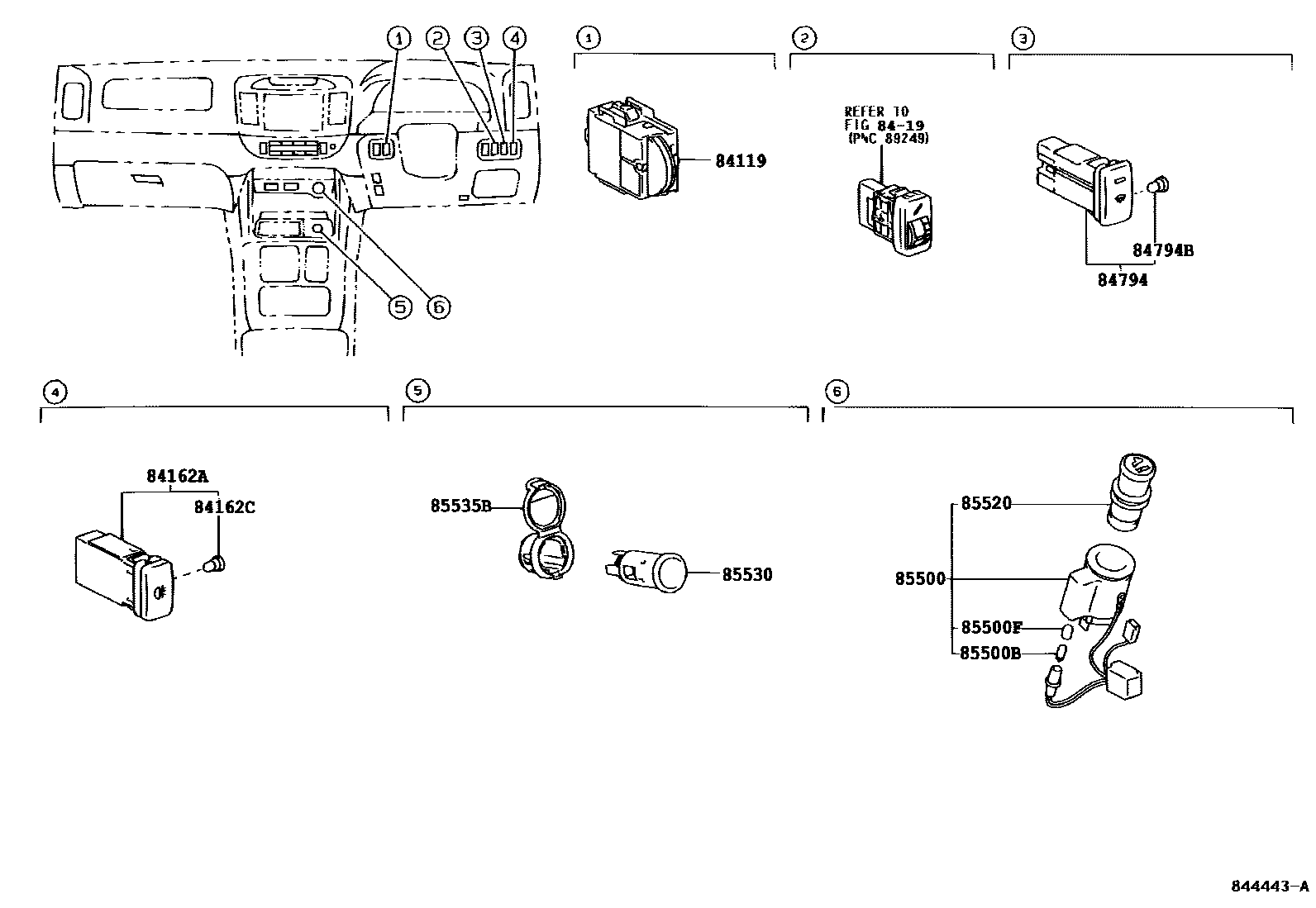

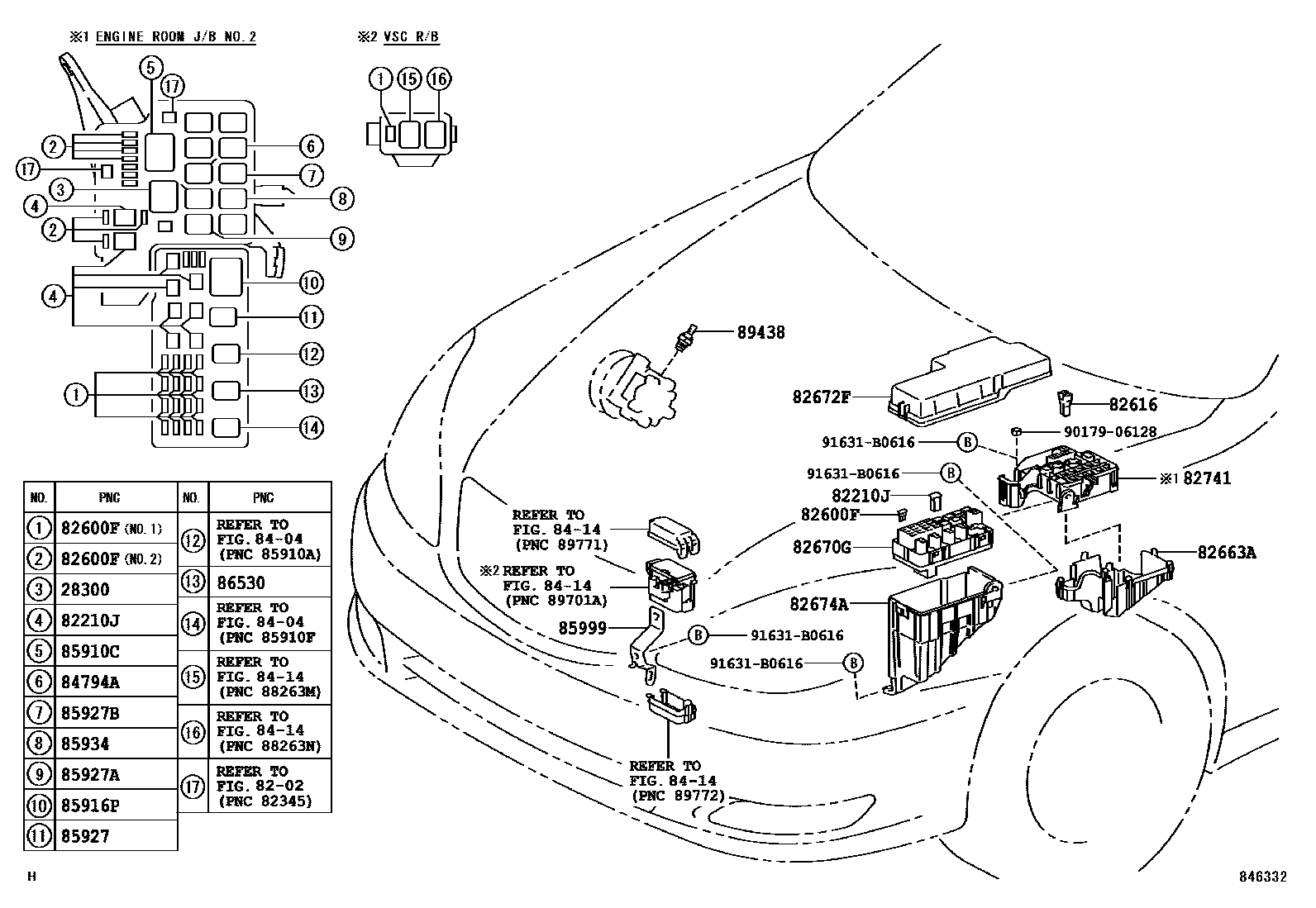

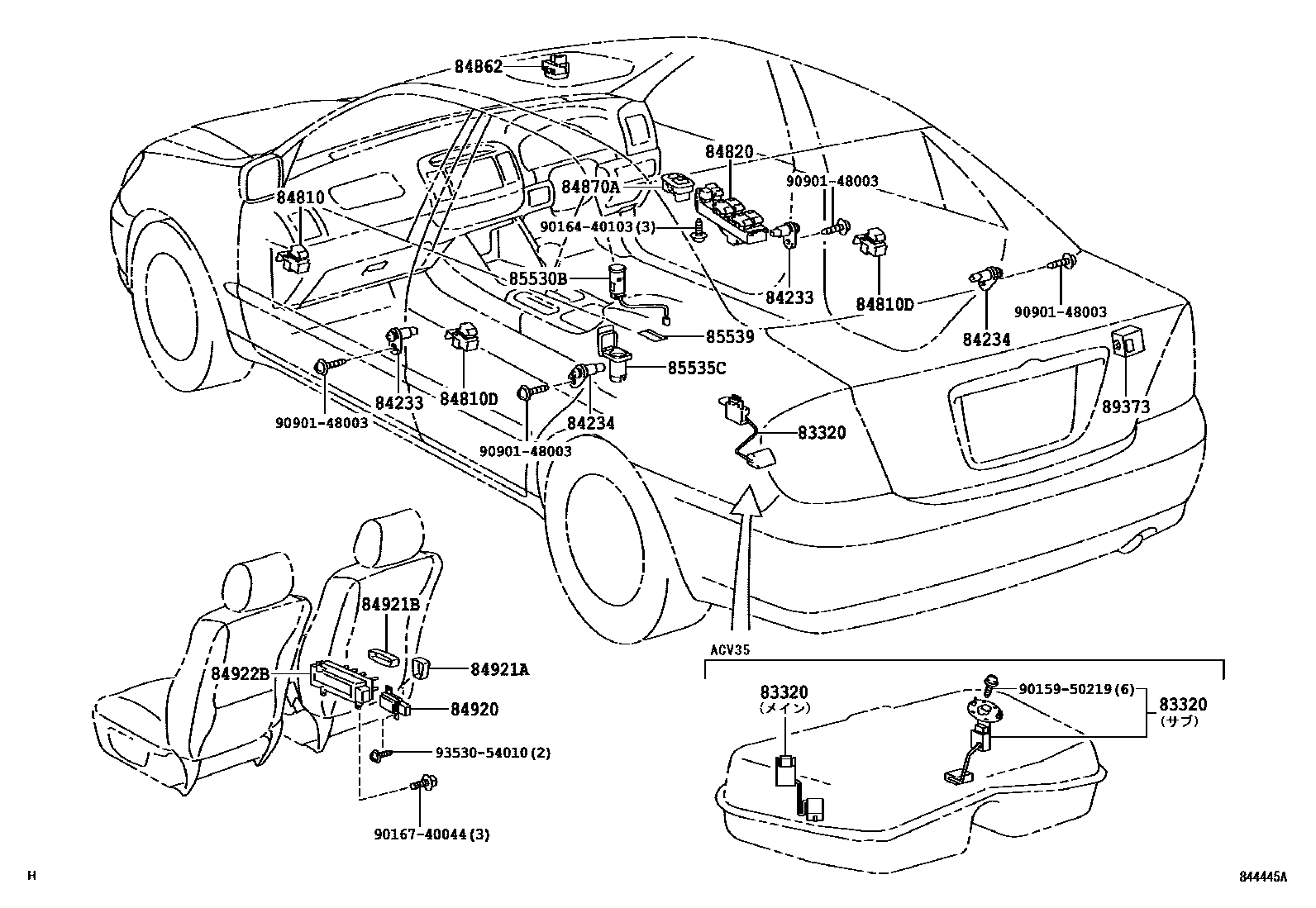

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 9 images and 71 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 28371 | No. 1 ignition relay | 90987-02025 |
| 81980 | Turn signal flasher relay assembly | 81980-50030 · 81980-53020 |
| 82210J | fuse | 90982-08202 · 90982-08274 · 90982-08280 · 90982-08281 · 90982-08282 |
| 82600F | Spare fuse | 90080-82020 · 90080-82021 · 90080-82022 · 90080-82023 · 90080-82024 · 90080-82031 · 90080-82033 · 90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 |
| 82616 | fuse puller | 82616-20010 |
| 82663A | No. 2 relay box lower cover | 82663-33060 |
| 82670G | Engine room junction box assembly | 82720-06040 · 82720-06041 |
| 82672B | Junction box cover | 82672-33200 |
| 82672E | Junction box cover | 82672-33210 |
| 82672F | Junction box cover | 82672-33230 · 82672-33281 |
| 82674A | Junction box lower cover | 82674-33060 |
| 82730 | Instrument panel junction box assembly | 82730-33070 · 82730-33180 |
| 82741 | Engine room relay box | 82741-33010 |
| 82821B | Connector cover | 82821-33200 · 82821-44020 |
| 83320 | Fuel gauge sensor assembly | 83320-33070 · 83320-33080 · 83320-80394 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83650 | fuse | 90986-01005 |
| 83651 | fuse clip | 90468-25003 |
| 84052 | Unlock warning switch assembly | 84052-32030 |
| 84119 | Light control rheostat | 84119-33130 · 84119-33160 |
| 84140 | Headlight dimmer switch assembly | 84140-32240 |
| 84152 | Headlight beam height adjustment switch | 84152-33030 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 90010-08107 |
| 84162A | Rear fog light switch | 84165-33040 |
| 84162C | Bulb (for rear fog light switch) | 90010-01061 |
| 84204 | Steering wheel decorative cover switch cable sub-assembly | 84204-58010 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84244 | Steering wheel trim cover switch | 84244-06010 · 84244-33030 · 84244-33060 · 84244-33120 |
| 84306 | Spiral cable sub-assembly | 84306-33080 · 84307-33010 |
| 84340 | brake light switch assembly | 84340-42020 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84540 | Neutral start switch assembly | 84540-12230 · 84540-32110 · 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-30080 |
| 84650D | Toyota part | 84652-2G450 |
| 84794 | Front wiper de-icer switch | 84794-33020 |
| 84794A | Front wiper de-icer relay | 90987-02012 · 90987-02022 · 90987-02027 |
| 84794B | Front wiper de-icer switch bulb | 84999-10310 · 90010-01061 |
| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84810D | Rear electric window lift switch assembly | 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84820-33150 · 84820-33190 |
| 84870A | Exterior rearview mirror switch assembly | 84870-33150 |
| 84922B | Front right electric seat switch | 84922-30210 · 84922-58010 |
| 85500 | Cigarette lighter assembly | 85500-33040 · 85500-41030 |
| 85500B | Cigarette lighter bulb | 90981-11018 |
| 85500F | Cigarette lighter bulb cover | 84998-10510 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-33020 |
| 85530B | No. 1 rear power socket assembly | 85530-33050 |
| 85535B | No. 1 power outlet cover | 85535-48050 |
| 85535C | Rear power outlet cover | 85535-33020 |
| 85539 | Power socket attention labels | 85539-33010 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04006 · 90987-04010 |
| 85912 | defogger relay | 90987-02025 |
| 85916D | fog light relay | 90987-02020 · 90987-02027 |
| 85916N | Tail light relay | 90987-02020 · 90987-02027 |
| 85916P | headlight relay | 90987-02016 · 90987-02025 |
| 85927 | cooling fan relay | 90080-87008 · 90987-02012 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90080-87009 · 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90080-87008 · 90987-02012 · 90987-02027 |
| 85930 | Electric window relay assembly | 90987-02012 · 90987-02027 |
| 85930G | ACC relay | 90987-02012 · 90987-02027 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 85999 | Combination relay bracket | 85999-33160 |
| 86530 | Speaker relay assembly | 90987-02012 · 90987-02027 |
| 89245B | steering sensor | 89245-50030 |
| 89373 | Malfunction indicator light sensor | 89373-33250 · 89373-33260 · 89373-33270 · 89373-33280 · 89373-33310 · 89373-33320 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89465 | oxygen sensor | 89465-33240 |
| 89615 | knock control sensor | 89615-32030 · 89615-44010 |
