Toyota CAMRY 仪表 — Figure 8301

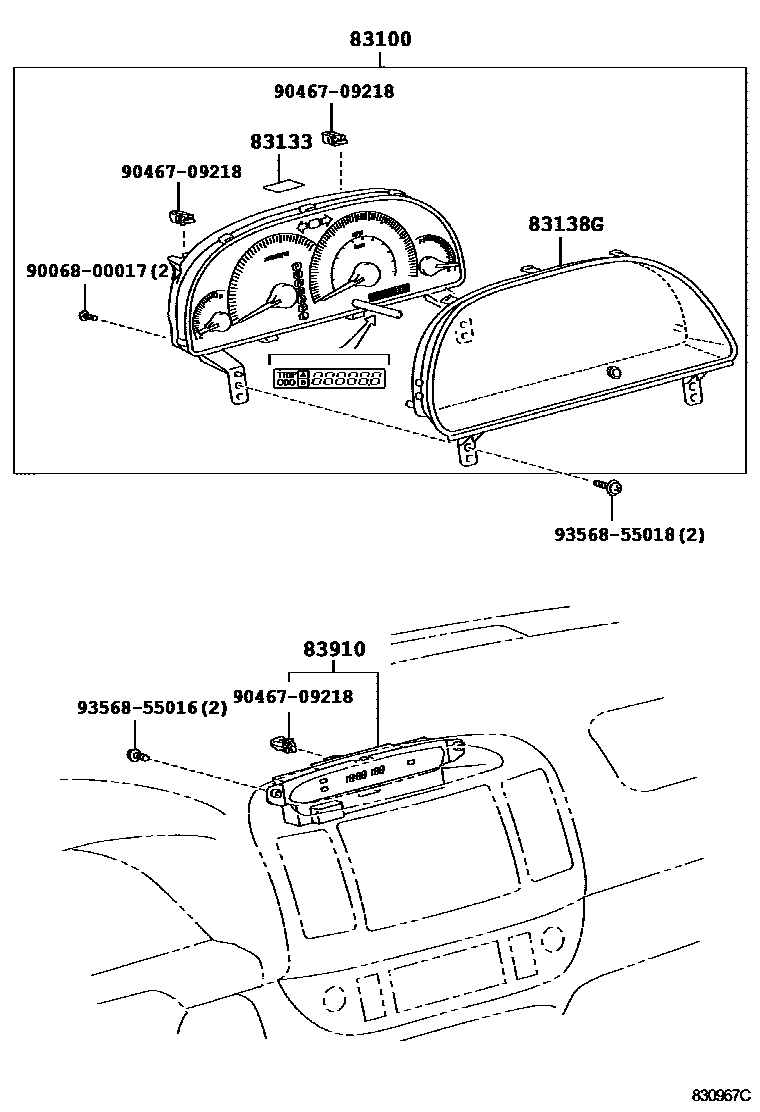

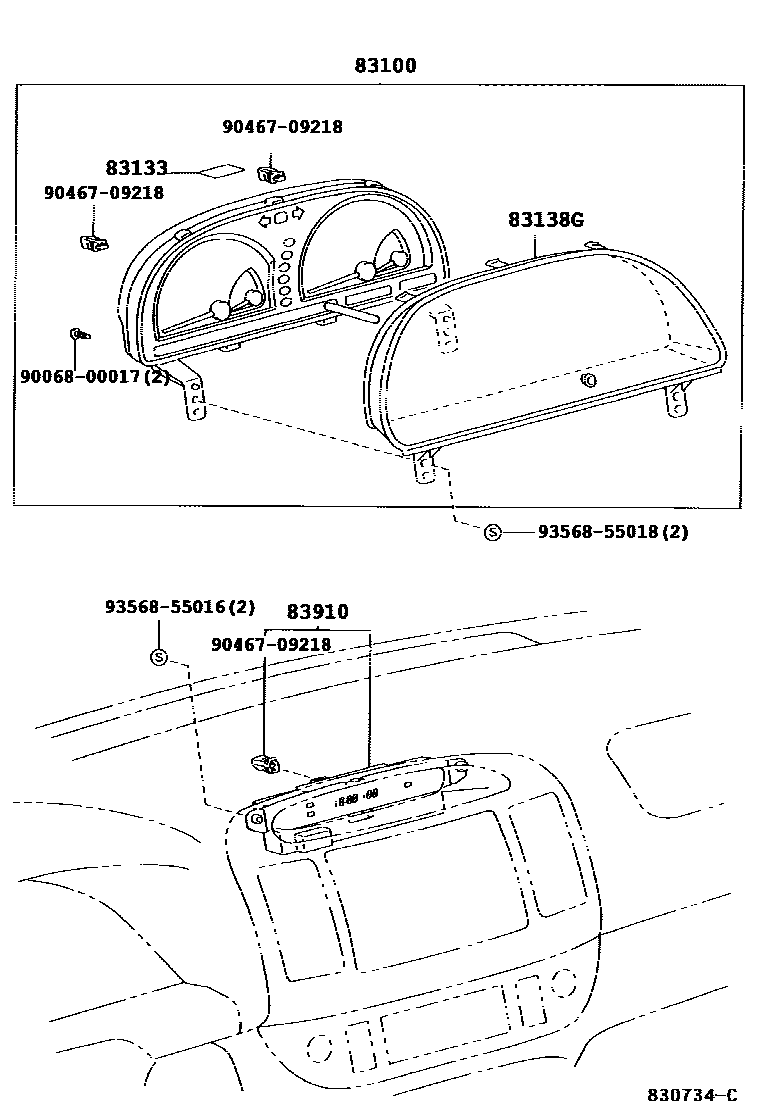

Toyota CAMRY EPC diagram 8301, 仪表, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-06D00 · 83800-06D10 · 83800-06D20 · 83800-0W130 · 83800-0W140 · 83800-0W150 |
| 83133 | Combined instrument panel No. 1 | 83811-0W240 |
| 83138G | Instrument cluster glass | 83852-06B50 · 83852-0W260 |
| 83910 | clock assembly | 83910-33080 |
