Toyota CAMRY 线束和卡夹 — Figure 8202
Toyota CAMRY EPC diagram 8202, 线束和卡夹, with 8 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

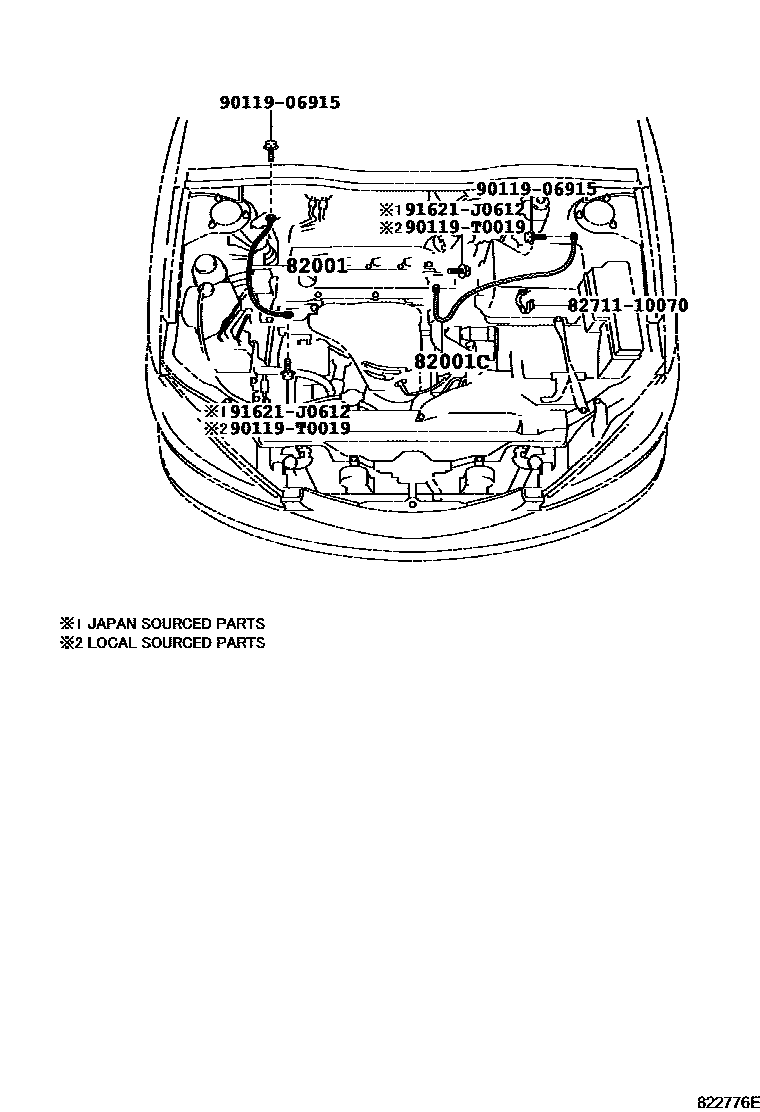

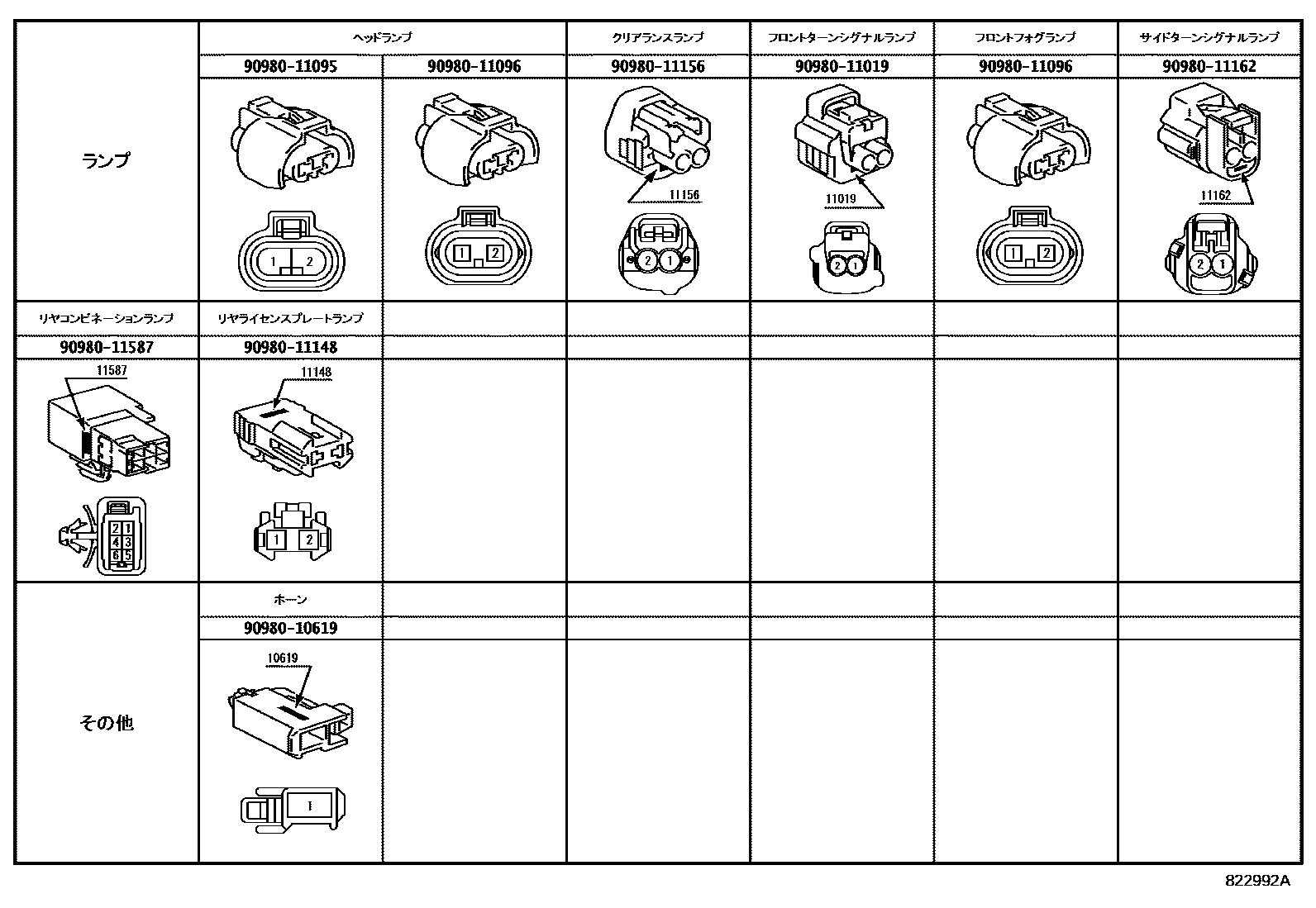

| 82001 | Connection cable No. 1 | 90980-07410 · 90980-07427 |
| 82001C | Connection cable No. 2 | 90980-07400 |

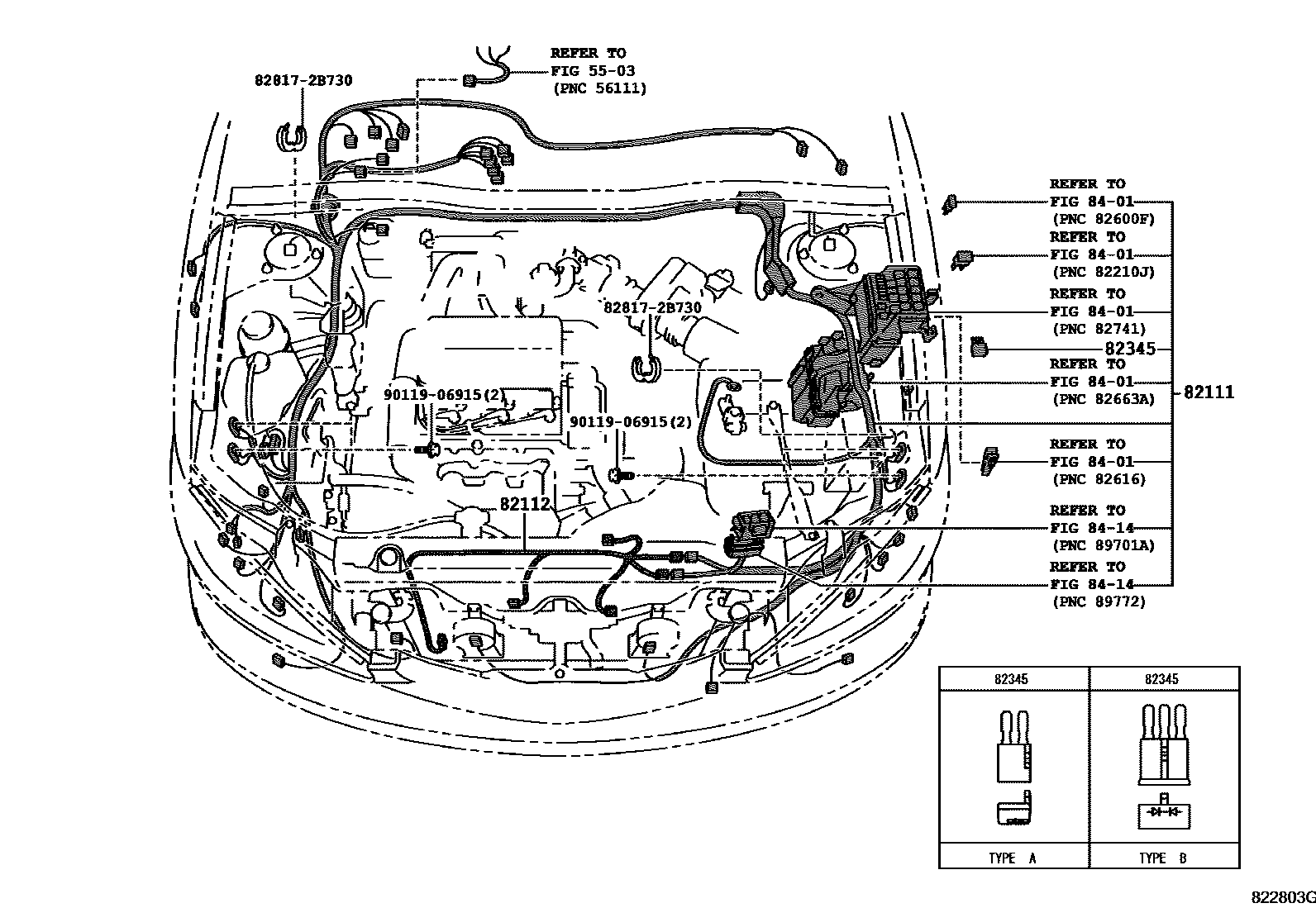

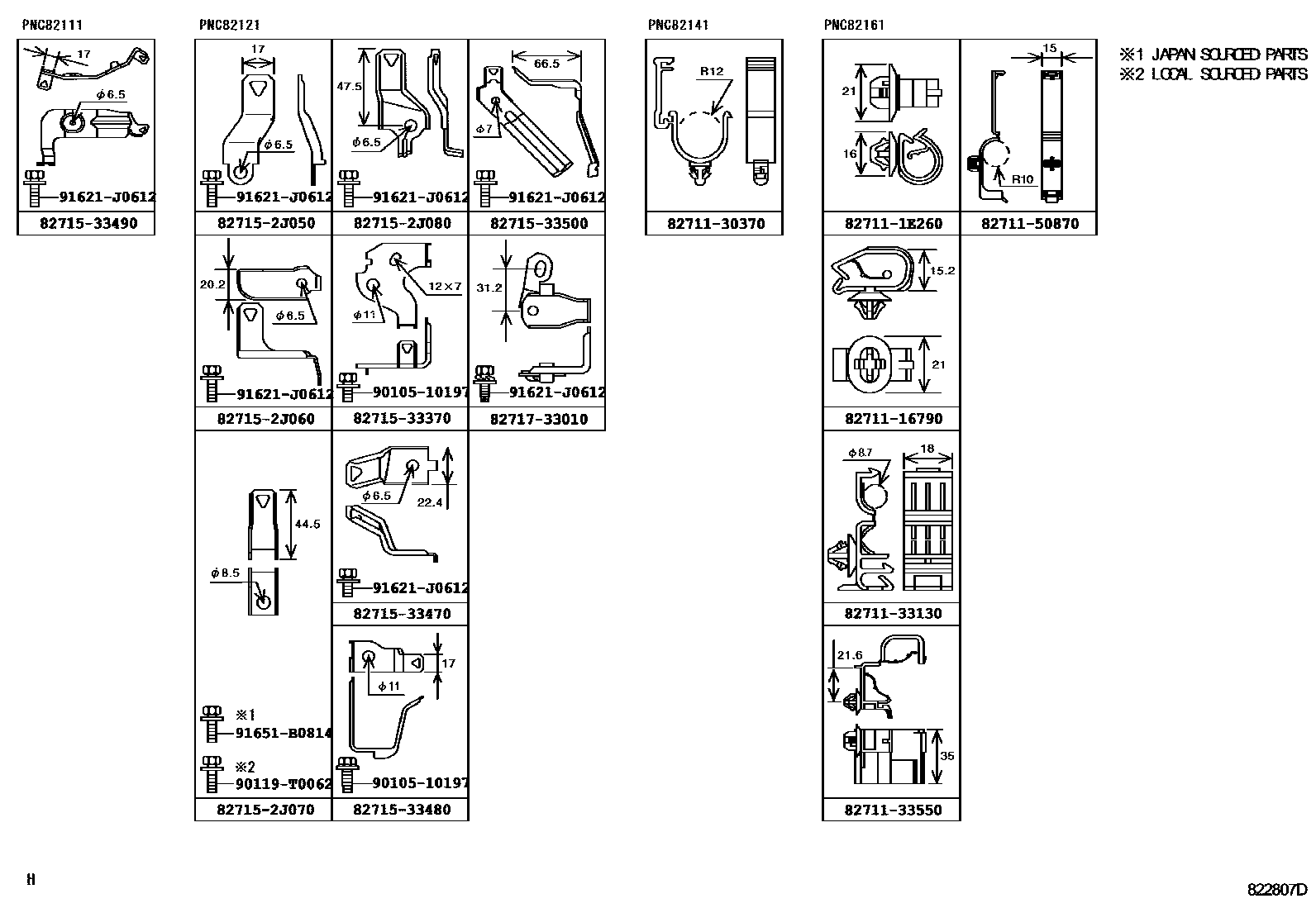

| 82111 | Engine room main wiring harness | 82111-3Y110 · 82111-3Y111 · 82111-3Y120 · 82111-3Y121 · 82111-3Y140 · 82111-3Y141 · 82111-3Y320 · 82111-3Y330 · 82111-3Y340 |
| 82112 | Engine room wiring harness No. 2 | 82112-33020 |

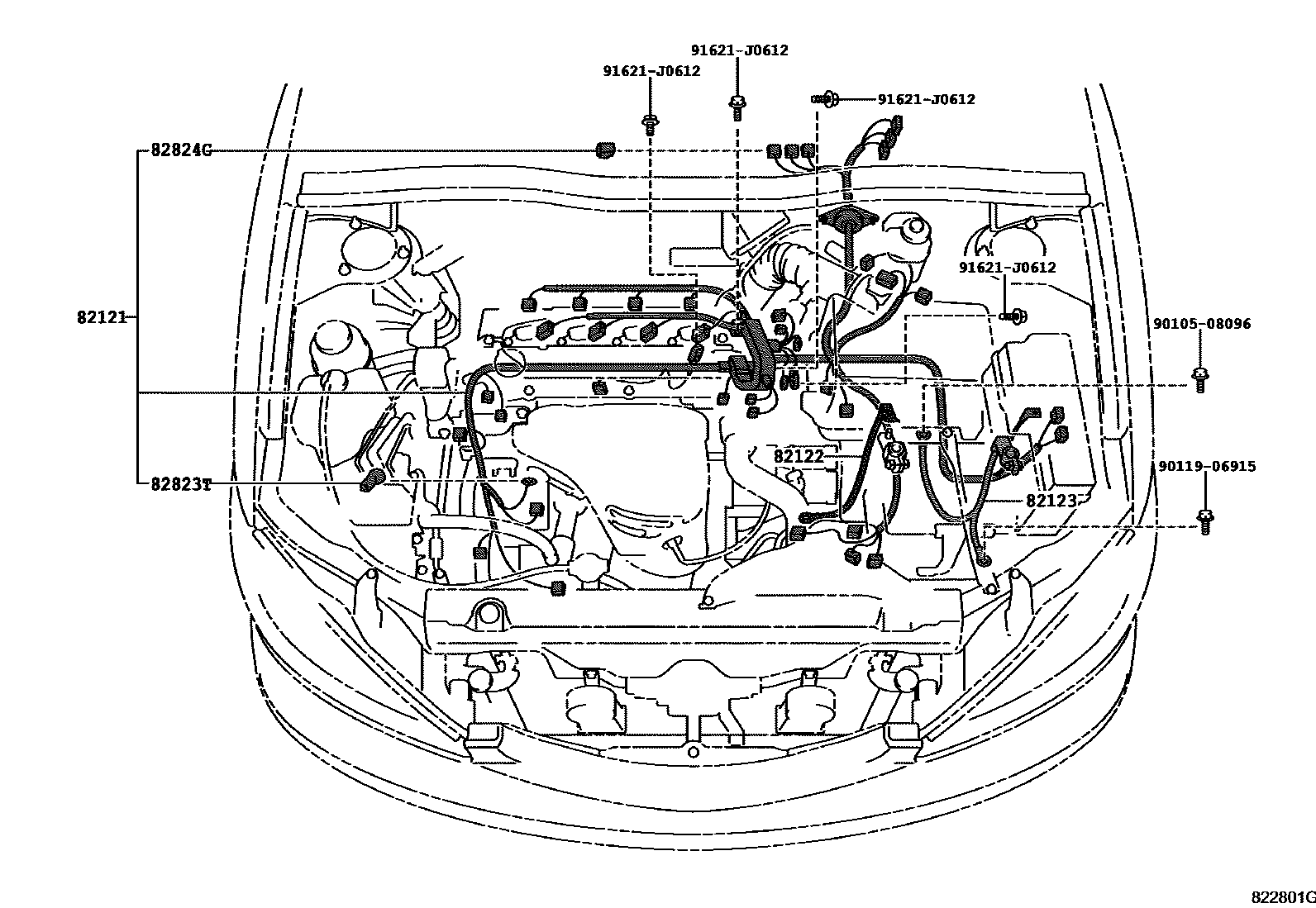

| 82121 | Engine wiring harness | 82121-3T840 · 82121-3T841 · 82121-3T842 |
| 82122 | Engine No. 2 wiring harness | 82122-33050 |
| 82123 | Engine No. 3 wiring harness | 82123-33030 |
| 82132 | Front No. 2 wiring harness | 82132-33010 |

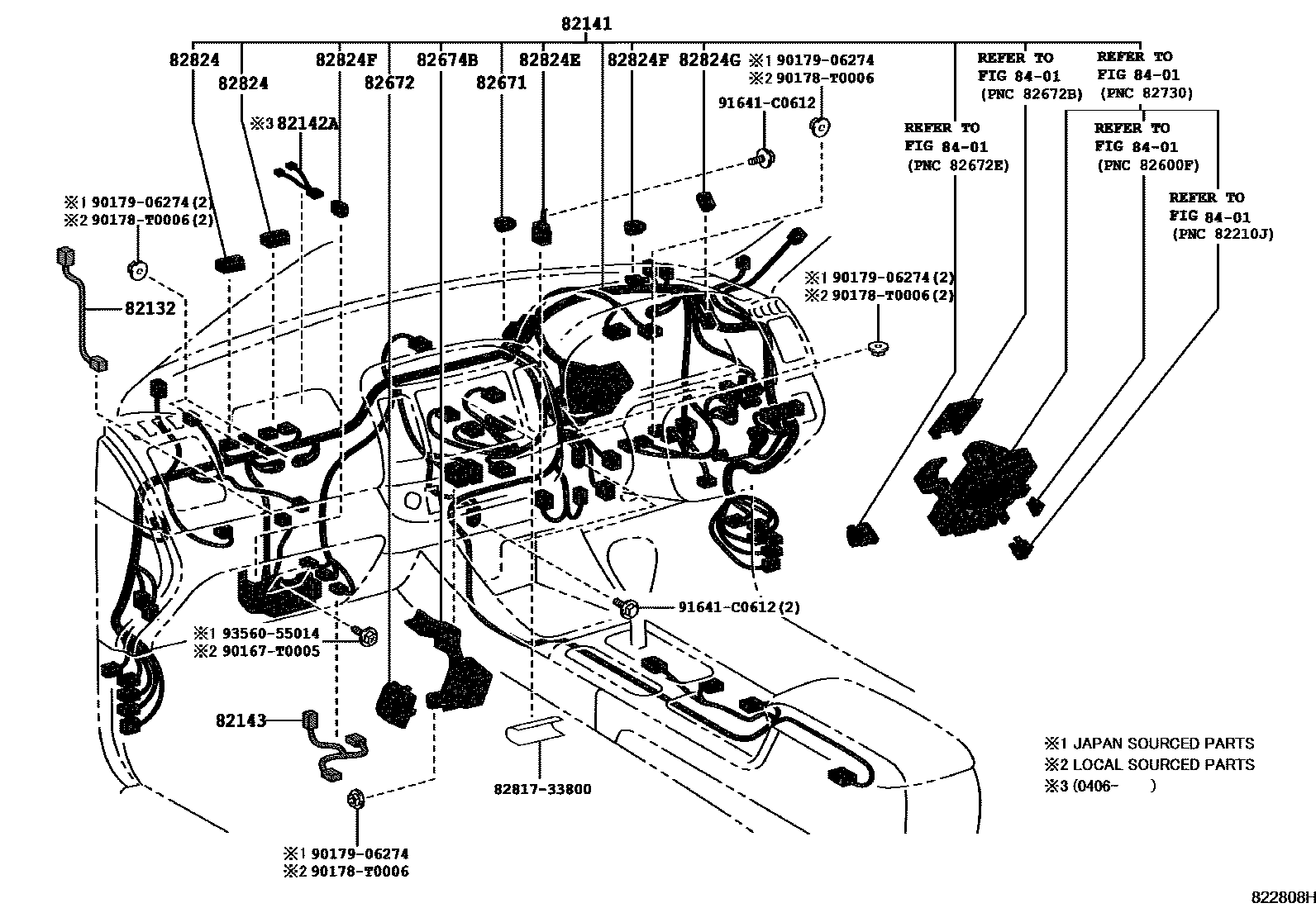

| 82141 | Dashboard wiring harness | 82141-33C00 · 82141-33C10 · 82141-33C20 · 82141-33C21 · 82141-33C30 · 82141-3Y200 · 82141-3Y201 · 82141-3Y210 · 82141-3Y211 · 82141-3Y220 · 82141-3Y221 · 82141-3Y230 · 82141-3Y231 |
| 82142A | Instrument panel wiring harness No. 2 | 82142-33120 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-33060 |
| 82151 | Right front door wiring harness | 82151-3T120 |
| 82152 | Left front door wiring harness | 82152-3T230 |
| 82153 | Rear door wiring harness No. 1 | 82153-33210 |
| 82154 | Rear door wiring harness No. 2 | 82154-33100 |

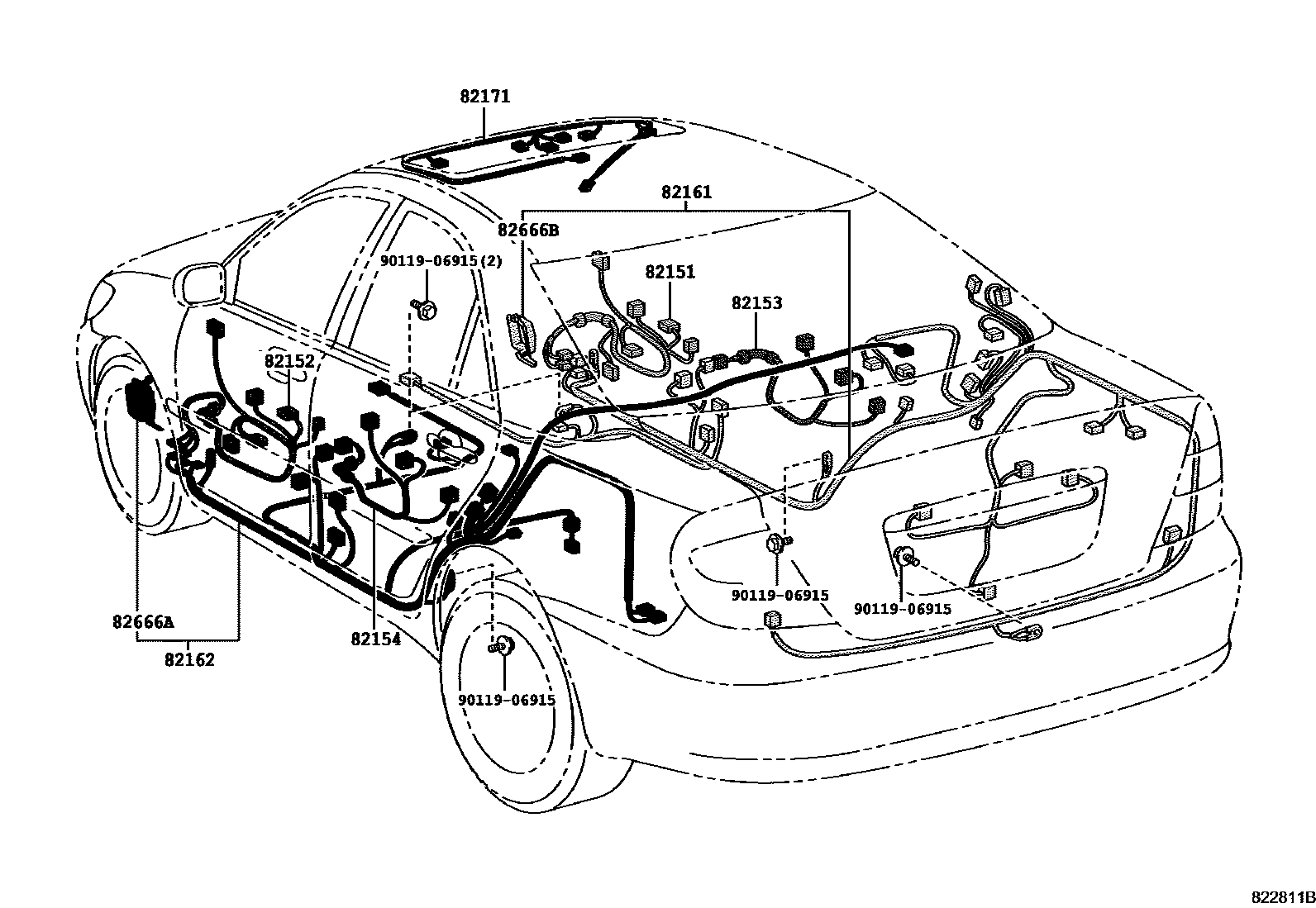

| 82161 | floor wiring harness | 82161-33A10 · 82161-33C60 · 82161-3Y760 · 82161-3Y770 · 82161-3Y780 · 82161-3Y790 · 82161-3Y840 · 82161-3Y850 · 82161-3Y860 · 82161-3Y870 · 82199-33160 · 82199-33180 · 82199-33270 |
| 82162 | Floor wiring harness No. 2 | 82162-33A40 · 82162-33A50 · 82162-33A60 · 82162-33A70 · 82162-3Y320 · 82162-3Y321 · 82162-3Y330 · 82162-3Y331 · 82162-3Y340 · 82162-3Y341 · 82162-3Y350 · 82162-3Y351 |
| 82171 | Roof No. 1 wiring harness | 82171-33800 · 82171-33810 |

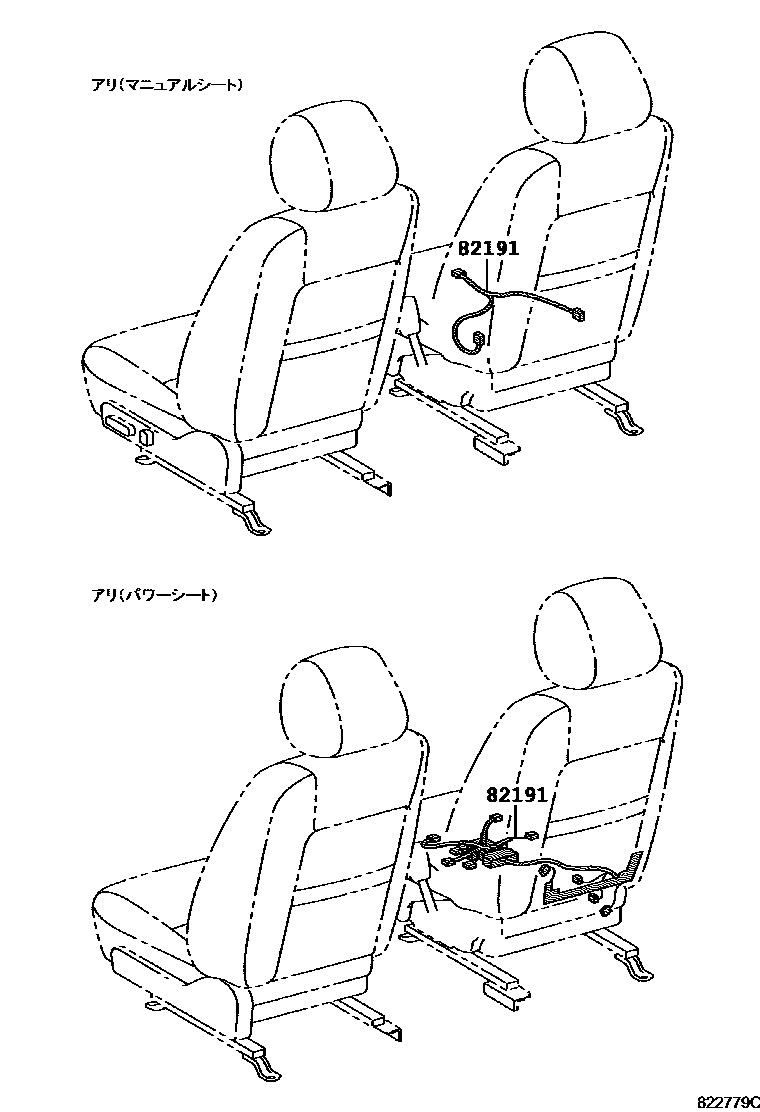

| 82191 | Front right seat wiring harness | 82191-33040 · 82191-33210 · 82191-33230 |
| 82345 | diode | 82345-12050 · 82345-32020 |
| 82666A | Connector holder No. 2 | 82666-33250 |
| 82666B | No. 3 connector holder | 82666-33260 |
| 82671 | junction box | 82671-30370 |
| 82672 | Junction box cover | 82672-33250 |
| 82674B | Junction box lower cover | 82674-33040 |
| 82823T | Toyota part | 82823-22080 |
| 82824 | Harness connector | 82824-12210 |
| 82824E | Harness connector | 82824-20130 |
| 82824F | Harness connector | 82824-30220 |
| 82824G | Harness connector | 82824-50110 |
