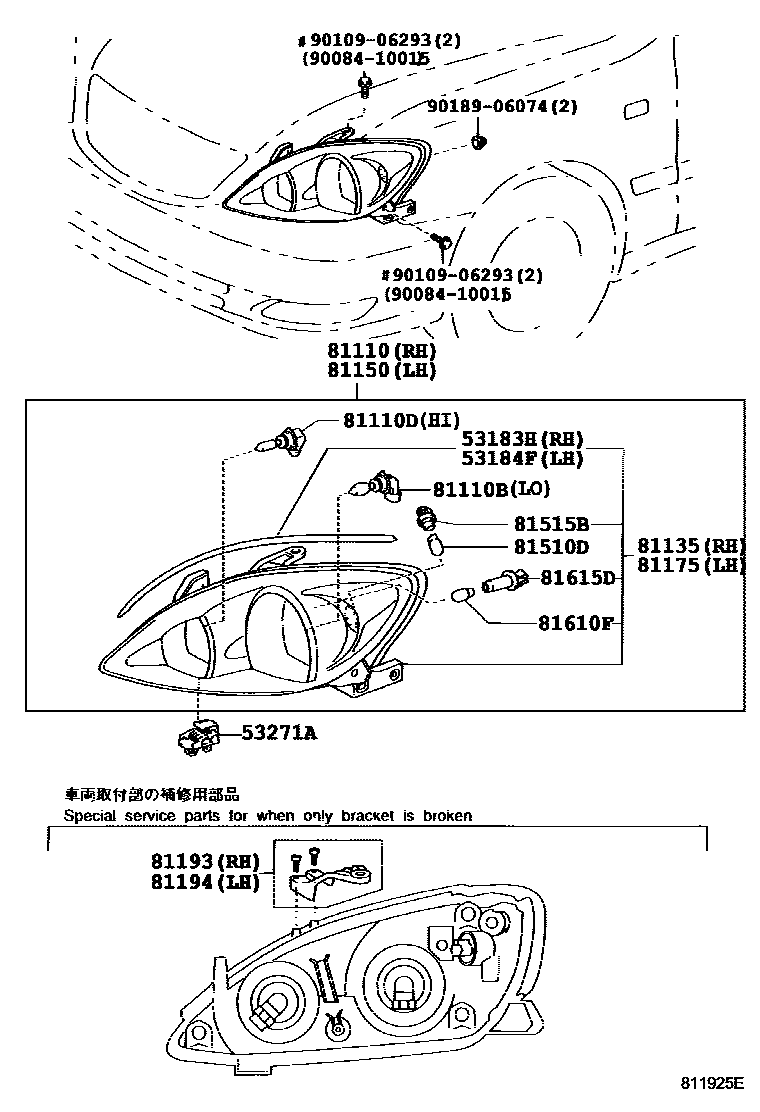

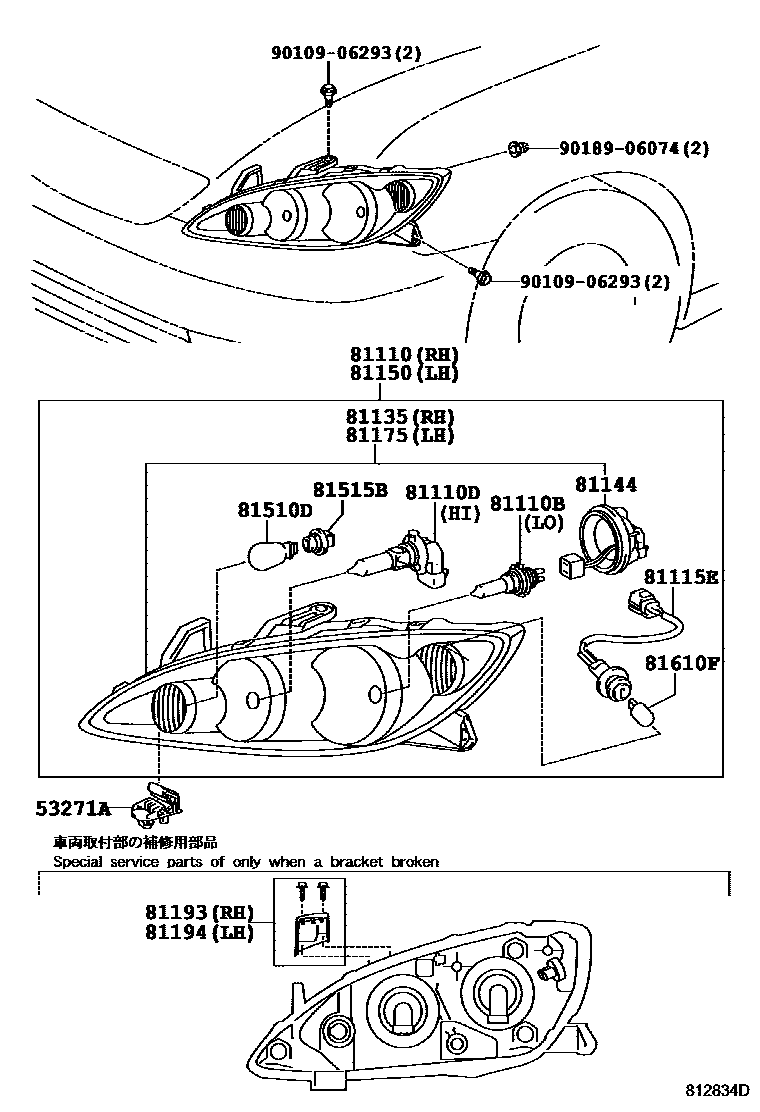

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183H | Right headlight cover seal | 53183-33090 |
| 53184F | Left headlight cover seal | 53184-33090 |
| 53271A | Headlight mounting bracket | 53271-44010 |
| 81110 | Right headlight assembly | 81110-33410 · 81110-33411 · 81110-33420 · 81110-33421 · 81110-33500 · 81110-33510 |
| 81110B | Bulb (for headlight No. 1) | 90981-13062 · 90981-13063 |
| 81110D | Bulb (for headlight No. 2) | 90080-81041 · 90981-13046 |
| 81115E | headlight wire | 81115-33500 |
| 81135 | Right headlight assembly | 81130-33410 · 81130-33420 · 81130-33500 · 81130-33510 |
| 81144 | No. 1 headlight cover | 81135-33430 |
| 81150 | Left headlight assembly | 81150-33400 · 81150-33410 · 81150-33411 · 81150-33420 · 81150-33421 · 81150-33500 |
| 81175 | Left headlight assembly | 81170-33400 · 81170-33410 · 81170-33420 · 81170-33500 |
| 81193 | Right headlight upper protective ring | 81193-33020 |
| 81194 | Left headlight upper protective ring | 81194-33020 |
| 81510D | front turn signal light bulb | 90981-13043 · 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 · 90075-99080 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60046 |
