Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403

Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 13 PNC and OE references.

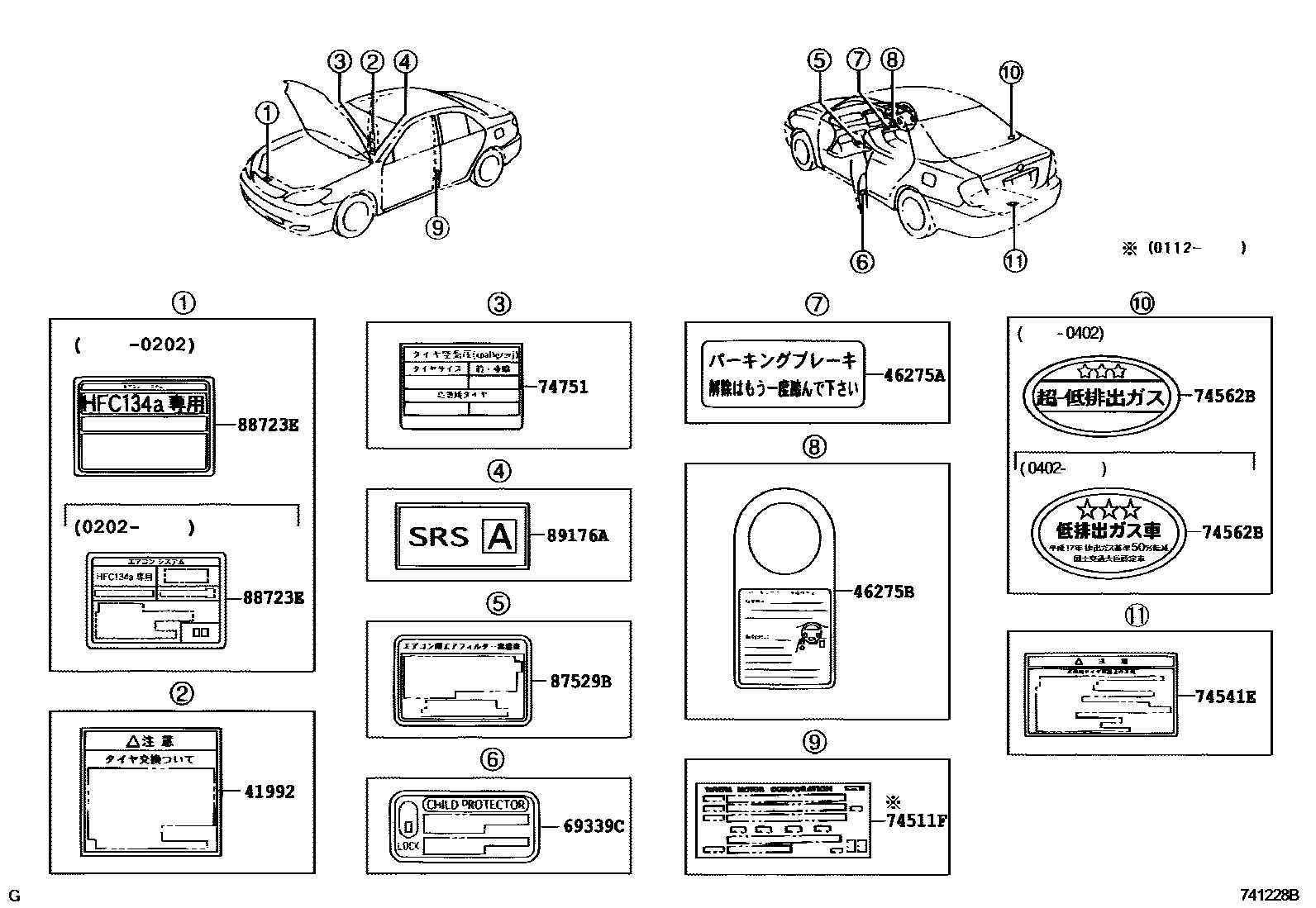

Toyota CAMRY 警示铭牌(车外和车内) EPC diagram — 741228B
警示铭牌(车外和车内) — 741228B (200109 – 999999)
Toyota CAMRY 警示铭牌(车外和车内) EPC diagram — 746017
警示铭牌(车外和车内) — 746017 (200109 – 999999)

PNC and OE references

PNCPart nameOE numbers
11296CEngine maintenance information label11296-28030 · 11296-28031 · 11296-28032
16793BCooling fan information label16793-28010 · 16793-50010
41992Differential attention label41992-33010
46275ANo. 1 parking brake release information label46275-32010
46275BNo. 2 parking brake release information label46275-47010
69339CChild Restraint Information Label69339-12010
74511FNameplate (laser identification label)74511-2B300
74541ESmall spare tire warning plate42668-28060
74562BEmission information label74562-12610 · 74562-40050
74751tire pressure information label42661-33600 · 42661-33610
87529BCabin filter information label87529-50020
88723ECooler maintenance warning label88723-42050 · 88733-33020
89176AAir bag deployment information label89176-32010
