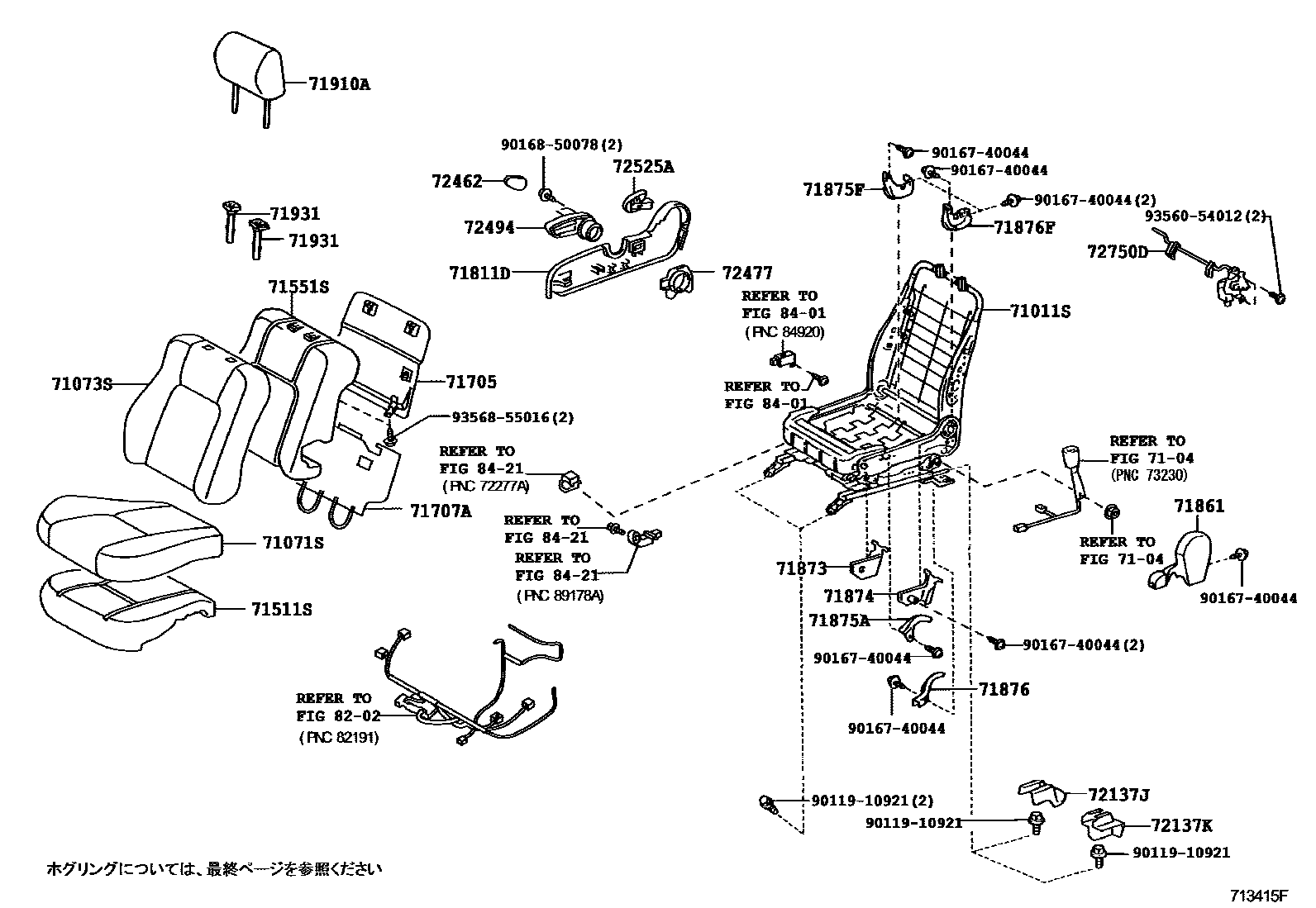

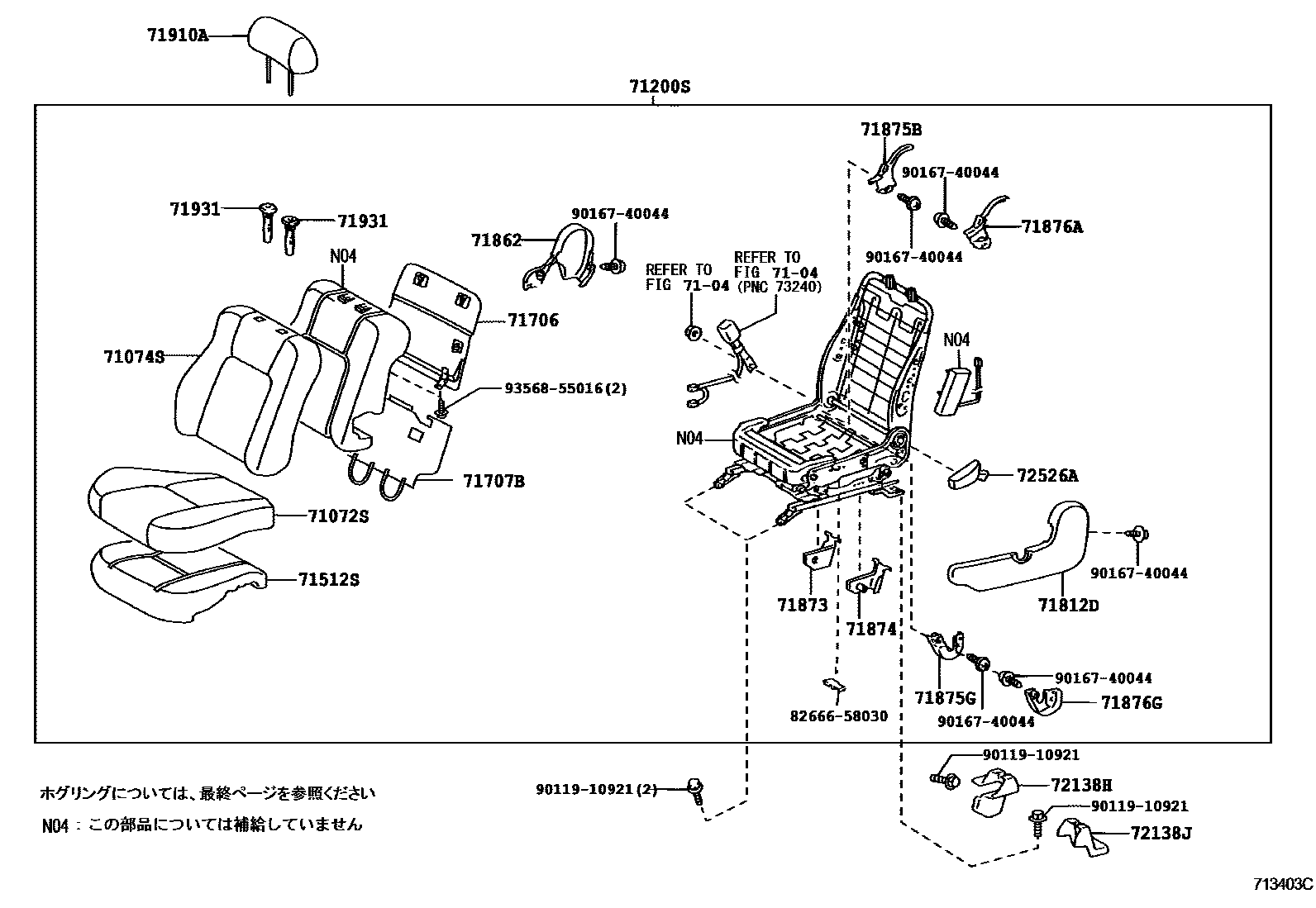

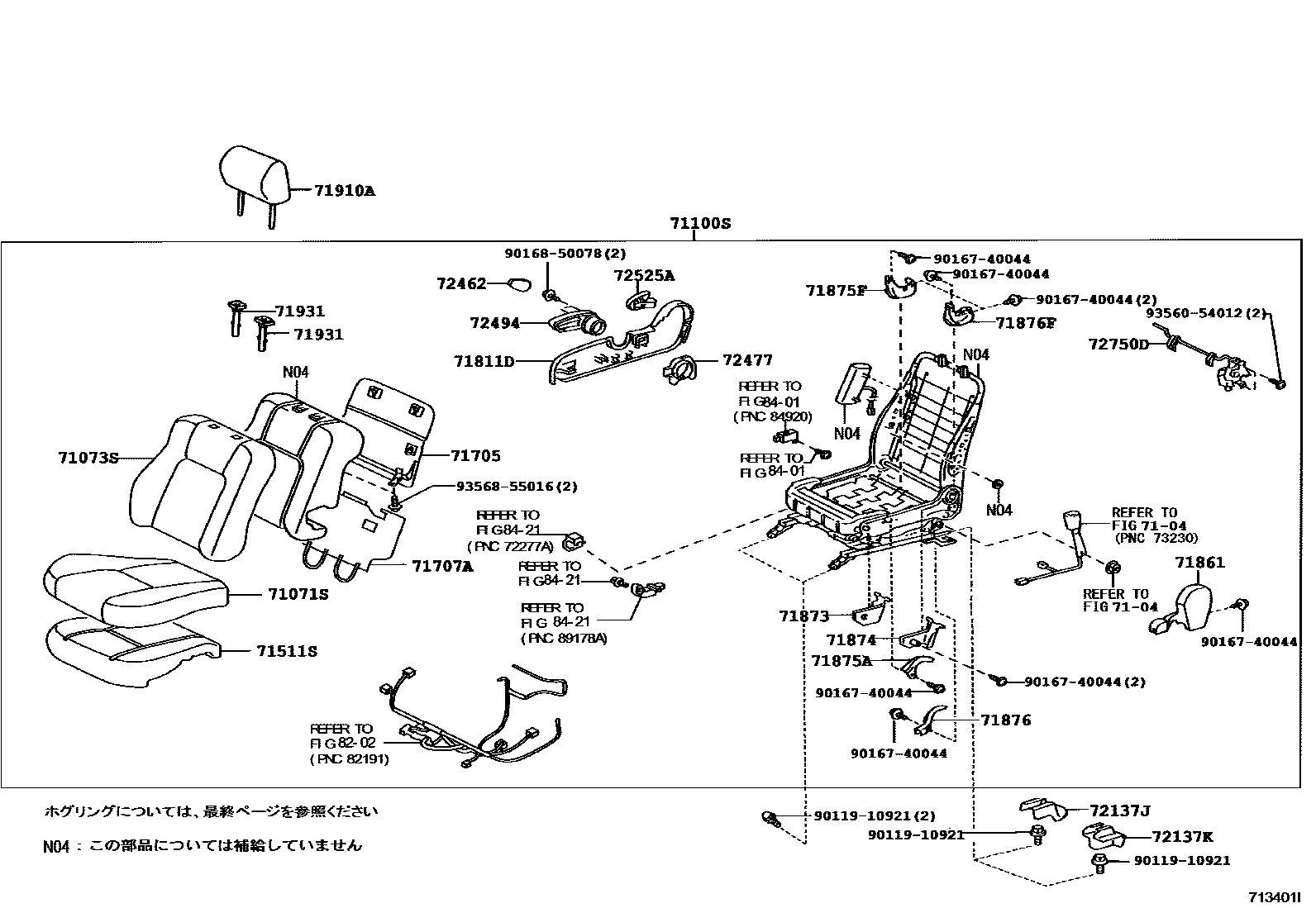

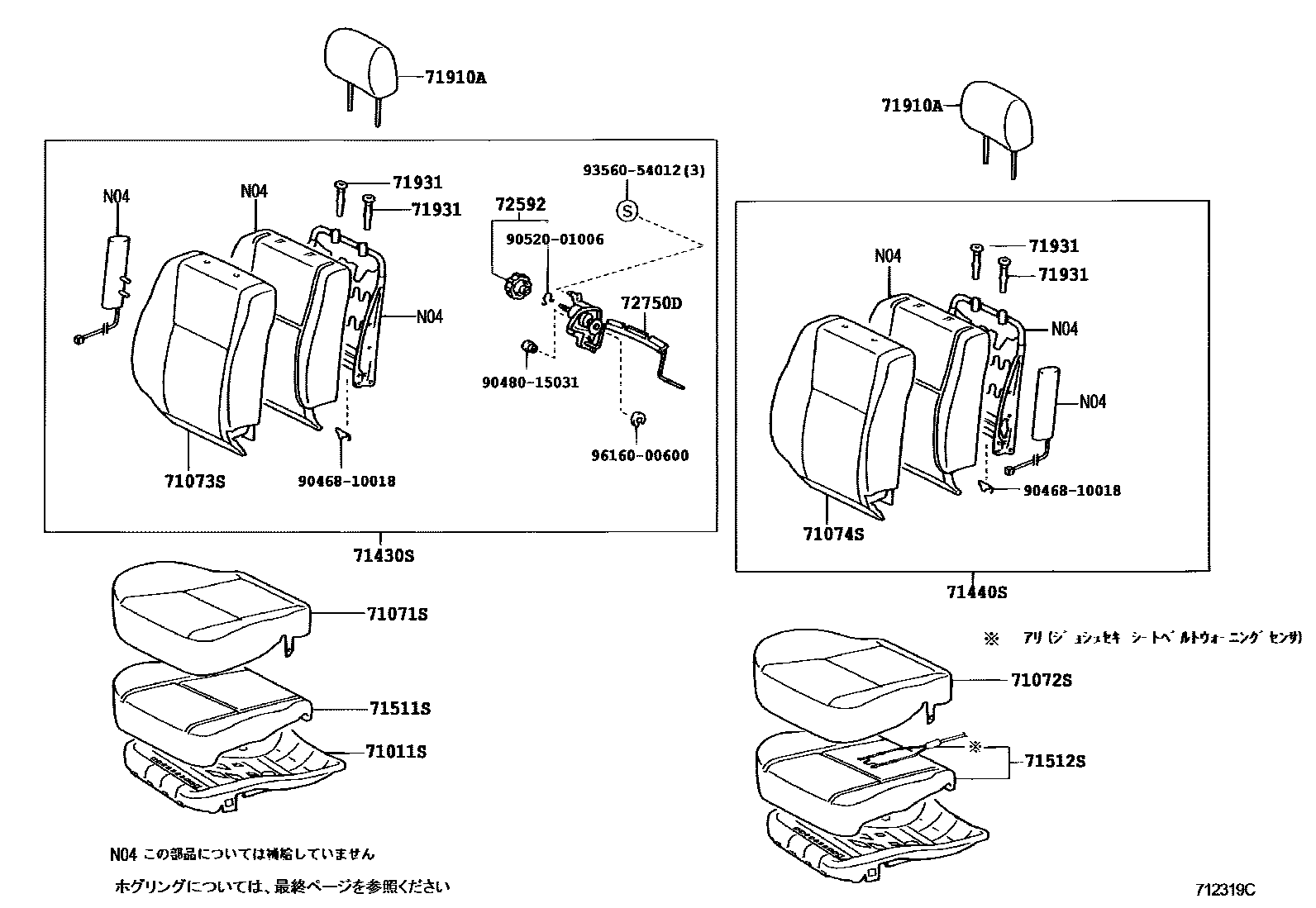

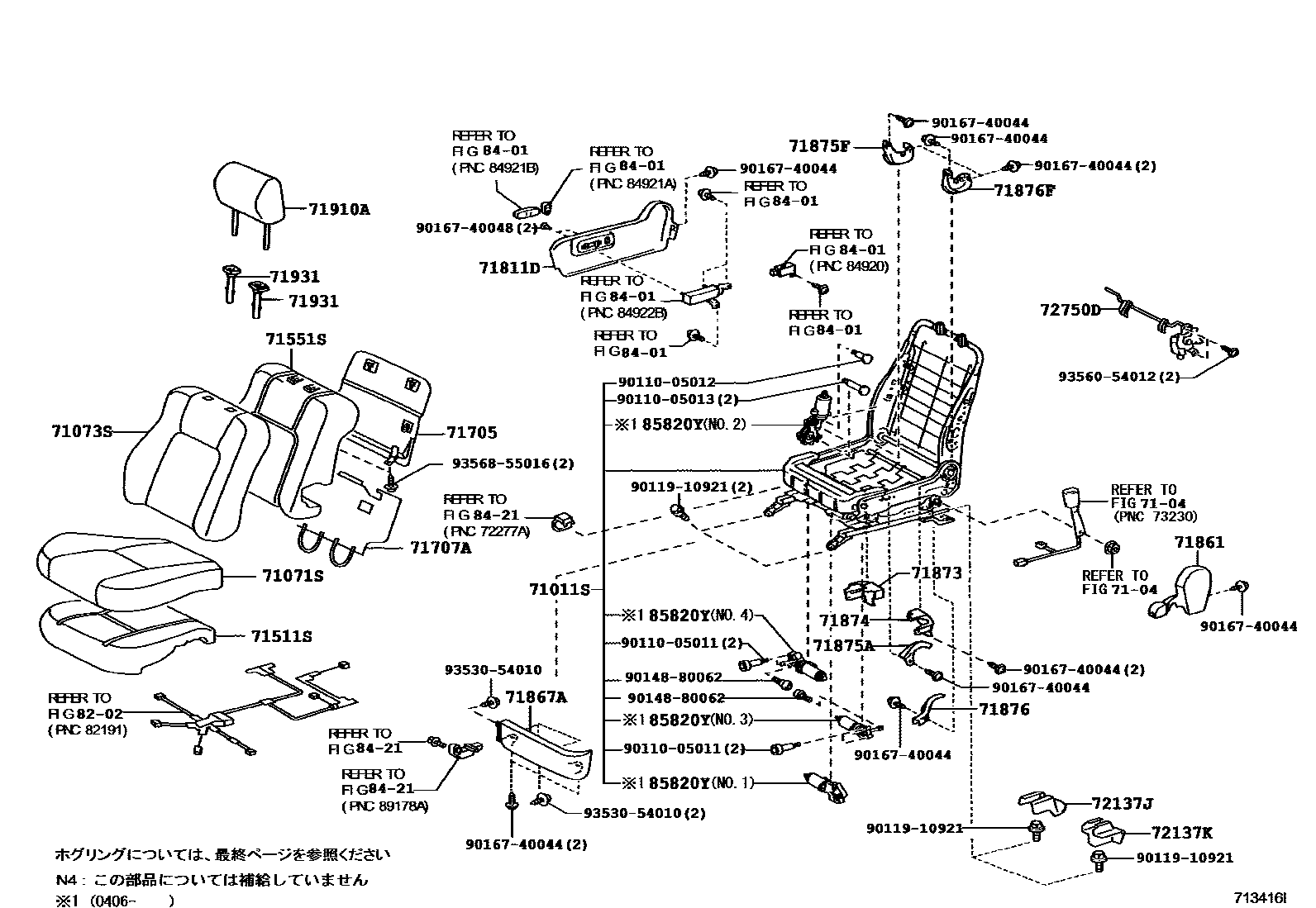

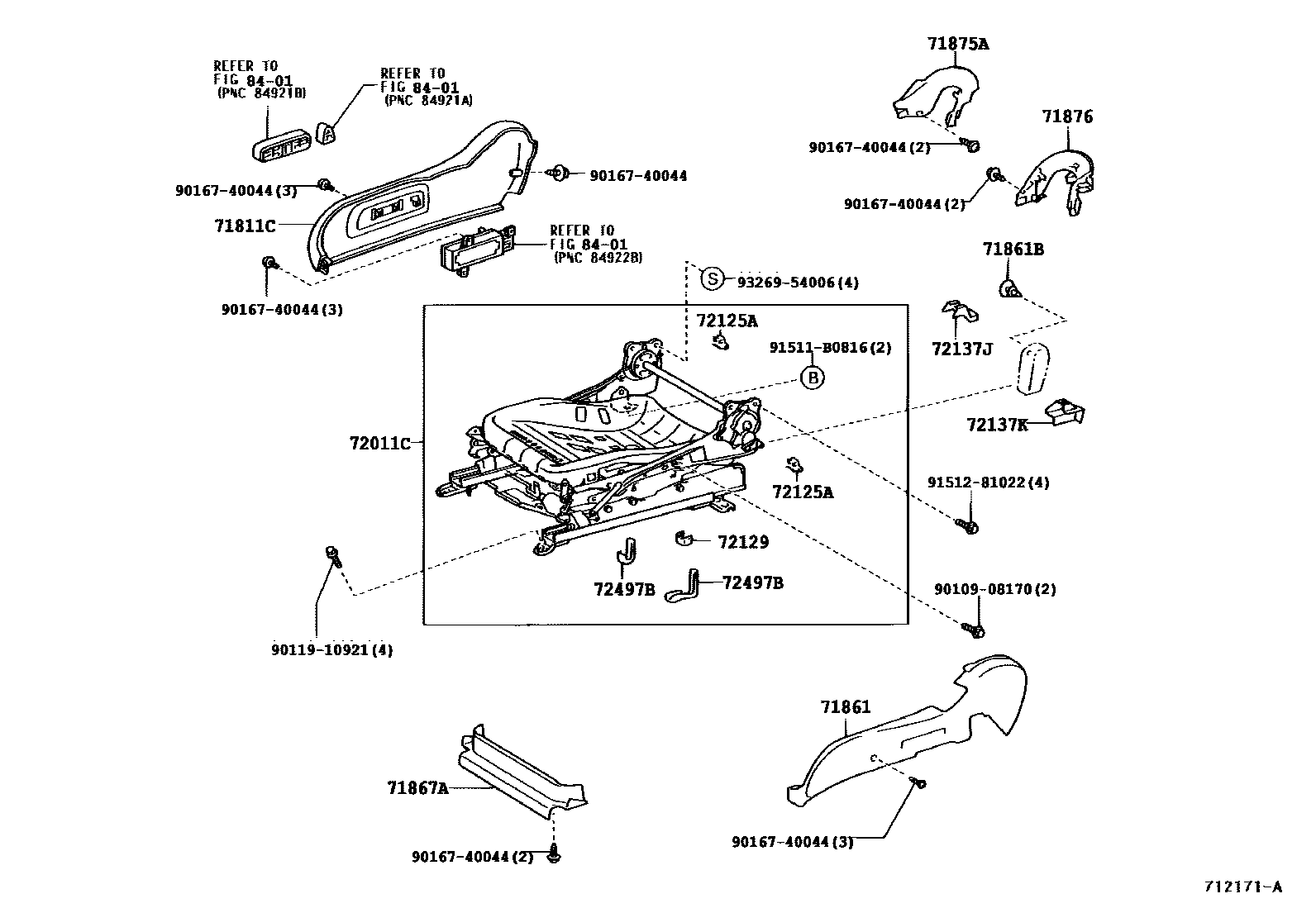

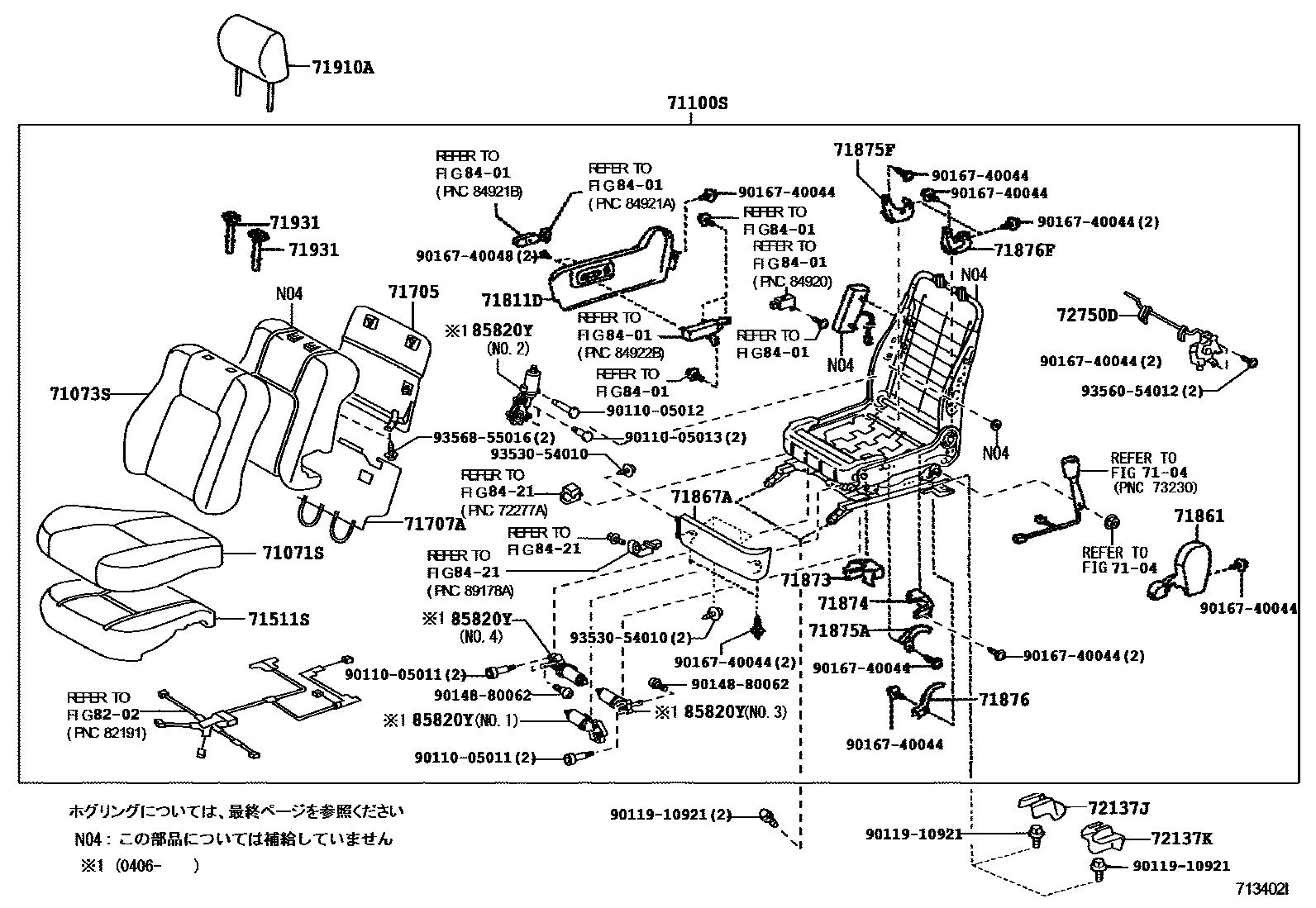

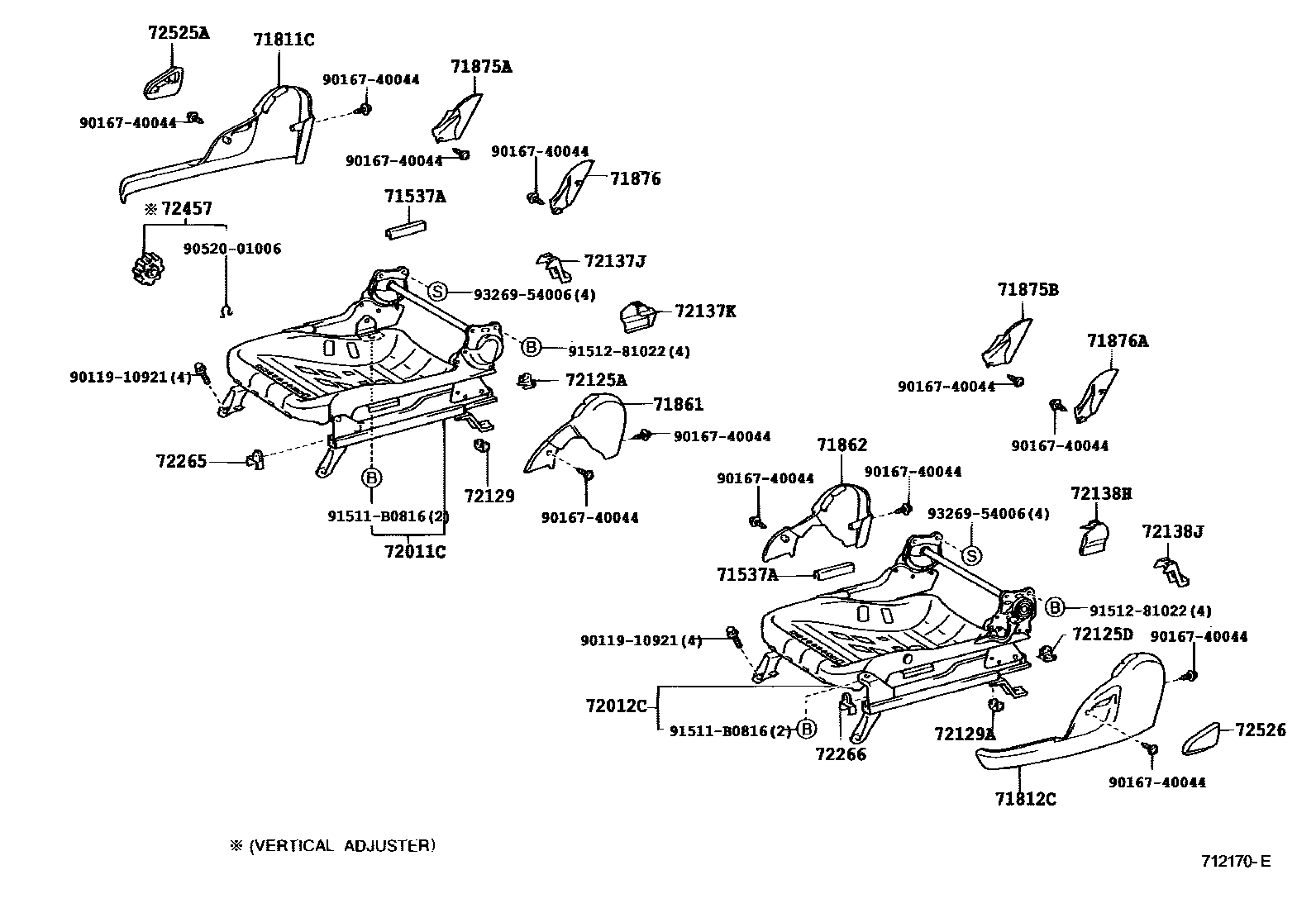

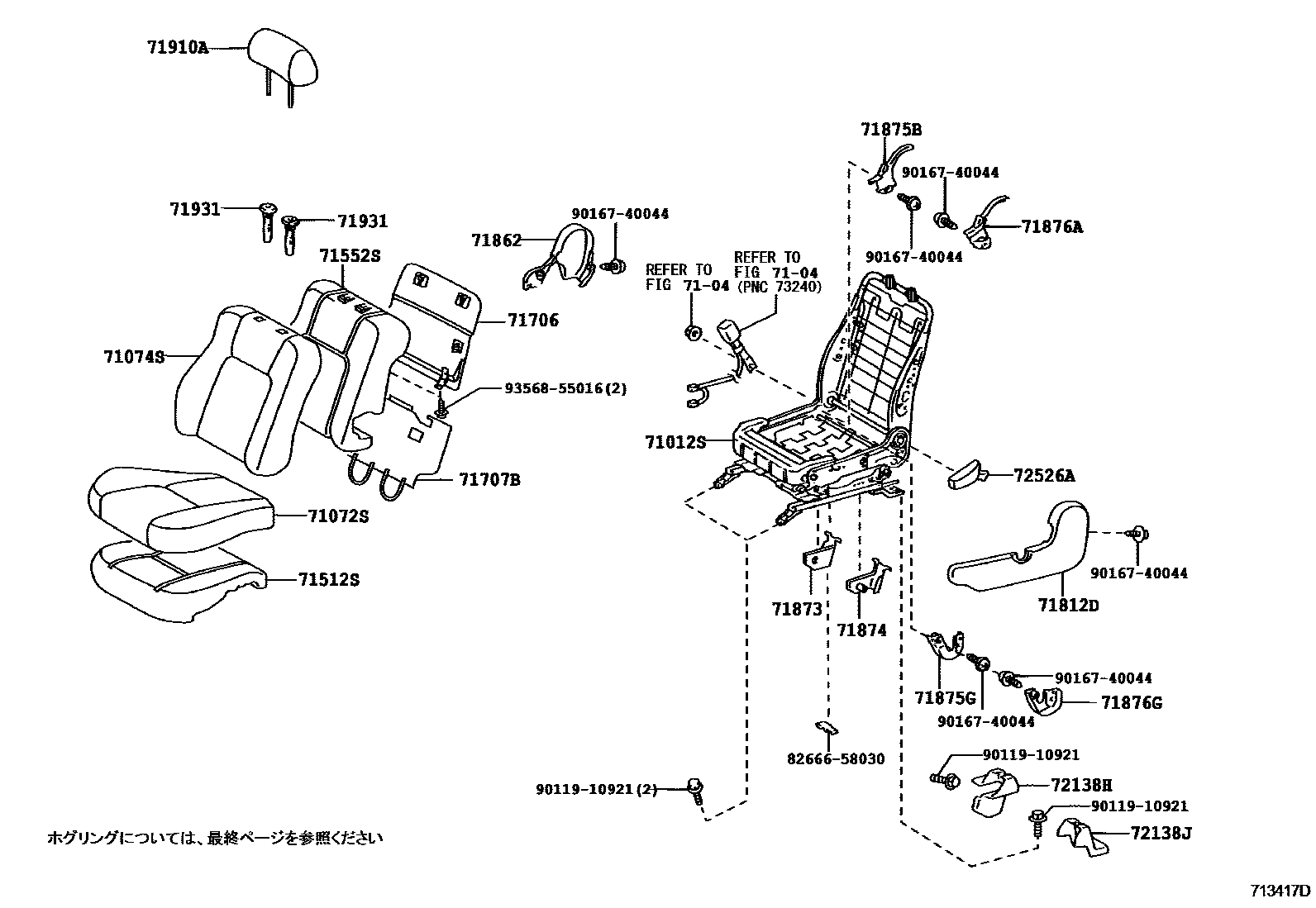

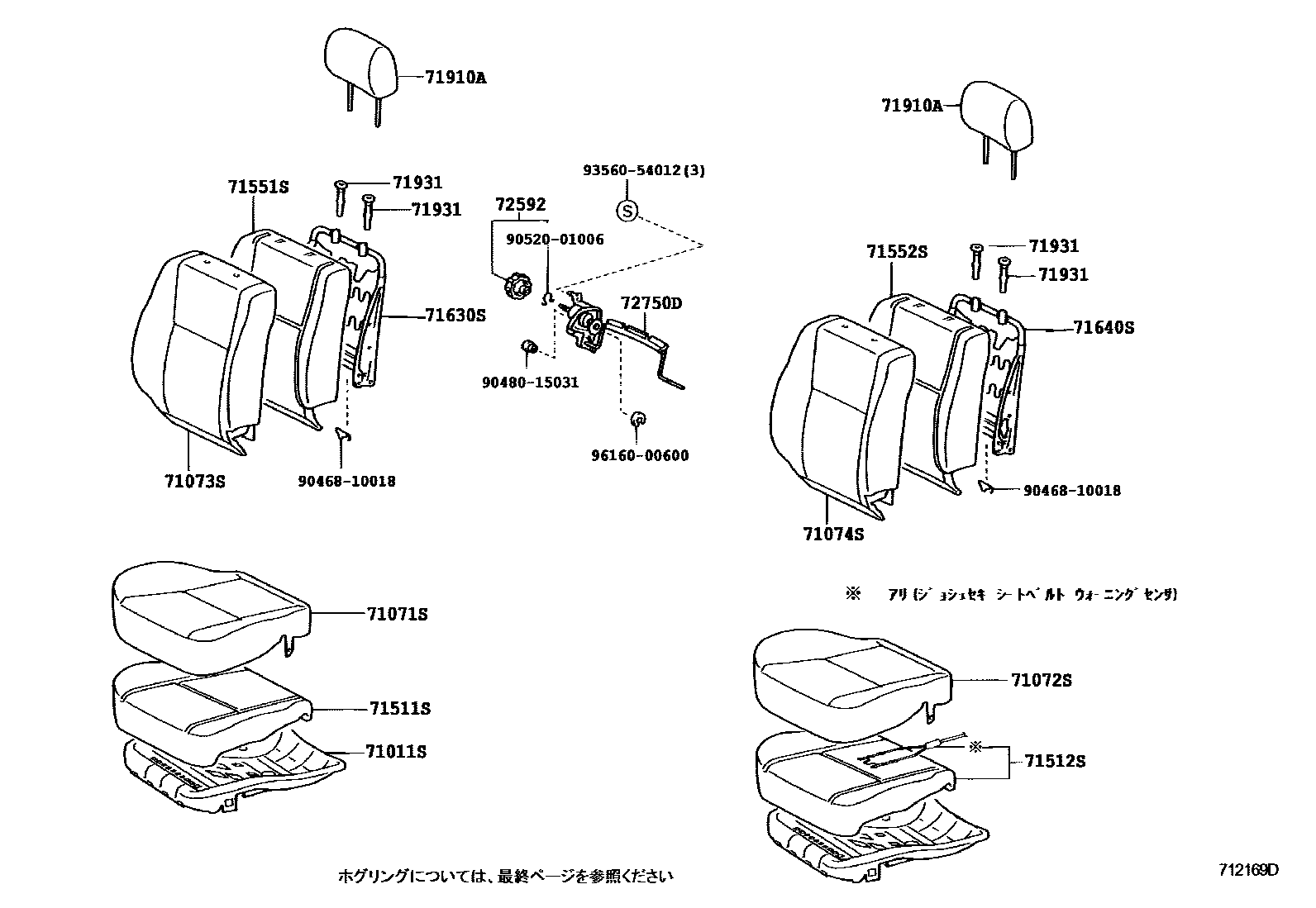

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 11 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-33020 · 71110-33060 · 71110-33080 |
| 71012S | Front left seat cushion frame sub-assembly | 71120-33060 · 71120-33080 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-33110 · 71511-33210 · 71511-33240 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-33030 · 71502-33100 |
| 71537A | Front seat cushion protective cover | 71537-33010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-33090 · 71551-33140 |
| 71552S | Front left seat back cushion (for split seats) | 71551-33090 · 71551-33140 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-33070 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-47010 |
| 71873 | Front right seat cushion lower guard panel | 71874-48020 |
| 71874 | Front left seat cushion lower guard | 71874-48050 |
| 71875F | Right backrest recliner inner cover (for right seat) | 71875-58050 · 71875-58060 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-58060 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71876-58050 · 71876-58060 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-58060 |
| 72011C | Front right seat adjuster sub-assembly | 72010-33240 · 72010-33280 |
| 72012C | Front left seat adjuster sub-assembly | 72020-33180 · 72020-33200 |
| 72125A | Rear seat upper slide rail cover | 72125-13040 · 72125-33020 · 72125-33030 |
| 72125D | Slide rail cover on rear seat No. 2 | 72125-13040 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-33050 |
| 72129A | No. 2 seat slide rail lower rail ring protective cover | 72129-33040 |
| 72265 | Right seat rail upper rail cover | 72265-13040 |
| 72266 | Left seat rail upper rail cover | 72265-13040 |
| 72477 | Height adjuster spacer | 72477-52010 |
| 72497B | Right height adjuster bracket cover | 72498-33010 · 72498-33020 |
| 72750D | Right lumbar support adjuster assembly | 72750-33040 · 72750-33070 · 72750-48020 |
| 85820Y | Electric seat motor assembly | 85801-58010 · 85801-58020 · 85801-58030 · 85801-58040 |
