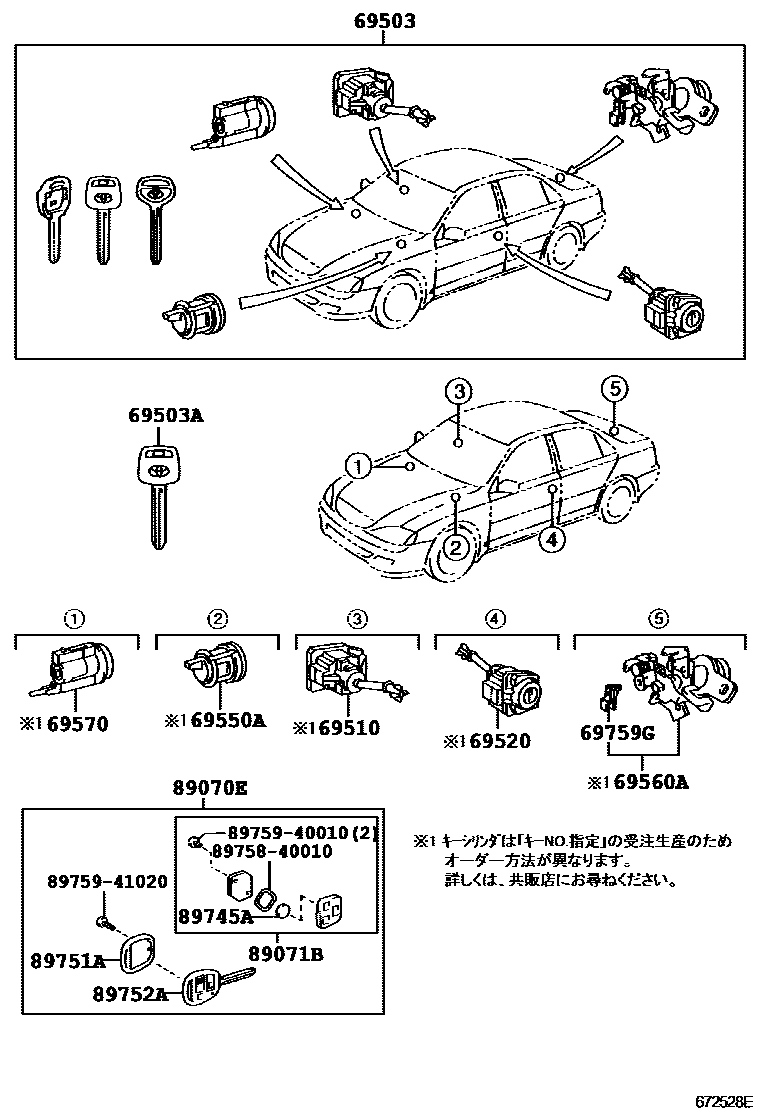

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-3T120 |
| 69503A | external tooth key | 90999-00188 · 90999-00199 |
| 69510 | Right front door lock cylinder assembly | 69510-33130 |
| 69520 | Left front door lock cylinder assembly | 69520-33130 |
| 69550A | Glove box cover lock cylinder assembly | 69550-44010 |
| 69560A | Trunk door lock core assembly | 69560-33200 |
| 69570 | Ignition switch lock cylinder assembly | 69570-33120 |
| 69759G | Trunk door lock core buckle | 69759-24090 |
| 89070E | Remote key assembly | 89070-33480 |
| 89071B | Remote key sub-assembly module assembly | 89071-24011 |
| 89745A | Transmitter battery | 89745-40010 |
| 89751A | Transmitter housing cover | 89751-50010 · 89751-50011 |
| 89752A | transmitter housing | 89752-33060 |
