Toyota CAMRY 后门板和后门玻璃 — Figure 6705

Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 27 PNC and OE references.

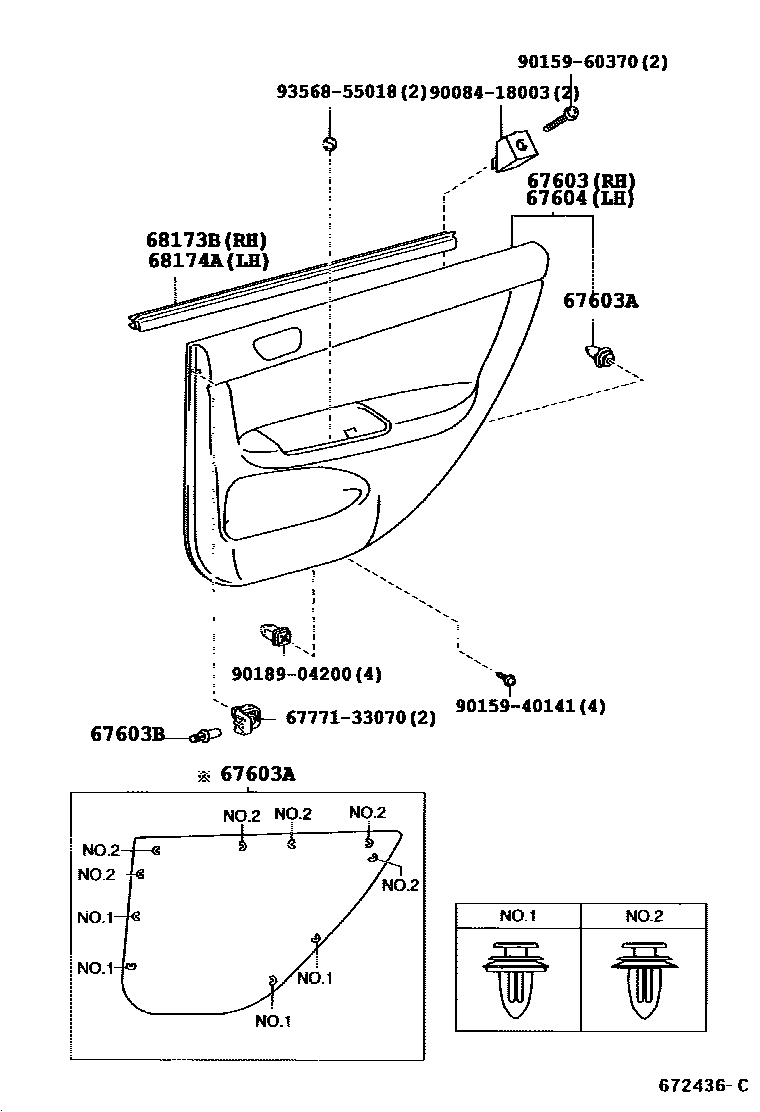

Toyota CAMRY 后门板和后门玻璃 EPC diagram — 672436C
后门板和后门玻璃 — 672436C (200109 – 999999)

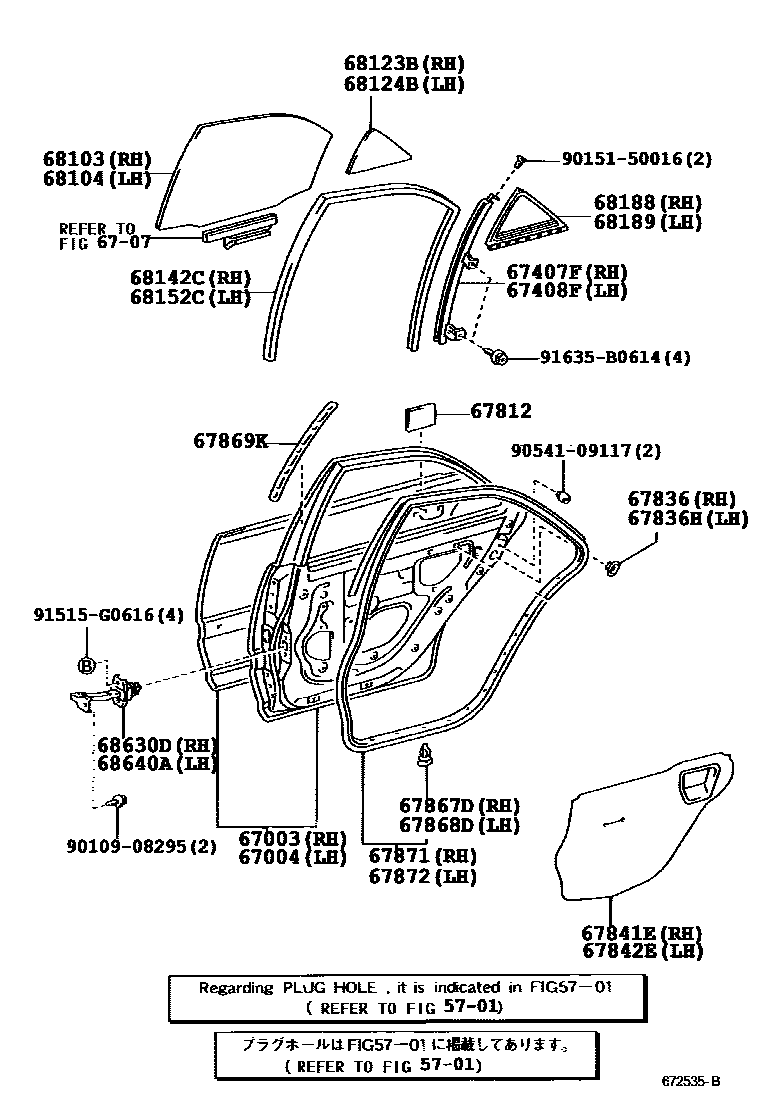

Toyota CAMRY 后门板和后门玻璃 EPC diagram — 672535B
后门板和后门玻璃 — 672535B (200109 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-33120
67004Left rear door panel sub-assembly67004-33120
67407FRight rear door window rear lower frame sub-assembly67407-AA020
67408FLeft rear door window rear lower frame sub-assembly67408-AA020
67603AFixings (for rear door trim)90467-09206 · 90467-10161
67812Rear door silencer pad67811-33040 · 67812-33050
67836Right rear door lock child restraint cover67836-12040
67836HLeft rear door lock child restraint cover67836-12040
67841ERight rear door access hole cover67841-33100
67842ELeft rear door access hole cover67842-33100
67867DRight rear door seal strip fixing67867-12150
67868DLeft rear door seal strip fixing67867-12150
67869KLeft door seal strip clip67869-30080
67871Right rear door sealing strip67871-33060
67872Left rear door sealing strip67872-33060
68103Right rear door glass sub-assembly68113-33100 · 68113-33140
68104Left rear door glass sub-assembly68114-33100 · 68114-33140
68123BRight rear door corner window glass68123-33010 · 68123-33050
68124BLeft rear door corner window glass68124-33010 · 68124-33050
68142CRight rear door glass lift slot68142-33070 · 68142-33071
68152CLeft rear door glass lift slot68152-33070 · 68152-33071
68173BRight rear door glass inner sealing strip68173-33040 · 68173-33041
68174ALeft rear door glass inner sealing strip68174-33050 · 68174-33051
68188Right rear door corner window seal68188-33020 · 68188-33021
68189Left rear door corner window seal68189-33020 · 68189-33021
68630DRight rear door opening limiter assembly68630-33050
68640ALeft rear door opening limiter assembly68640-33050
