Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 2 images and 29 PNC and OE references.

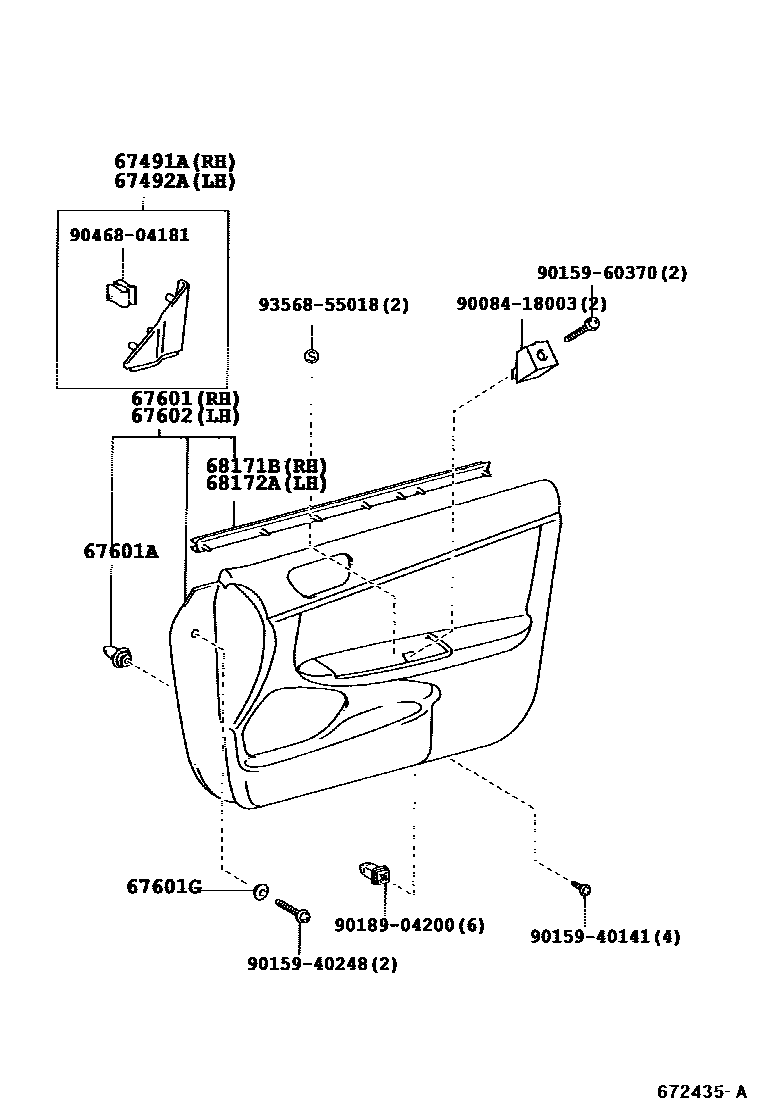

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 672435A
前门板和前门玻璃 — 672435A (200109 – 999999)

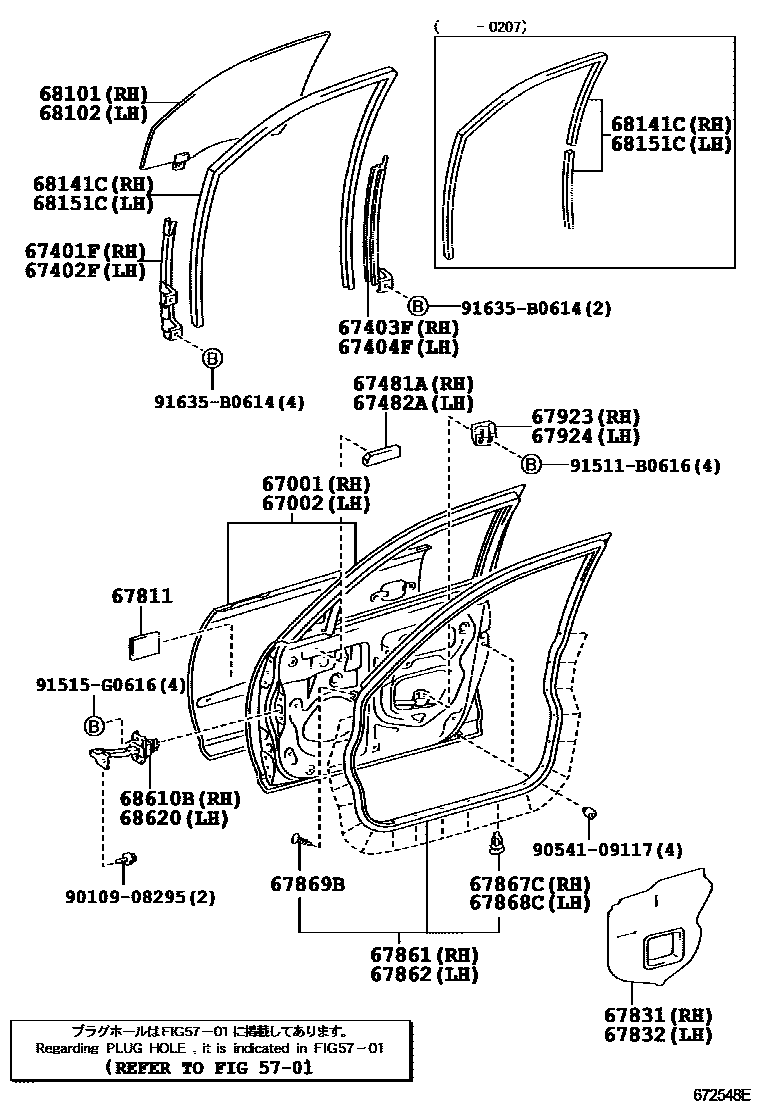

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 672548E
前门板和前门玻璃 — 672548E (200109 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-33110 · 67001-33111
67002Left front door panel sub-assembly67002-33110
67401FRight front door front lower door frame sub-assembly67401-33040
67402FLeft front door front lower door frame sub-assembly67402-33040
67403FRight front door rear lower door frame sub-assembly67403-33020 · 67403-33040
67404FLeft front door rear lower door frame sub-assembly67404-33020 · 67404-33040
67481ARight front door front lower door frame seal67481-33040
67482ALeft front door front lower door frame seal67482-33040
67491ARight front door lower door frame bracket decorative strip67491-33090
67492ALeft front door lower door frame bracket decorative strip67492-33090
67601AFixings (for front door trim)90467-10161
67811Front door silencer pad67811-33040
67831Right front door access hole cover67831-33050
67832Left front door access hole cover67832-33050
67861Right front door seal67861-33040 · 67861-33041
67862Left front door seal67862-33040 · 67862-33041
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
67869BFront door seal strip clip67869-20030
67923Front door No. 1 reinforcement cushion pad67923-33040
67924Front door No. 2 reinforcement cushion pad67924-33020
68101Right front door glass sub-assembly68101-33080 · 68101-33140
68102Left front door glass sub-assembly68102-33080 · 68102-33140
68141CRight front door glass lift channel68141-33070 · 68141-33071 · 68141-33072 · 68141-33073
68151CLeft front door glass lift channel68151-33060 · 68151-33061 · 68151-33062 · 68151-33063
68171BRight front door glass inner sealing strip68171-33040 · 68171-33041 · 68171-33042
68172ALeft front door glass inner sealing strip68172-33040 · 68172-33041 · 68172-33042
68610BRight front door opening limiter assembly68610-33050
68620Left front door opening limiter assembly68620-33050
