Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

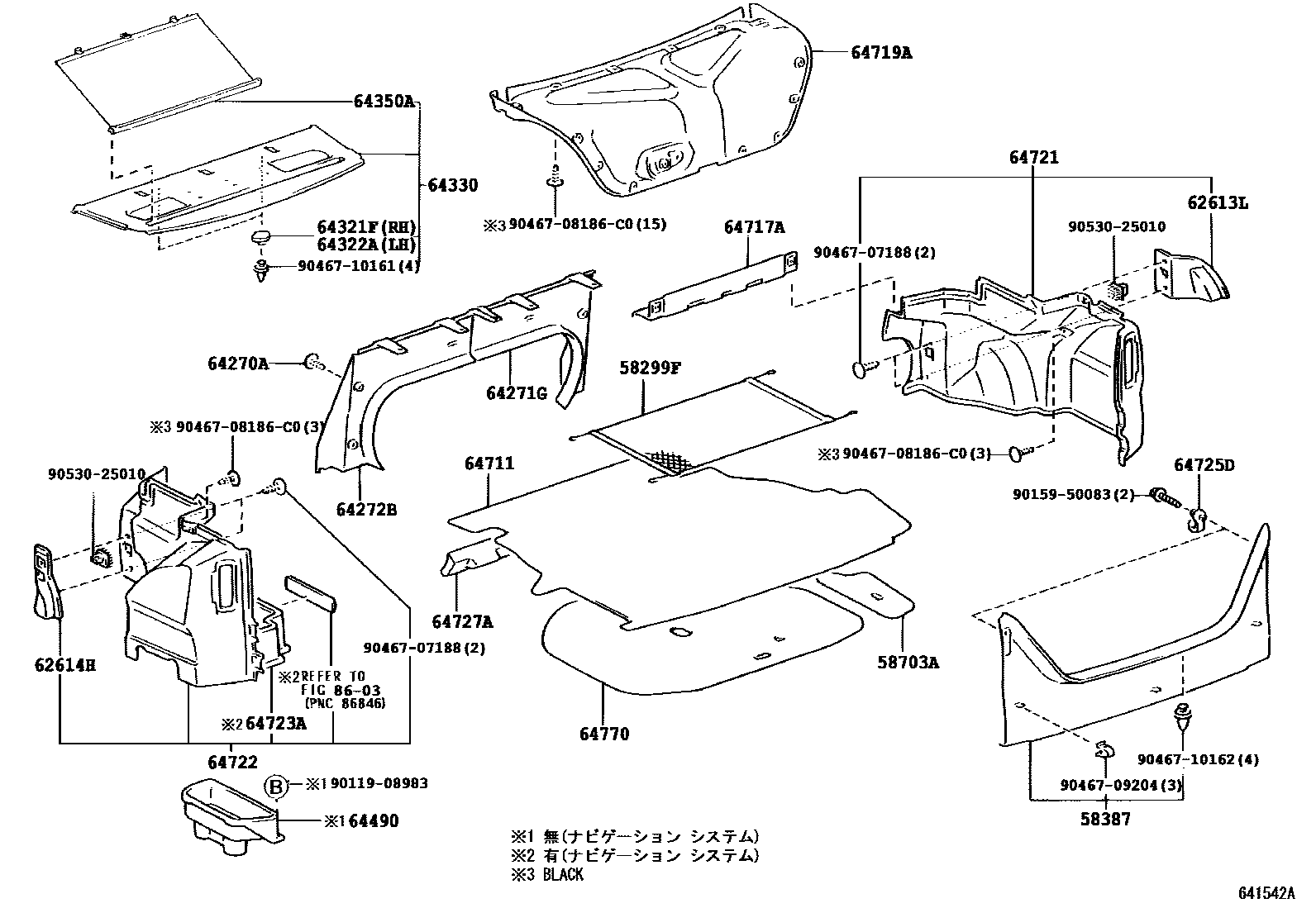

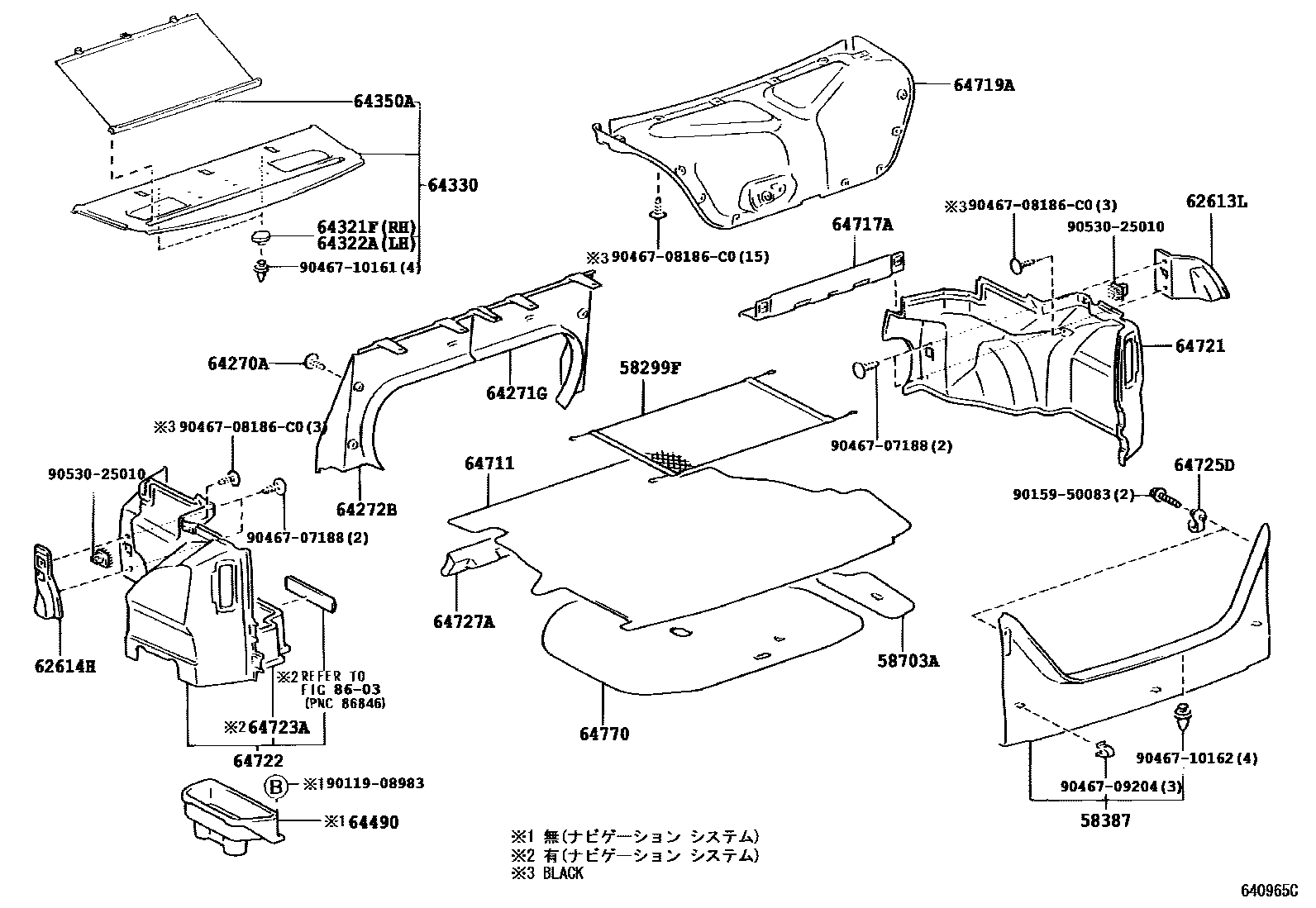

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58299F | Luggage rack net | 58299-AA010 |
| 58387 | Rear floor decorative panel | 58387-33070 |
| 58703A | Trunk door right side decorative cover sub-assembly | 58703-33040 |
| 62613L | No. 2 right wheel cover vibration isolation pad | 62613-33010 |
| 62614H | No. 2 left wheel cover vibration isolation pad | 62614-33010 |
| 64271G | Right compartment partition | 64271-33040 |
| 64272B | Left compartment partition | 64272-33030 |
| 64321F | Glove box decorative panel right bracket | 64323-33030 |
| 64322A | Glove box decorative panel left bracket | 64323-33030 |
| 64350A | Rear window sun visor assembly | 64350-33010 |
| 64725D | Luggage decorative hook No. 1 | 64725-33060 · 64725-33061 |
| 64727A | Luggage interior decorative mat | 64727-33020 |
| 64770 | Spare tire cover assembly | 64770-33060 · 64770-33070 |
