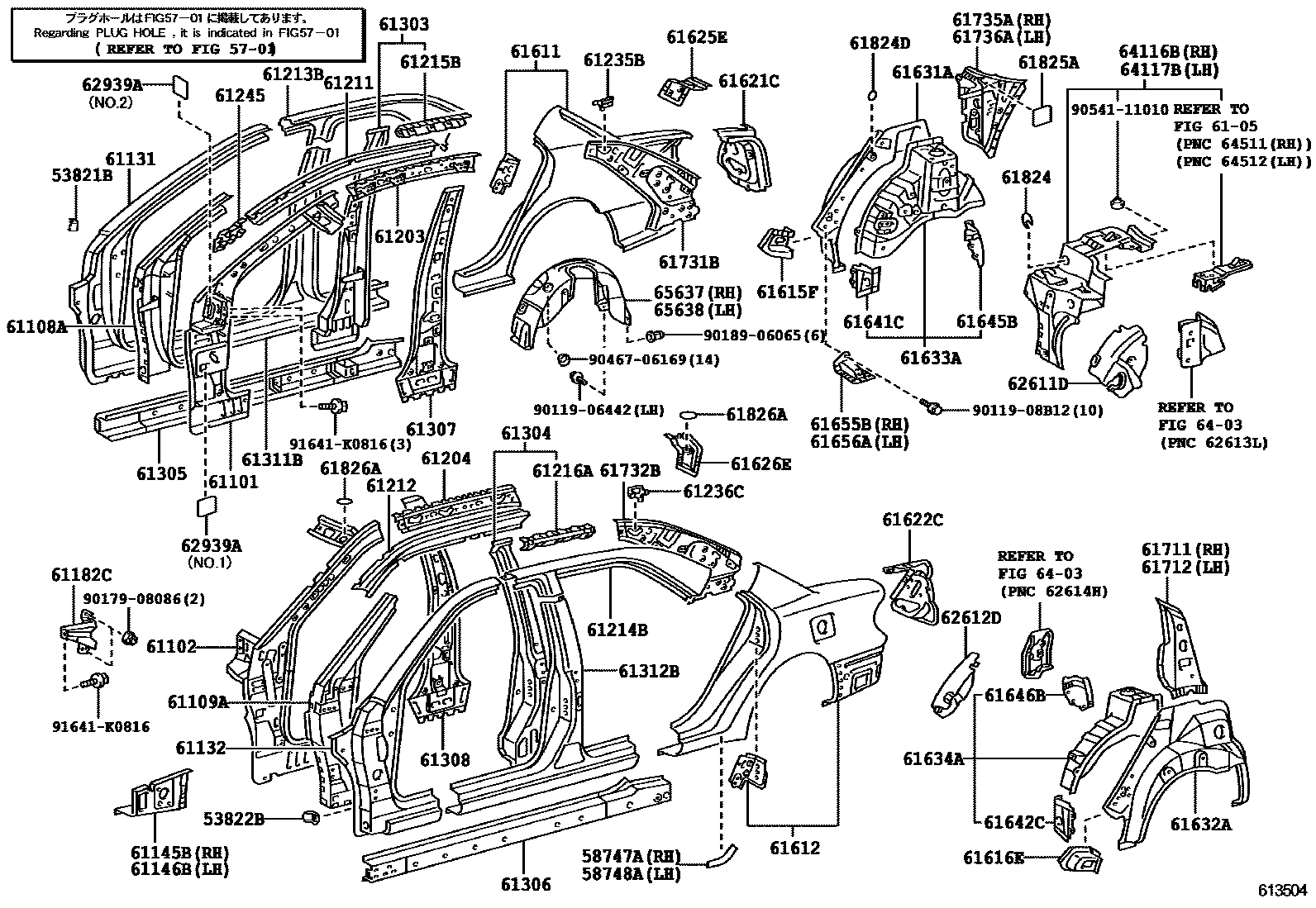

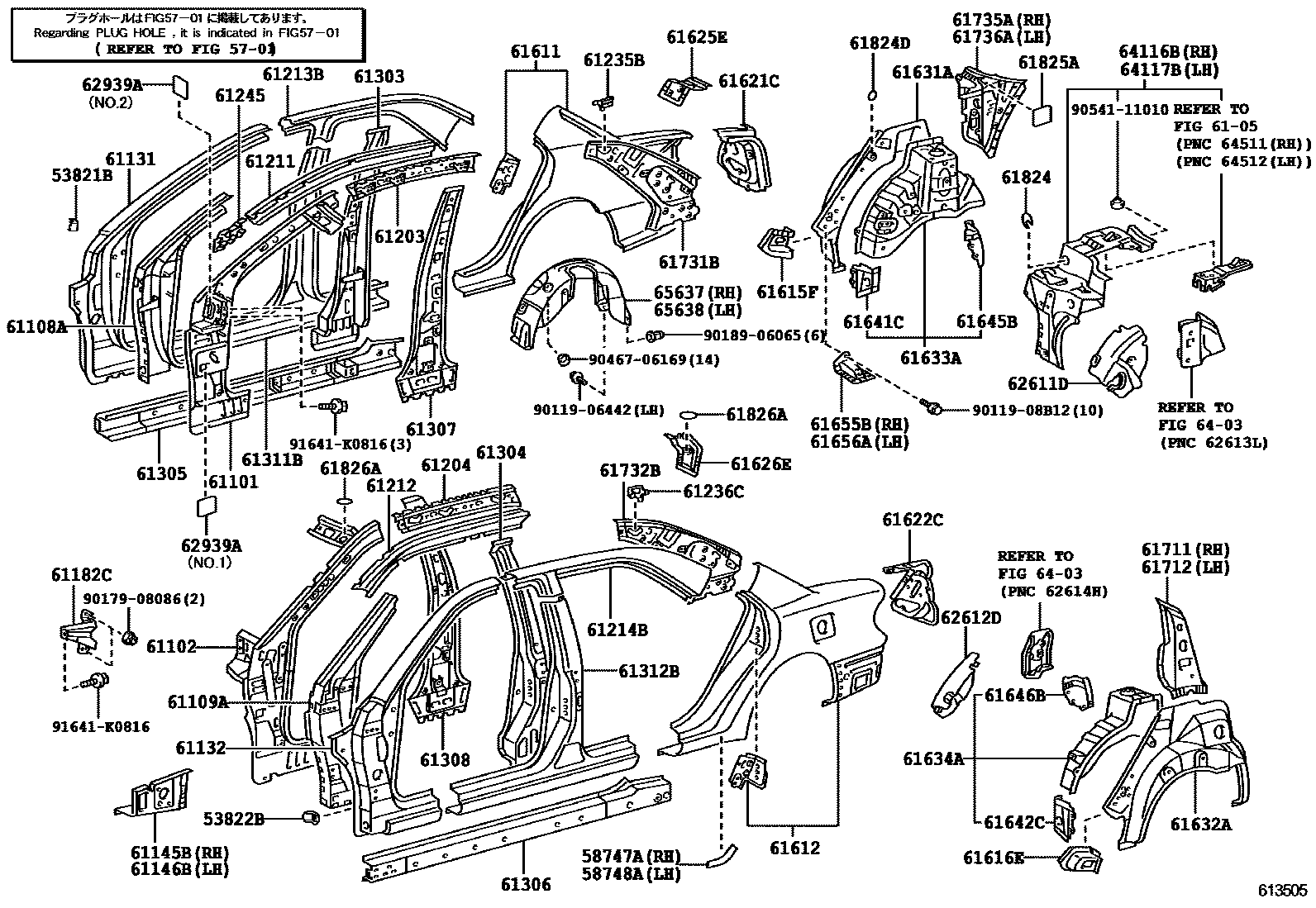

Toyota CAMRY 侧梁 — Figure 6101
Toyota CAMRY EPC diagram 6101, 侧梁, with 2 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-16010 |
| 53822B | Left front fender rear support | 53821-16010 |
| 58747A | Right rear side panel protector | 58747-33010 |
| 58748A | Left rear side panel protector | 58748-33010 |
| 61101 | Right front wall side panel sub-assembly | 61101-33060 |
| 61102 | Left front wall side panel sub-assembly | 61102-33070 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-33120 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-33130 |
| 61131 | Right body outer front upper pillar | 61131-33010 |
| 61132 | Left body outer front upper pillar | 61132-33010 |
| 61145B | Right body front pillar lower corner panel | 61145-33030 |
| 61146B | Left body front pillar lower corner panel | 61146-33030 |
| 61182C | Instrument left bracket | 61182-33010 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-33020 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-33010 |
| 61211 | Roof right outer longitudinal beam | 61211-33020 · 61211-33040 |
| 61212 | Roof left outer longitudinal beam | 61212-33020 · 61212-33040 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-33050 · 61213-33080 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-33050 · 61214-33080 |
| 61215B | No. 3 longitudinal beam on the outer right side of the roof | 61215-33021 |
| 61216A | Left rear roof rail | 61216-33021 |
| 61235B | Auxiliary handle bracket | 61235-33020 |
| 61236C | Auxiliary handle bracket | 61235-33020 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-33010 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-33030 · 61303-33040 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-33030 · 61304-33040 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-33030 · 61305-33050 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-33030 · 61306-33050 |
| 61307 | Right body inner center pillar sub-assembly | 61307-33040 · 61307-33041 |
| 61308 | Left body inner center pillar sub-assembly | 61308-33040 · 61308-33041 |
| 61311B | Right body outer center pillar | 61311-33030 · 61311-33031 |
| 61312B | Left body outer center pillar | 61312-33030 · 61312-33031 |
| 61611 | Right side hoarding | 61601-33240 · 61601-33241 |
| 61612 | left side panel | 61602-33140 · 61602-33141 |
| 61615F | Right side enclosure outer panel reinforcement | 61615-33050 |
| 61616E | Left side enclosure outer panel reinforcement | 61616-33050 |
| 61621C | Luggage right opening slot | 61621-33901 · 61621-33904 |
| 61622C | Luggage trunk left opening slot | 61622-33901 · 61622-33904 · 61622-33905 |
| 61625E | Right rear side panel inner panel extension | 61625-33040 |
| 61626E | Left rear side panel inner panel extension | 61626-33040 |
| 61631A | Right wheel cover outer panel | 61631-33041 |
| 61632A | Left side wheel cover outer panel | 61632-33041 |
| 61633A | Right wheel housing lining panel | 61607-33030 |
| 61634A | Left side wheel housing lining panel | 61608-33030 |
| 61641C | Right front side wheel housing corner panel | 61641-33030 |
| 61642C | Left front side wheel housing corner panel | 61642-33030 |
| 61645B | Right rear side wheel housing corner panel | 61645-33020 |
| 61646B | Left rear side wheel housing corner panel | 61646-33020 |
| 61655B | Right side wheel cover inner corner panel | 61655-33010 |
| 61656A | Left side wheel housing inner corner panel | 61656-33010 |
| 61711 | Roof right side outer panel | 61711-33040 |
| 61712 | Roof left outer panel | 61712-33040 |
| 61731B | Roof right inner panel | 61731-33090 |
| 61732B | Roof left inner panel | 61732-33080 |
| 61735A | Right rear roof inner panel | 61735-33050 |
| 61736A | Left rear roof inner panel | 61736-33050 |
| 61824 | Noise Control Panel No. 1 | 61824-33020 |
| 61824D | Noise Control Panel No. 1 | 61825-30020 |
| 61825A | Noise Control Panel No. 2 | 61825-30020 |
| 61826A | Noise Control Panel No. 3 | 61824-12040 |
| 62611D | Right wheel cover pad | 62611-33020 |
| 62612D | Left side wheel cover pad | 62612-33020 |
| 62939A | Side ventilation silencers | 62939-32020 · 62939-32030 |
| 64116B | Right rear upper reinforcement | 64201-33020 |
| 64117B | Left rear upper reinforcement | 64202-33020 |
| 65637 | Right rear wheel house lining | 65637-33020 |
| 65638 | Left rear wheel house lining | 65638-33020 |
