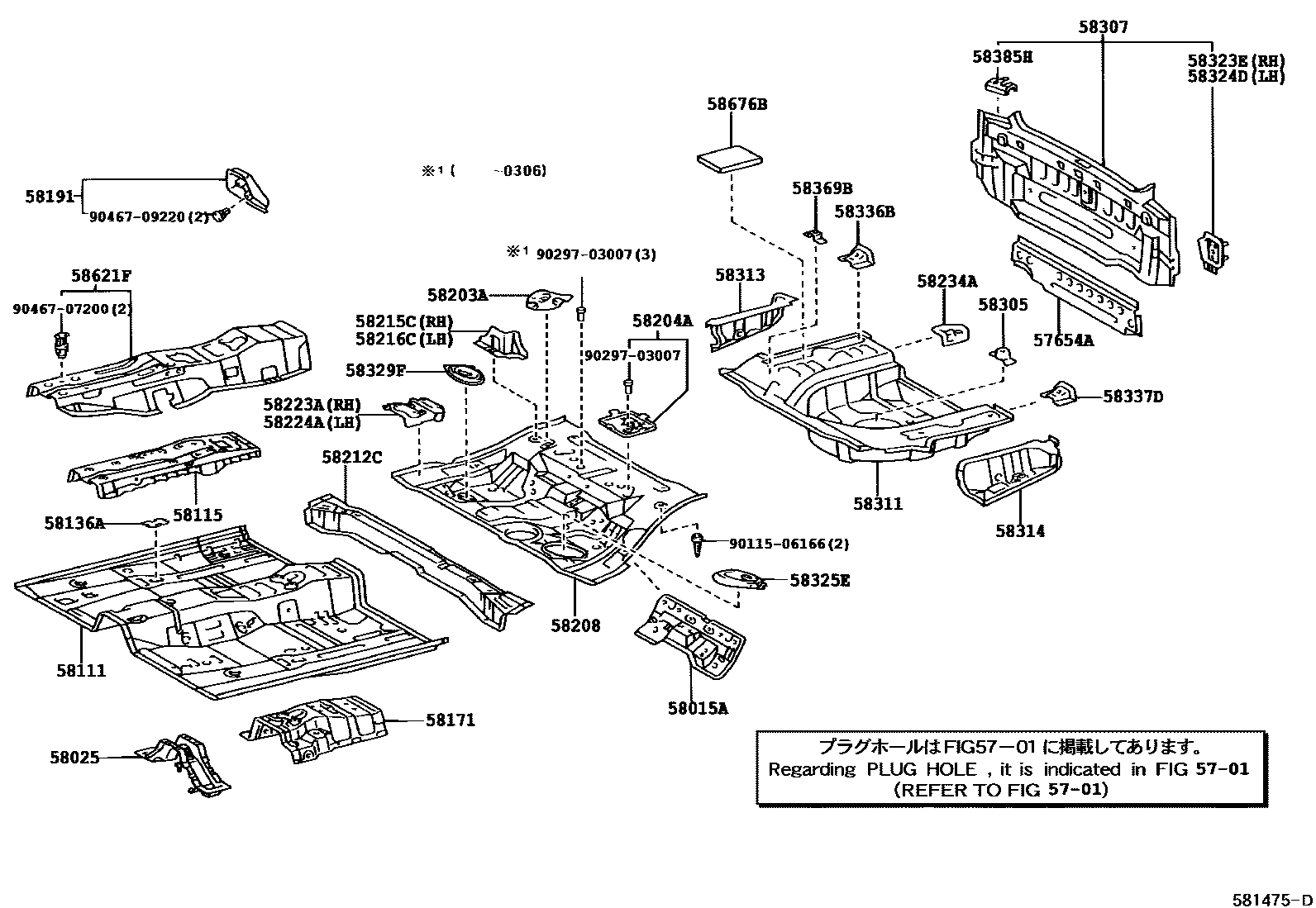

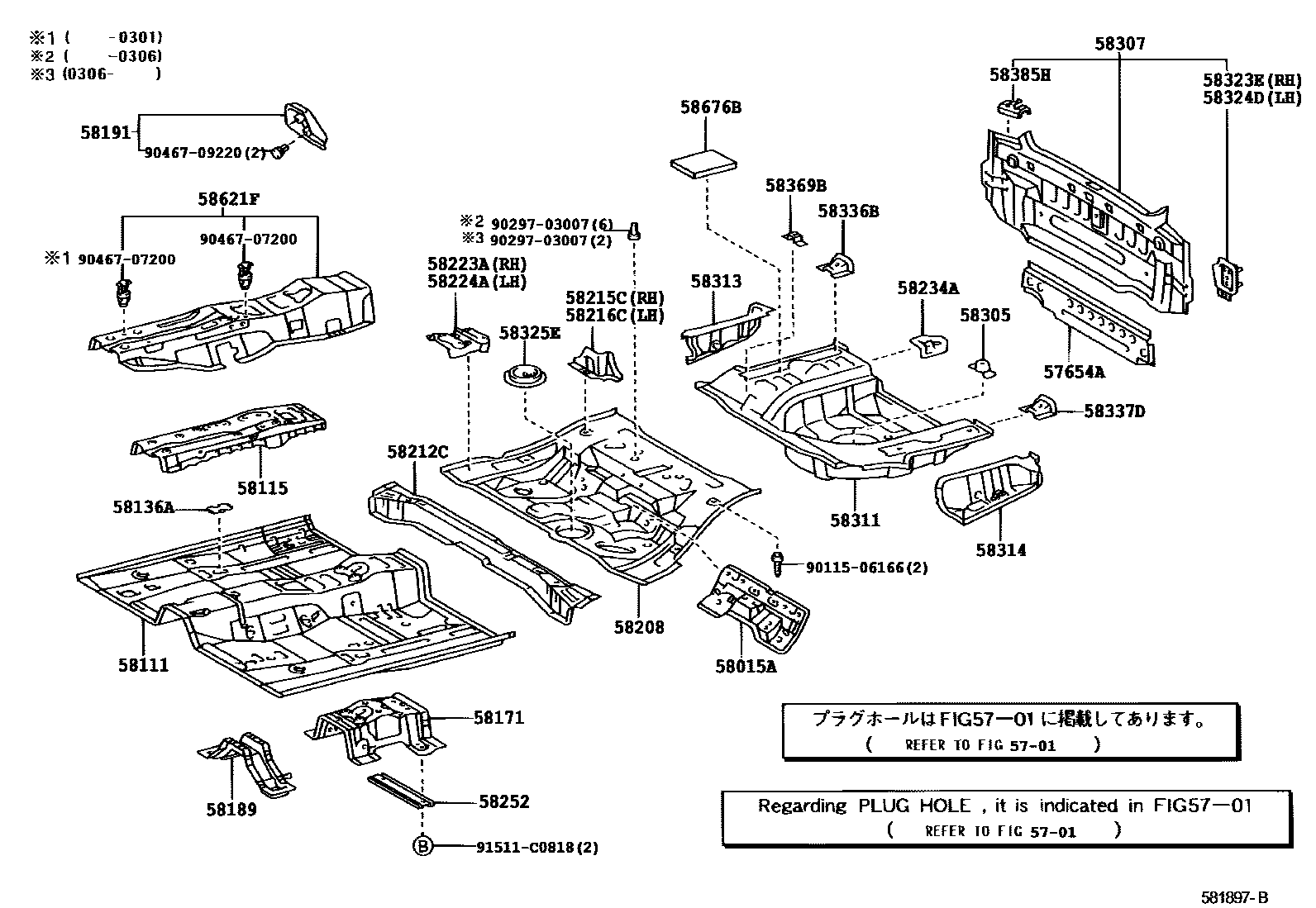

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57654A | Rear floor beam No. 3 | 57654-33010 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-33030 |
| 58025 | Drive shaft center bracket reinforcement sub-assembly | 58025-33010 |
| 58111 | front floor pan | 58111-33900 · 58111-33901 · 58111-33902 · 58111-33903 · 58111-33904 |
| 58115 | Front floor reinforcement | 58013-33060 |
| 58136A | Front floor access hole cover | 58136-33010 |
| 58171 | Parking brake base reinforcement | 58107-33060 · 58107-33070 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-33030 |
| 58191 | Front floor footrest | 58191-33040 |
| 58203A | Center floor right reinforcement sub-assembly | 58203-33030 · 58203-33031 |
| 58204A | Center floor left reinforcement sub-assembly | 58204-33020 |
| 58208 | central floor base | 58211-33120 · 58211-33141 · 58211-33150 · 58211-33151 |
| 58212C | Center floor front floor | 58212-33010 |
| 58215C | Center floor No. 2 right reinforcement | 58215-33040 |
| 58216C | Center floor No. 2 left reinforcement | 58216-33030 |
| 58223A | Floor right panel reinforcement | 58223-33020 |
| 58224A | Floor left panel reinforcement | 58224-33020 |
| 58234A | Exhaust pipe mounting bracket | 58234-41010 |
| 58252 | rear floor bracket | 58252-33020 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-33010 |
| 58307 | Body lower back panel sub-assembly | 58307-33110 |
| 58311 | rear floor pan | 58311-33060 |
| 58313 | Rear floor right panel | 58305-33050 |
| 58314 | rear floor left panel | 58306-33020 |
| 58323E | Rear bumper arm right bracket reinforcement | 58323-33060 |
| 58324D | Rear bumper arm left bracket reinforcement | 58324-33040 |
| 58325E | Rear floor access hole cover | 58325-33020 · 58325-33030 |
| 58329F | Rear floor manhole cover No. 2 | 58329-33010 |
| 58336B | Rear floor pan reinforcement | 58336-33010 |
| 58337D | Rear floor bottom left reinforcement | 58337-33020 |
| 58369B | No. 3 fuel pipe bracket | 58369-32010 |
| 58385H | Rear bumper cover No. 1 bracket | 58385-33020 |
| 58621F | Center console silencer No. 1 | 58621-33050 · 58621-33051 · 58621-33060 · 58621-33080 |
| 58676B | Rear floor No. 1 right muffler pad | 58676-33010 |
