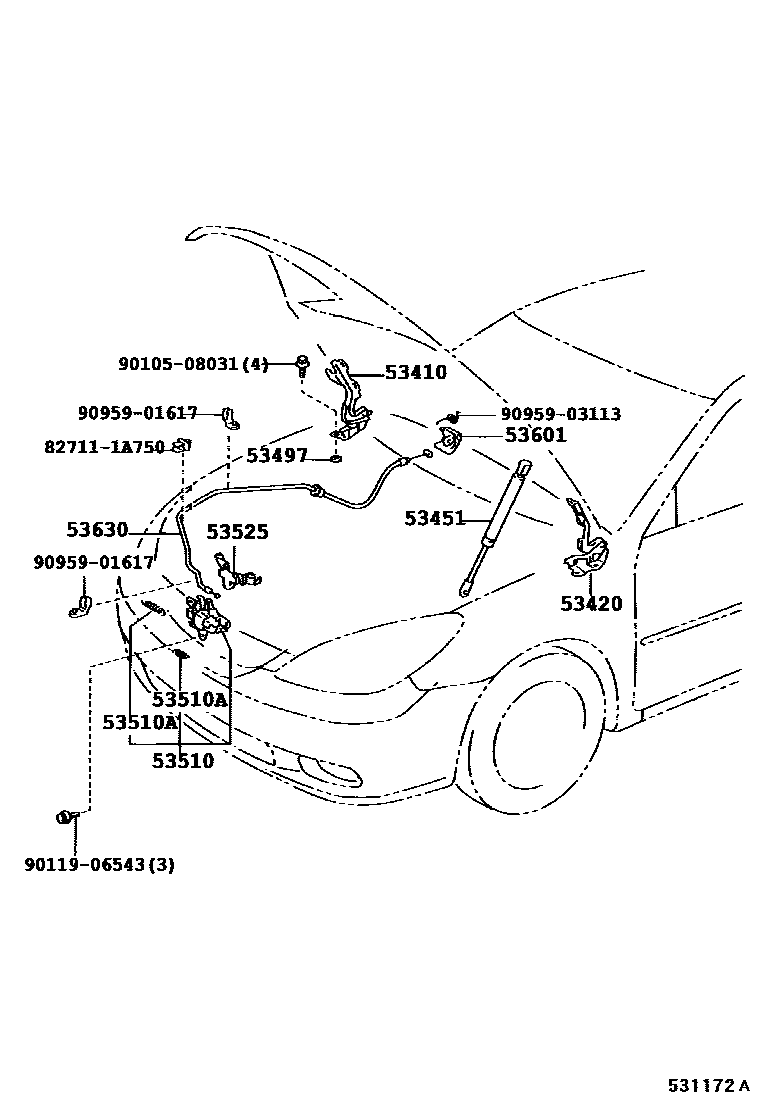

Toyota CAMRY 发动机盖锁和铰链 — Figure 5303
Toyota CAMRY EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-33120 |
| 53420 | Engine cover left hinge assembly | 53420-33120 |
| 53451 | Engine cover support rod | 53440-AA010 · 53440-AA011 |
| 53497 | No. 1 engine cover hinge gasket | 53497-20070 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-33221 |
| 53510A | Tension spring (for hood lock) | 90506-09050 · 90506-20066 |
| 53525 | Engine hood lock opening lever guard | 53525-33040 |
| 53630 | Engine hood lock control cable assembly | 53630-33110 |
