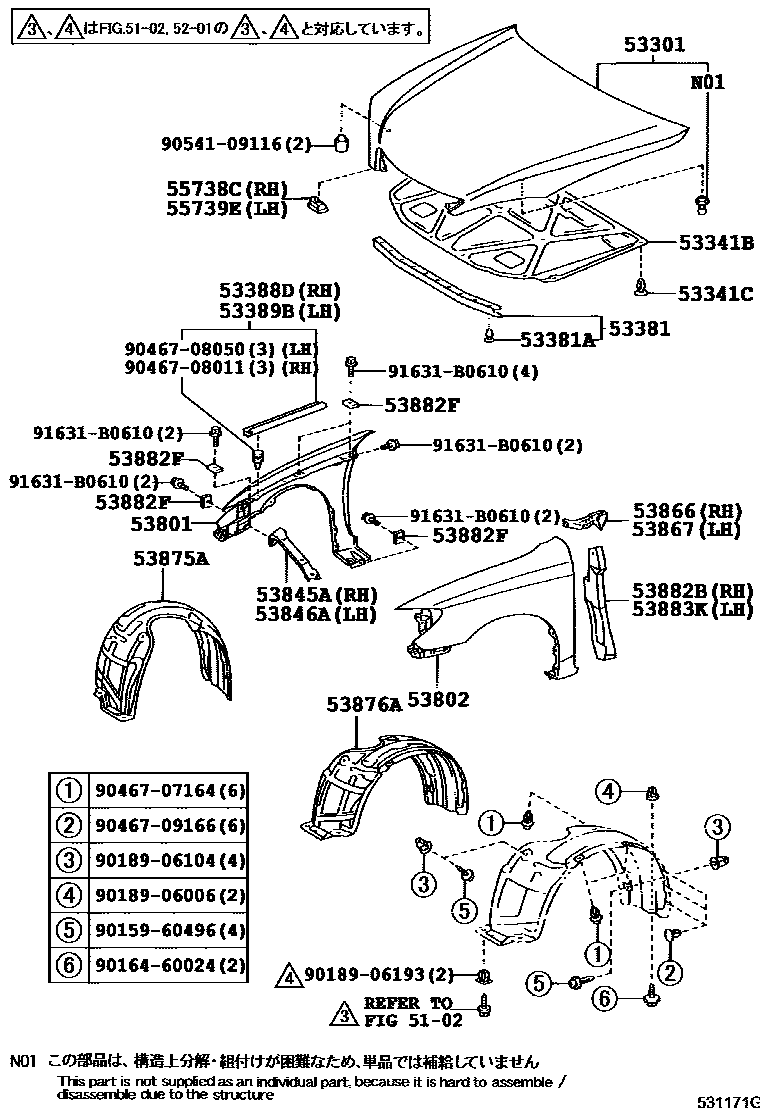

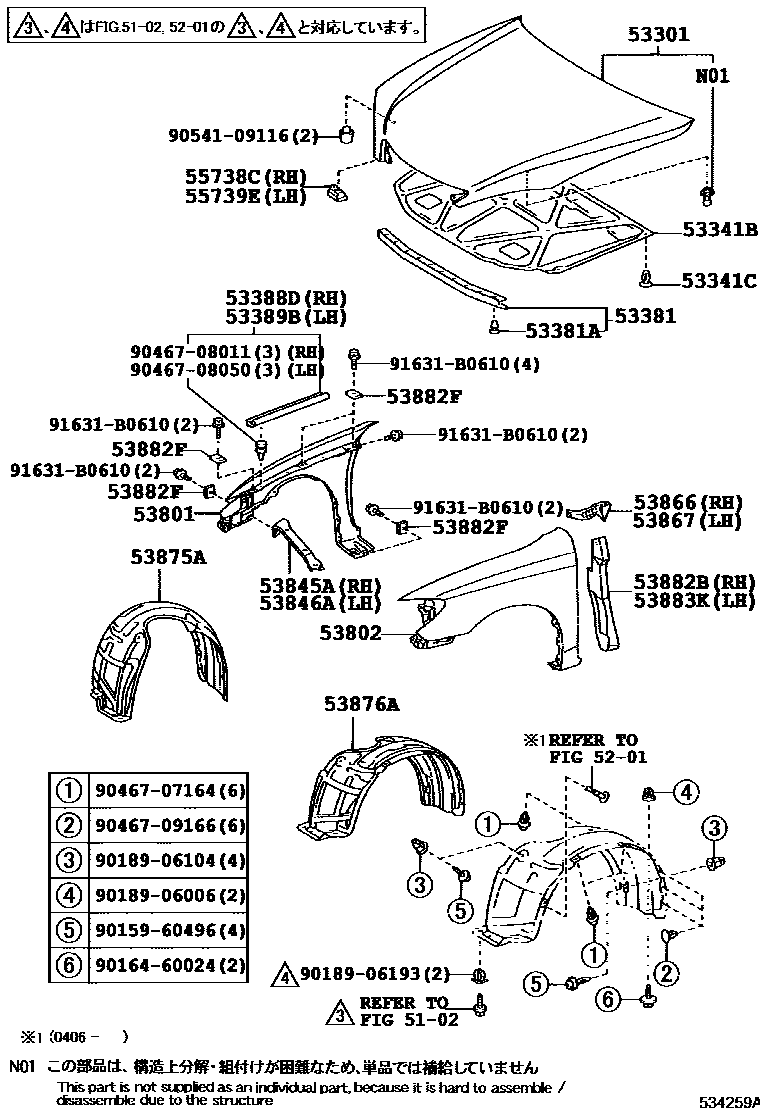

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-33070 |
| 53341B | engine cover gasket | 53341-33080 |
| 53341C | Clip (for engine cover gasket) | 90467-09006 · 90467-09050 |
| 53381 | Engine cover to radiator bracket seal | 53381-33050 · 53381-33051 · 53381-33052 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90080-46010 |
| 53388D | Engine cover to right front fender seal | 53388-33010 · 53388-33011 |
| 53389B | Engine cover to left front fender seal | 53389-33020 · 53389-33021 |
| 53801 | Right front fender sub-assembly | 53801-33100 |
| 53802 | Left front fender sub-assembly | 53802-33100 |
| 53845A | Right front fender fender stay | 53845-33060 |
| 53846A | Left front fender fender stay | 53846-33050 |
| 53866 | Right front fender to cowl side seal | 53866-33040 |
| 53867 | Left front fender to cowl side seal | 53867-33040 |
| 53875A | Right front fender lining | 53875-33110 · 53875-33111 |
| 53876A | Left front fender lining | 53876-33110 · 53876-33111 |
| 53882B | Right front fender seal | 53882-33020 · 53882-33021 |
| 53882F | front fender seal | 53882-16030 |
| 53883K | Left front fender seal | 53883-33020 · 53883-33021 |
| 55738C | Engine cover right block | 55738-33020 |
| 55739E | Engine cover left block | 55739-33020 |
