Toyota CAMRY Rear Spring & Shock Absorber — Figure 4804

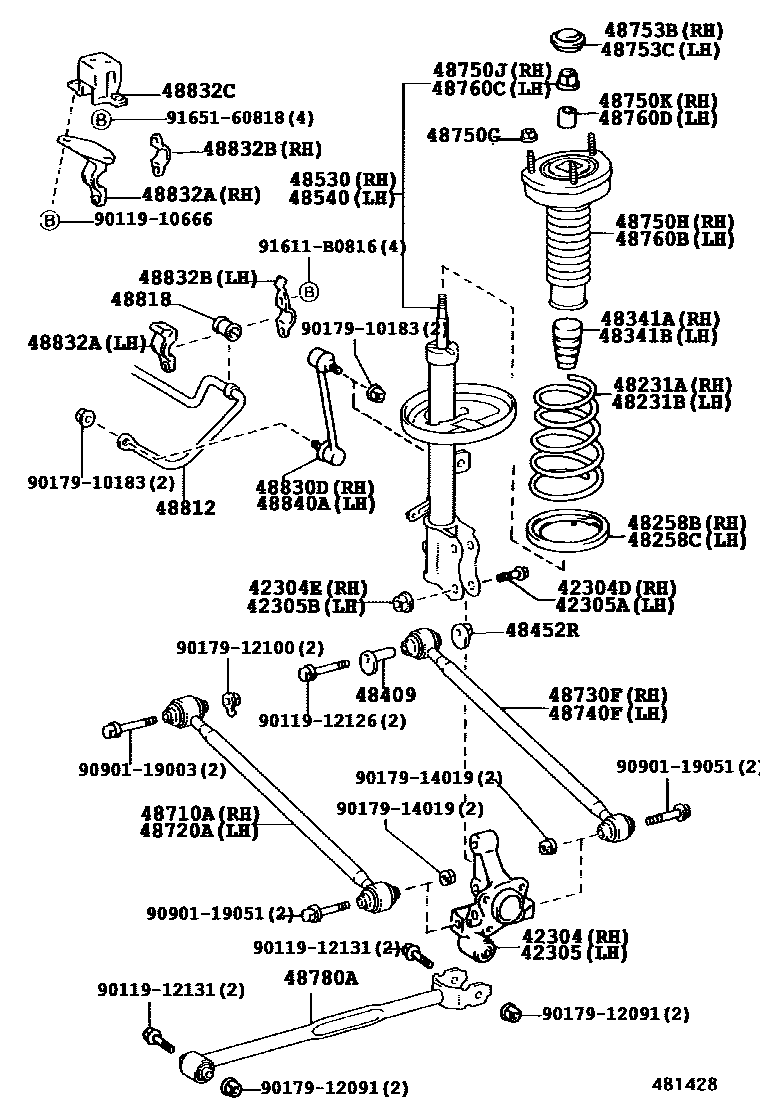

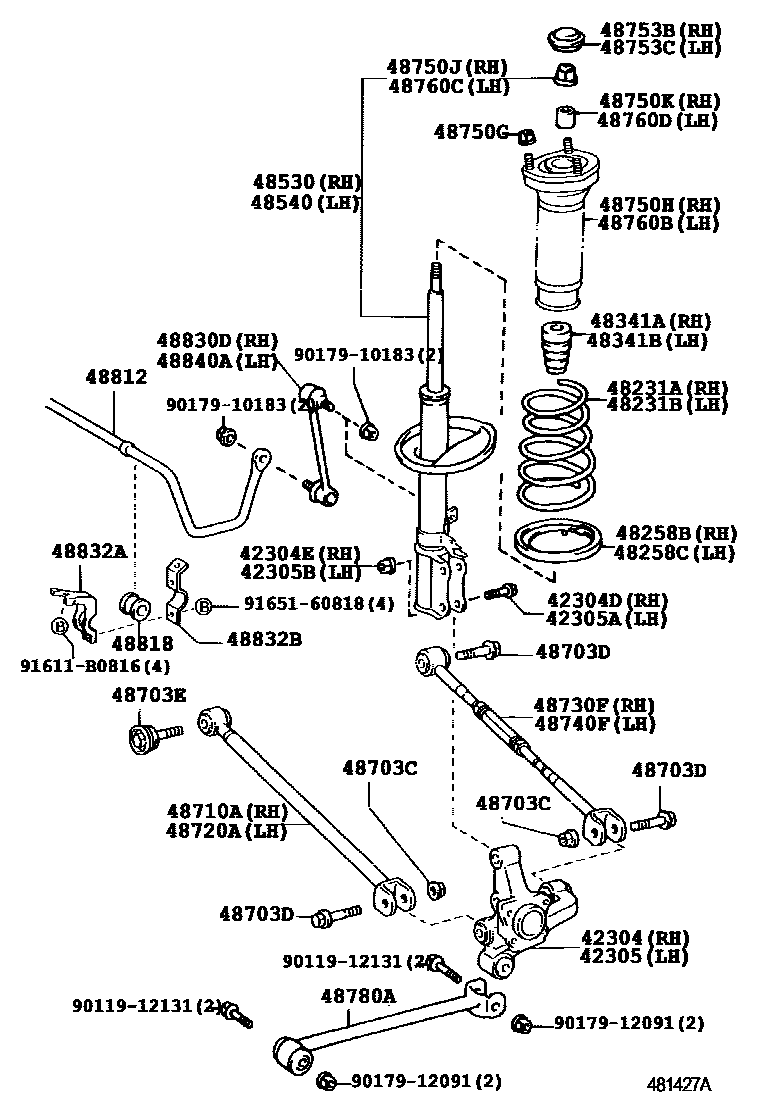

Toyota CAMRY EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-06100 · 42304-33020 · 42304-48010 |
| 42304D | Bolt (for rear axle right bracket) | 90901-05001 |
| 42304E | Nut (for rear axle right bracket) | 90178-15001 |
| 42305 | Rear axle left bracket sub-assembly | 42305-06100 · 42305-33020 · 42305-48010 |
| 42305A | Bolt (for left rear axle bracket) | 90901-05001 |
| 42305B | Nut (for left rear axle bracket) | 90178-15001 |
| 48231A | Right rear coil spring | 48231-33490 · 48231-33491 · 48231-33540 · 48231-33541 |
| 48231B | Left rear coil spring | 48231-33490 · 48231-33491 · 48231-33540 · 48231-33541 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-32020 · 48258-32021 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-32020 · 48258-33010 |
| 48341A | No. 1 right rear spring buffer block | 48341-32053 |
| 48341B | No. 1 left rear spring buffer block | 48341-32053 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-32030 |
| 48452R | No. 2 rear suspension toe adjustment piece | 48452-32030 |
| 48530 | Right rear shock absorber assembly | 48530-39755 · 48530-39765 · 48530-39795 · 48530-39885 · 48530-39895 · 48530-80113 · 48530-80238 |
| 48540 | Left rear shock absorber assembly | 48540-39385 · 48540-39395 · 48540-39425 · 48540-39465 · 48540-39475 · 48540-39505 · 48540-39645 |
| 48703C | Nut (for rear suspension arm) | 90179-14068 |
| 48703D | Washers (for rear suspension arms) | 90119-14079 |
| 48703E | Bolts (for rear suspension arms) | 90901-19045 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-33070 · 48710-33090 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-33070 · 48710-33090 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-33080 · 48730-33100 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-33100 · 48740-33080 |
| 48750G | Nut (for rear suspension mount) | 90178-08007 |
| 48750H | Right rear suspension support assembly | 48750-33060 · 48750-33061 · 48750-33062 · 48750-33070 · 48750-33071 · 48750-33072 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 90177-14001 |
| 48750K | Collar (for rear mount to right rear shock absorber) | 90387-15027 |
| 48753B | Right rear suspension support cover No. 1 | 48753-33010 |
| 48753C | Left rear suspension support cover No. 1 | 48753-33010 |
| 48760B | Left rear suspension support assembly | 48760-33060 · 48760-33061 · 48760-33062 · 48760-33070 · 48760-33071 · 48760-33072 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 90177-14001 |
| 48760D | Collar (for rear mount to left rear shock absorber) | 90387-15027 |
| 48780A | Rear support rod assembly | 48780-33030 · 48780-48020 |
| 48812 | rear stabilizer bar | 48812-33170 · 48812-33190 |
| 48818 | Rear stabilizer bar bushing | 48818-48020 |
| 48830D | Right rear stabilizer bar link assembly | 48830-21010 · 48830-48010 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-32050 · 48832-32070 · 48832-33040 |
| 48832B | Rear stabilizer bar bracket No. 2 | 48832-32080 · 48832-33030 · 48832-33050 |
| 48832C | Rear stabilizer bar No. 3 bracket | 48832-32090 |
| 48840A | Left rear stabilizer bar link assembly | 48830-21010 · 48830-48010 |
