Toyota CAMRY 制动配管和卡箍 — Figure 4708

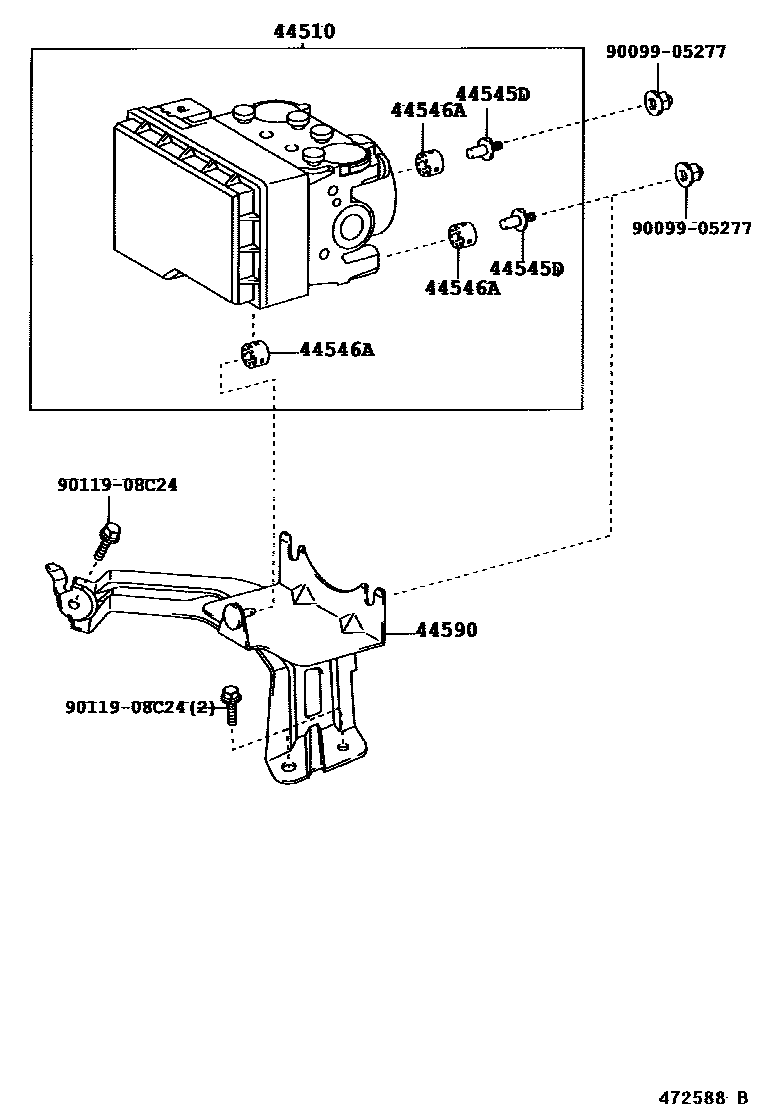

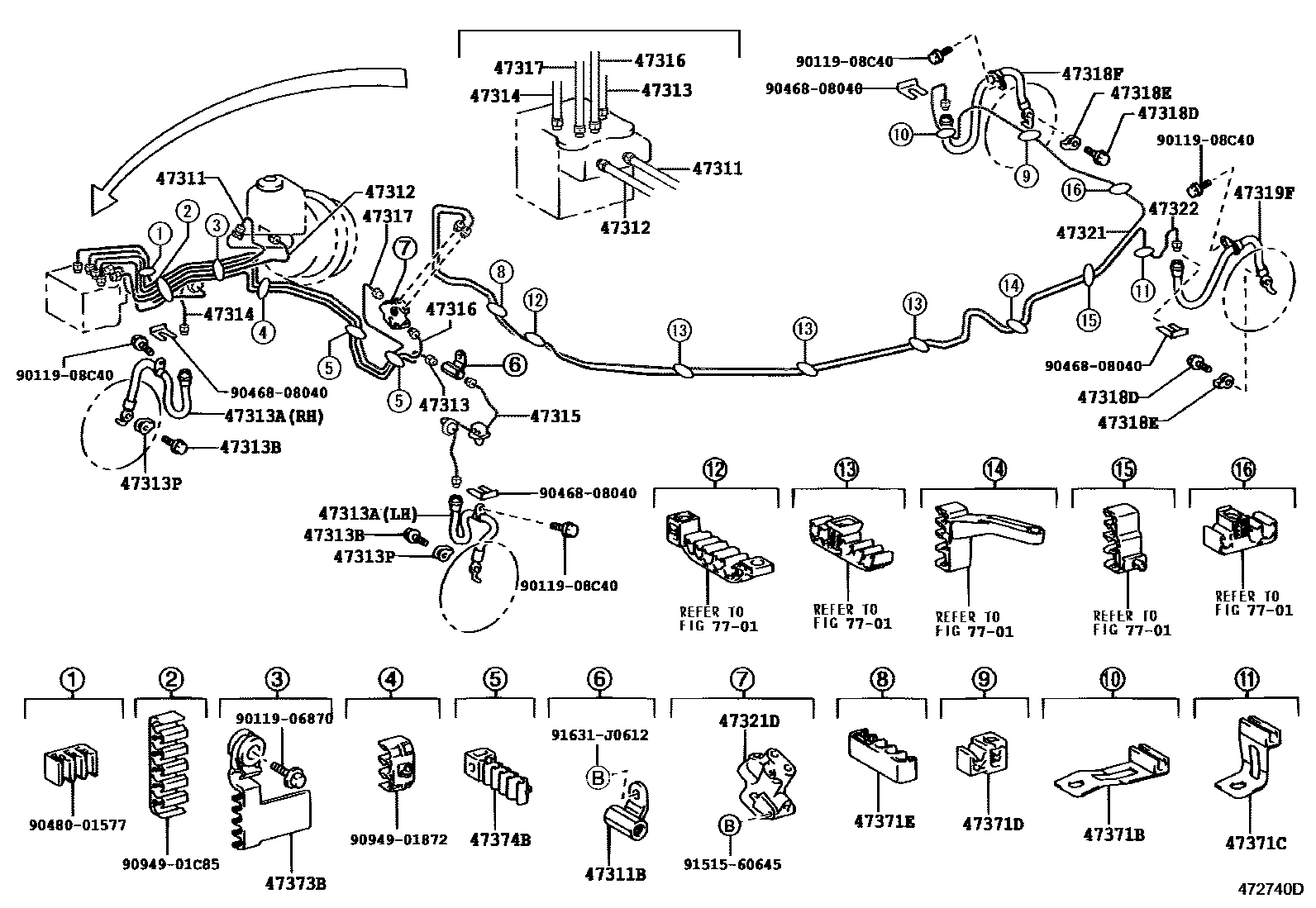

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-33100 |
| 44545D | Brake actuator bolt mount | 44545-42090 |
| 44546A | Brake actuator bolt cushion | 44546-42090 |
| 44590 | Brake actuator bracket assembly | 44590-33090 |
| 47311 | No. 1 front brake pipe | 47311-33080 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10213 |
| 47312 | No. 2 front brake pipe | 47312-33100 |
| 47313 | No. 3 front brake pipe | 47313-33100 |
| 47313A | No. 1 front flexible hose | 90947-02C89 · 90947-02C90 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-33070 |
| 47315 | No. 5 front brake pipe | 47315-33170 |
| 47316 | No. 6 front brake pipe | 47316-33200 |
| 47317 | No. 7 front brake pipe | 47317-33190 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02C93 · 90947-02C95 |
| 47319F | Left rear flexible hose | 90947-02C94 · 90947-02C96 |
| 47321 | No. 1 rear brake pipe | 47321-33130 · 47321-33140 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90412-10140 |
| 47322 | No. 2 rear brake pipe | 47322-33100 · 47322-33110 |
| 47371B | No. 6 brake pipe clamp | 47371-32130 |
| 47371C | No. 7 brake pipe clamp | 47371-32140 |
| 47371D | No. 8 brake pipe clamp | 90949-01B45 |
| 47371E | No. 9 brake pipe clamp | 90949-01C53 |
| 47373B | No. 3 brake pipe clamp | 90949-01C55 |
| 47374B | No. 4 brake pipe clamp | 90949-01C56 |
