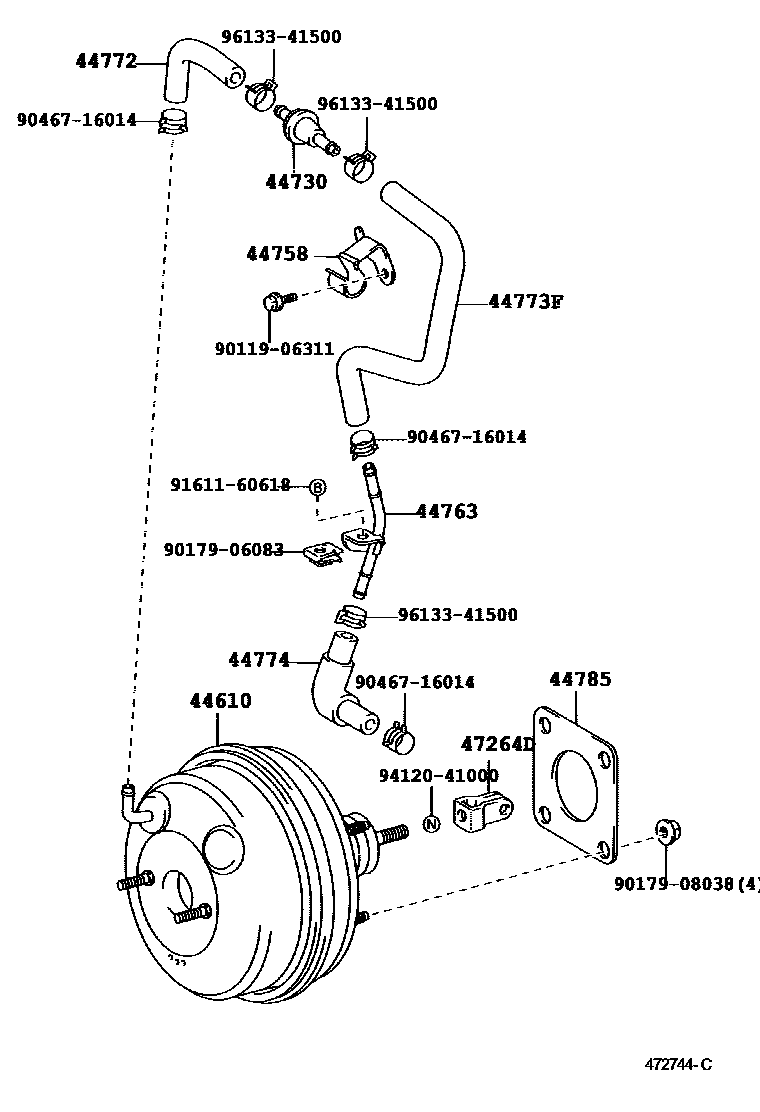

Toyota CAMRY 制动助力器和真空管 — Figure 4703
Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-33730 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 |
| 44758 | Vacuum check valve bracket | 44758-33080 |
| 44763 | booster vacuum tube | 44763-33050 |
| 44772 | Hoses (check valve to connector tube) | 44772-33110 |
| 44773F | Hoses (connector to check valve) | 44773-33100 |
| 44774 | Hoses (joints to connector tubes) | 44774-33070 |
| 44785 | brake booster pad | 44785-20020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-12060 · 47264-63010 |
