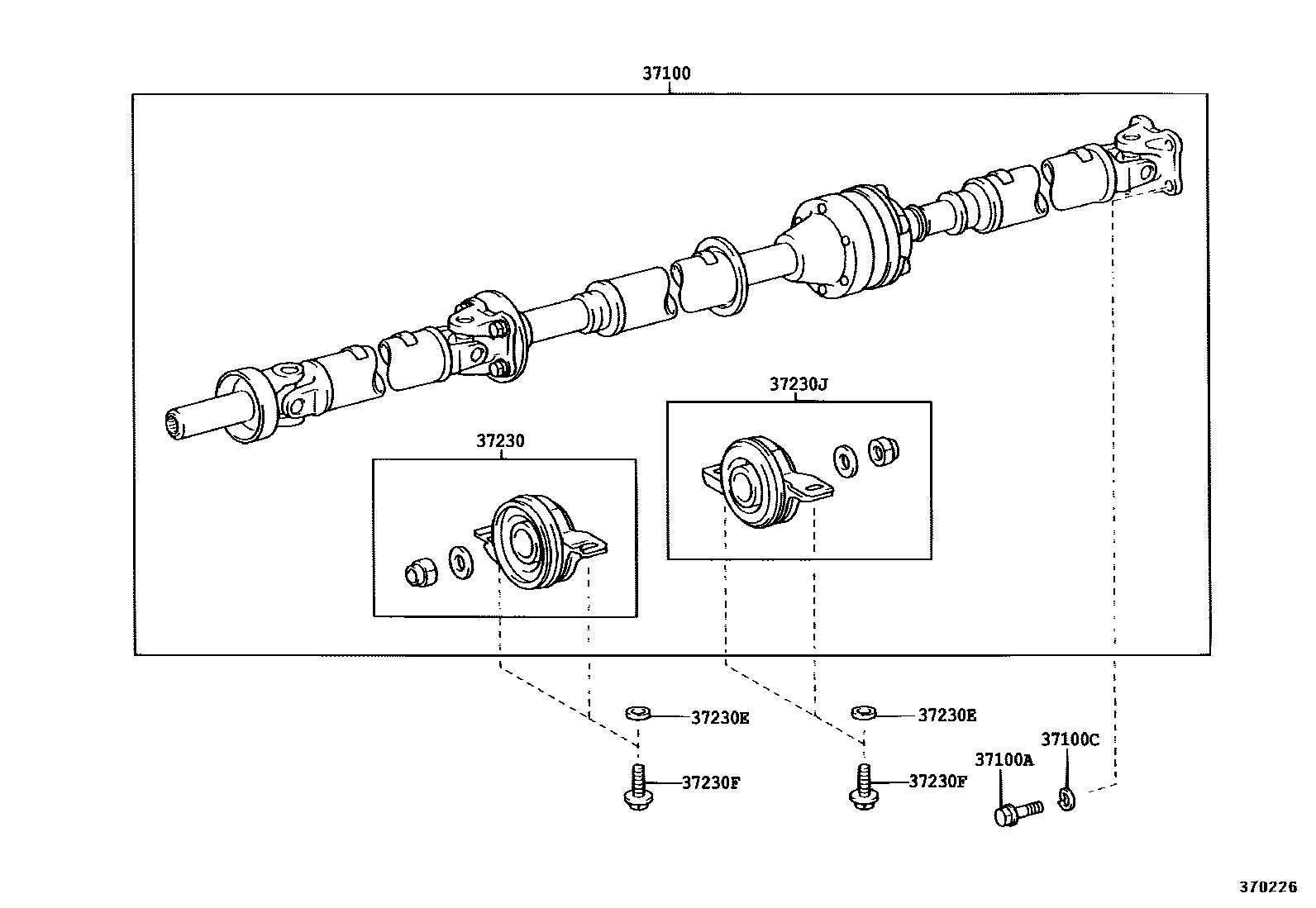

Toyota CAMRY Propeller Shaft & Universal Joint — Figure 3701
Toyota CAMRY EPC diagram 3701, Propeller Shaft & Universal Joint, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 37100 | Drive shaft assembly with central bearing | 37100-33020 |
| 37100A | No. 1 bolt (used to secure the drive shaft and differential) | 90105-10423 |
| 37100C | No. 1 washer (used to secure drive shaft and differential) | 90204-10002 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-39015 |
| 37230E | No. 1 washer (for intermediate support bearing) | 90201-10081 · 90201-10083 · 90201-10084 · 90201-10095 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-10444 |
| 37230J | No. 2 intermediate support bearing assembly | 37230-39025 |
