Toyota CAMRY 阀体和滤油网(ATM) — Figure 3512

Toyota CAMRY EPC diagram 3512, 阀体和滤油网(ATM), with 2 images and 29 PNC and OE references.

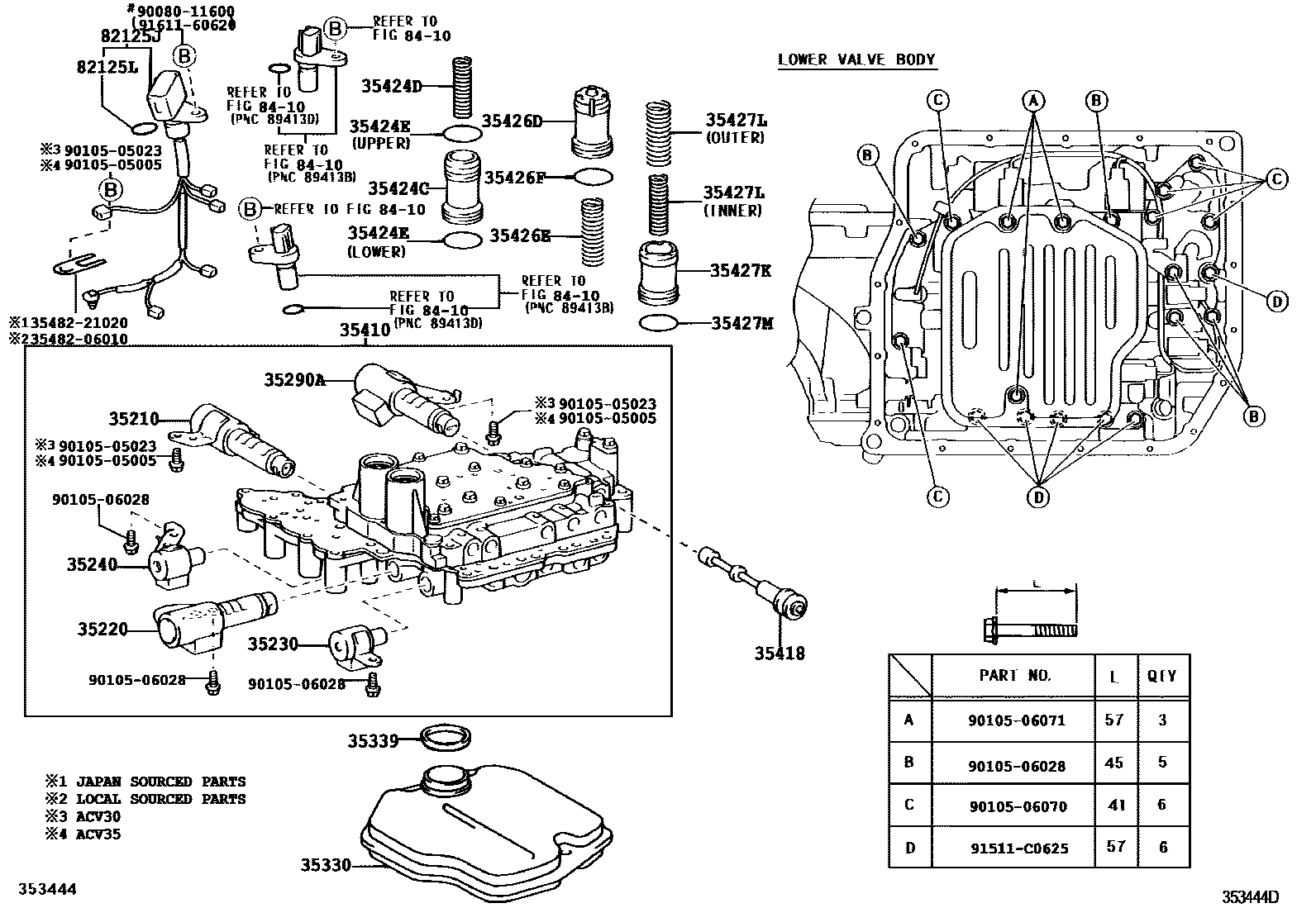

Toyota CAMRY 阀体和滤油网(ATM) EPC diagram — 353444D
阀体和滤油网(ATM) — 353444D (200109 – 999999)

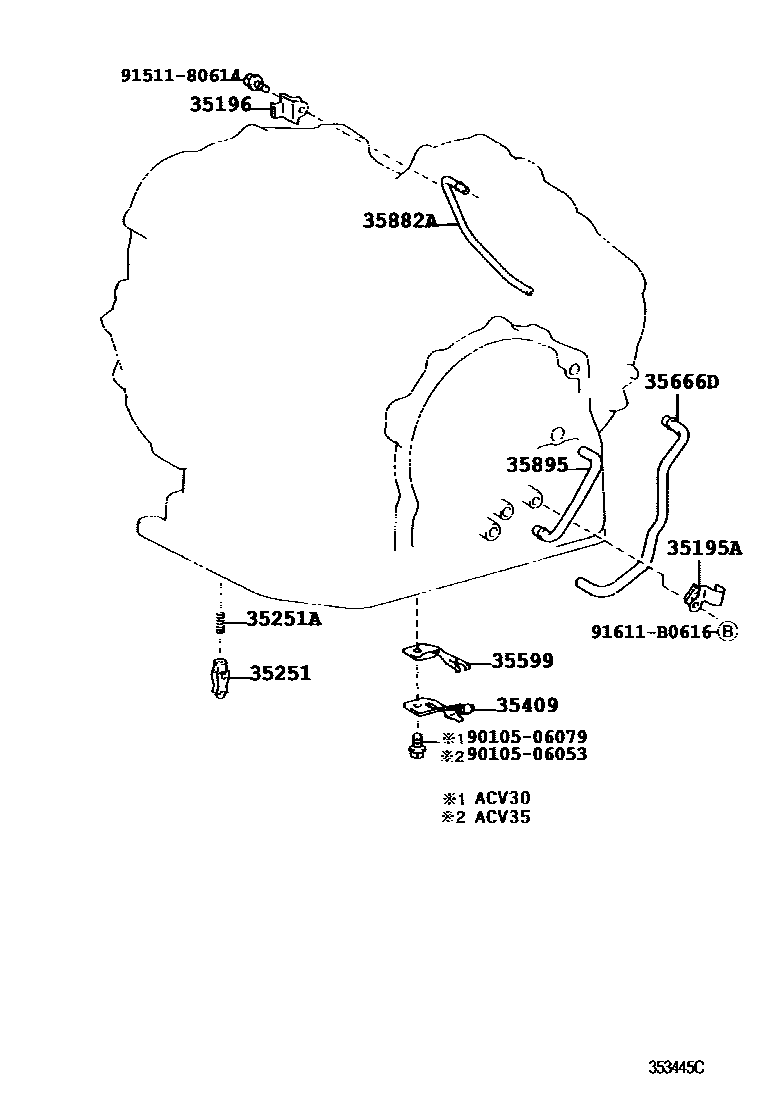

Toyota CAMRY 阀体和滤油网(ATM) EPC diagram — 353445C
阀体和滤油网(ATM) — 353445C (200109 – 999999)

PNC and OE references

PNCPart nameOE numbers
35195ANo. 1 transmission axle fuel supply pipe clamp35195-21010
35196No. 2 transmission axle fuel supply pipe clamp35196-21010
35210No. 1 clutch control solenoid valve assembly35210-21010
35220No. 2 clutch control solenoid valve assembly35220-21010
35230No. 2 transmission three-way solenoid valve assembly35230-21010
35240Automatic transmission three-way solenoid valve assembly35240-21010
35251Ball check valve body35251-30020
35251ACompression spring (for ball check valve body)90501-03005
35290APipe pressure control solenoid valve assembly35290-21010
35330Valve body oil filter assembly35330-06010 · 35330-28010
35339Oil filter gasket90301-32010
35409Manual lock spring sub-assembly35409-21010
35410Transmission valve body assembly35410-28420 · 35410-48011
35418Manual valve35418-21011
35424CC-1 Accumulator Piston35424-21010 · 35424-28010
35424DCompression spring (for C-1 accumulator piston)90501-22039
35424EO-ring (for C-1 accumulator piston)90301-27008 · 90301-30007
35426DC-3 Accumulator Piston35406-21010
35426ECompression spring (for C-3 accumulator piston)90905-01035
35426FO-ring (for C-3 accumulator piston)90301-30007
35427KB-3 Accumulator Piston35427-21010 · 35427-28010
35427LCompression spring (for B-3 accumulator piston)90501-22038 · 90501-25053
35427MO-ring (for B-3 accumulator piston)90301-28008
35599Manual locking spring cover35599-21010
35666DBrake oil supply pipe35666-28010 · 35666-32010
35882ADifferential gear lubricant oil supply pipe35882-28010 · 35882-32020
35895Front clutch oil supply pipe35895-21010 · 35895-28010
82125JTransmission wiring harness82125-06010 · 82125-21030 · 82125-28180
82125LO-ring (for transmission wiring harness)90301-21009
