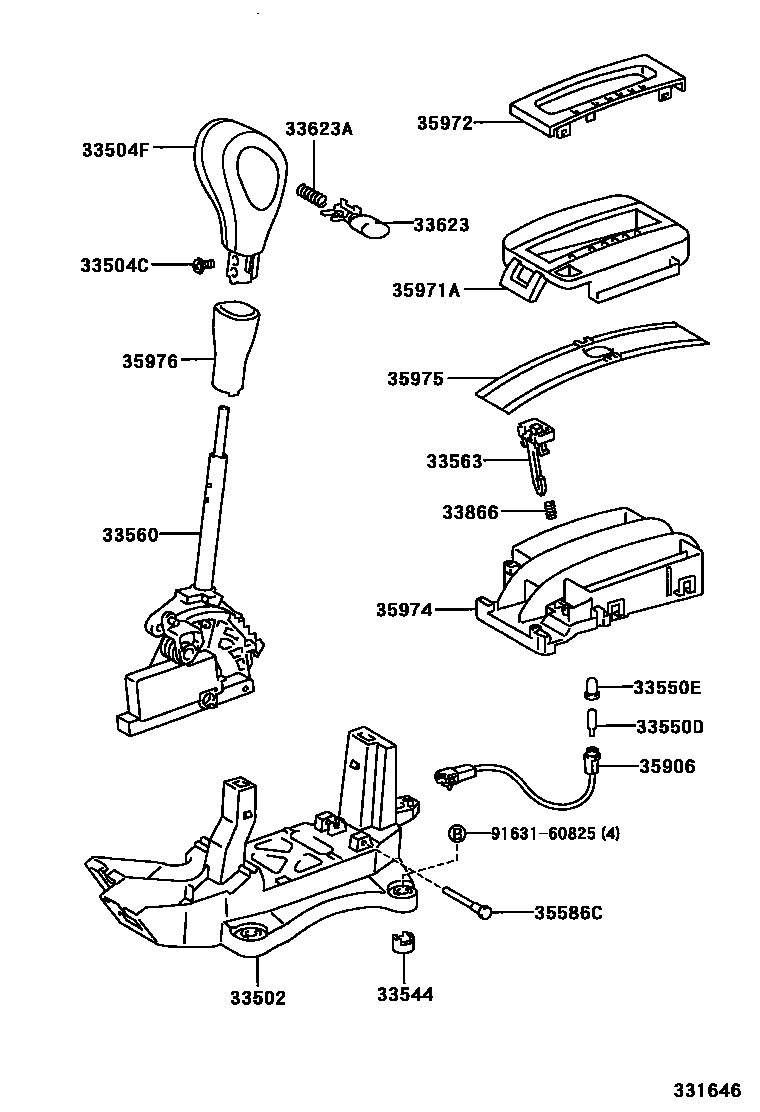

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33502 | Shift lever base plate sub-assembly | 33521-33050 |
| 33504C | Screw (for securing shift lever knob) | 90159-40238 |
| 33544 | Shift lever insert No. 1 | 33544-33010 |
| 33550D | position indicator light bulb | 90981-11014 |
| 33550E | position indicator cover | 90339-04049 |
| 33560 | Shift lock control unit assembly | 33560-33041 |
| 33563 | Shift lock release button | 33563-33150 |
| 33574B | No. 2 shift cable seal | 33574-33060 |
| 33623 | Shift lever handle button | 33623-33120 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07116 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08054 |
| 33820B | Transmission control cable assembly | 33820-33200 |
| 33823 | No. 1 transmission control cable bracket | 33823-48040 |
| 33826A | No. 2 transmission control cable bracket | 33826-33010 |
| 33866 | Shift lock release spring | 33866-33010 |
| 33880A | Parking lock cable assembly (for floor shift) | 33880-33021 |
| 35586C | Toggle lever bracket pin | 35586-33010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-33070 |
| 35971A | Position indicator light upper shell | 35971-33150 |
| 35972 | Position indicator light housing cover | 35972-33010 |
| 35974 | Position indicator light lower shell | 35974-33110 |
| 35975 | Slide cover (for position indicator light) | 35975-33060 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-06030 |
