Toyota CAMRY 燃油喷射系统 — Figure 2211

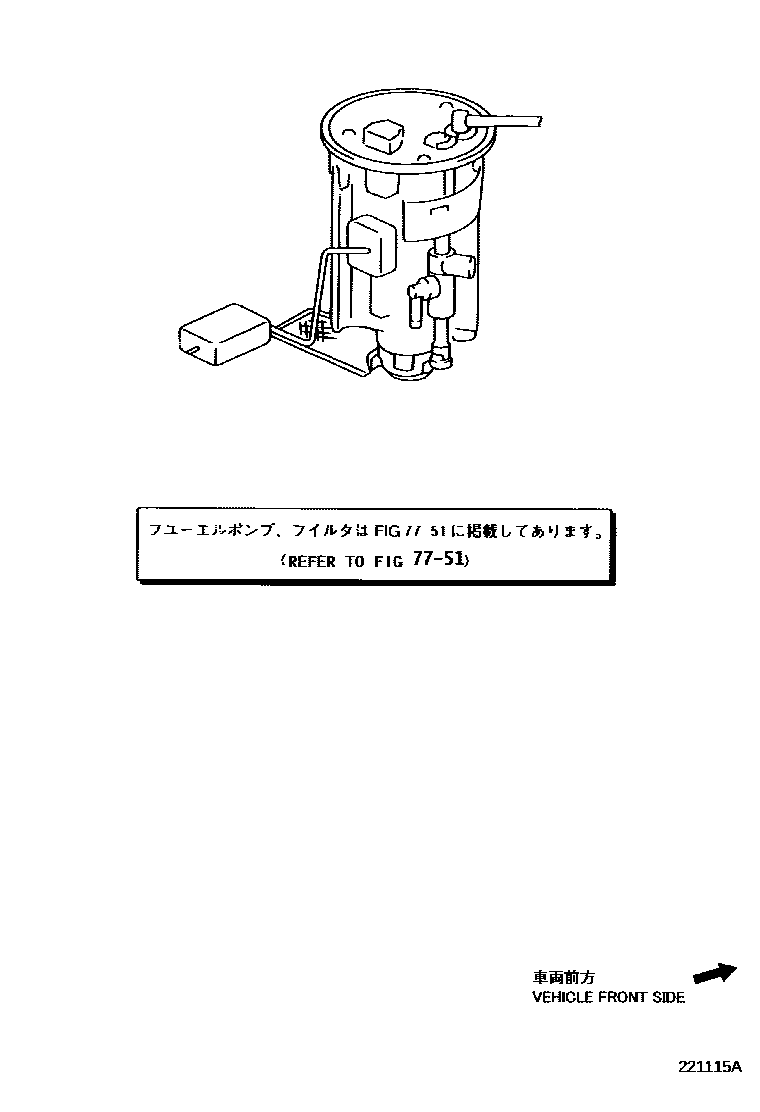

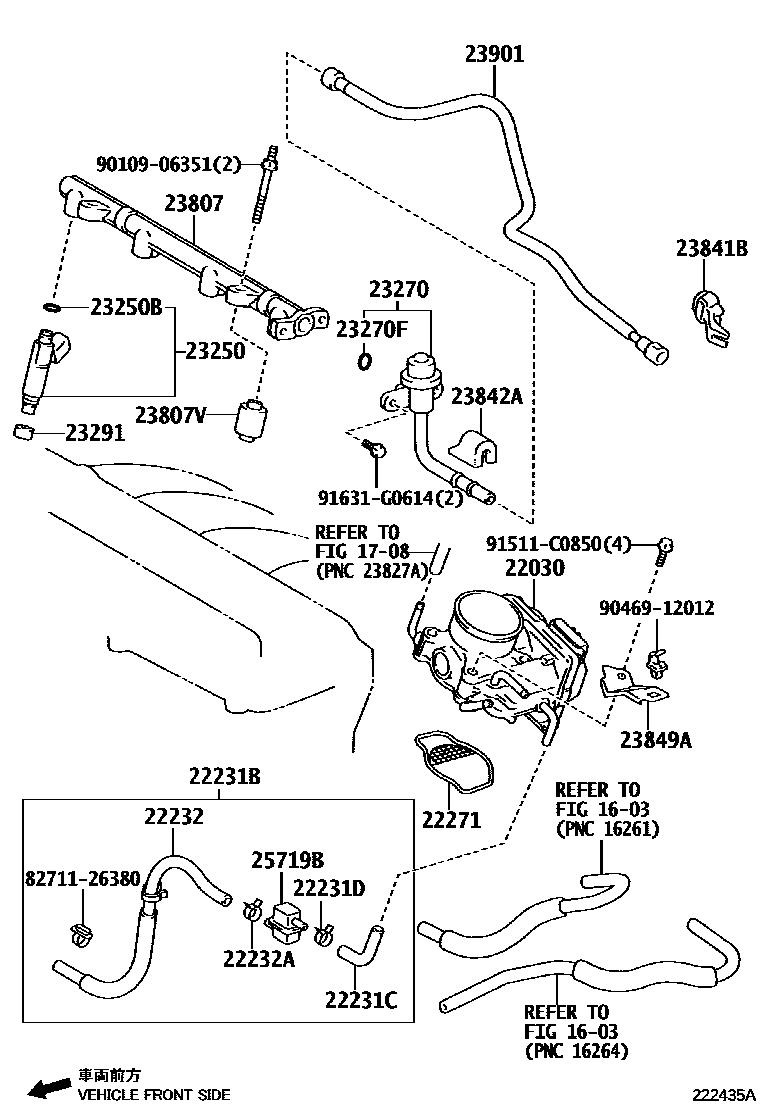

Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-28030 · 22030-28040 |
| 22231B | throttle body hose | 22231-28030 |
| 22231C | No. 1 throttle body hose | 22231-28040 |
| 22231D | Clip or clip (for throttle body hose) | 90467-12056 |
| 22232 | No. 2 throttle body hose | 22232-28010 |
| 22232A | Clip or clip (for throttle body hose) | 90467-12056 |
| 22271 | Throttle body gasket | 22271-28020 |
| 23250 | Fuel injector assembly | 23209-28020 |
| 23250B | O-ring (for fuel injector) | 90301-07024 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-28020 |
| 23270F | O-ring (for pulsation damper) | 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-41010 |
| 23807 | Oil pipe sub-assembly | 23814-28020 · 23814-28031 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08053 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-28010 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-22020 · 23842-28010 |
| 23849A | Fuel pipe bracket | 23849-28030 |
| 23901 | Fuel pipe sub-assembly | 23901-28130 · 23901-28210 |
| 25719B | Vacuum pressure tank | 25719-28040 · 25719-62050 |
