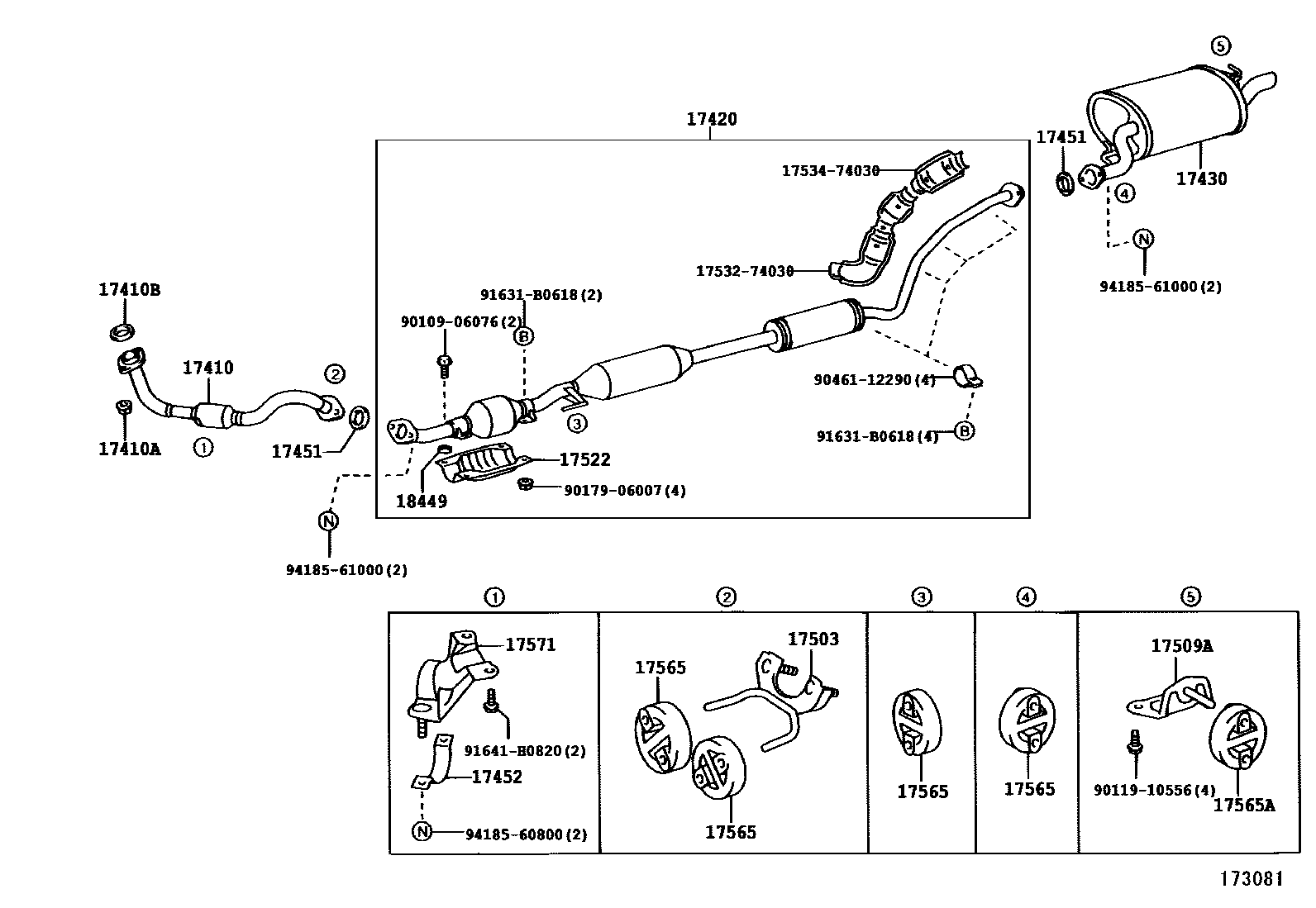

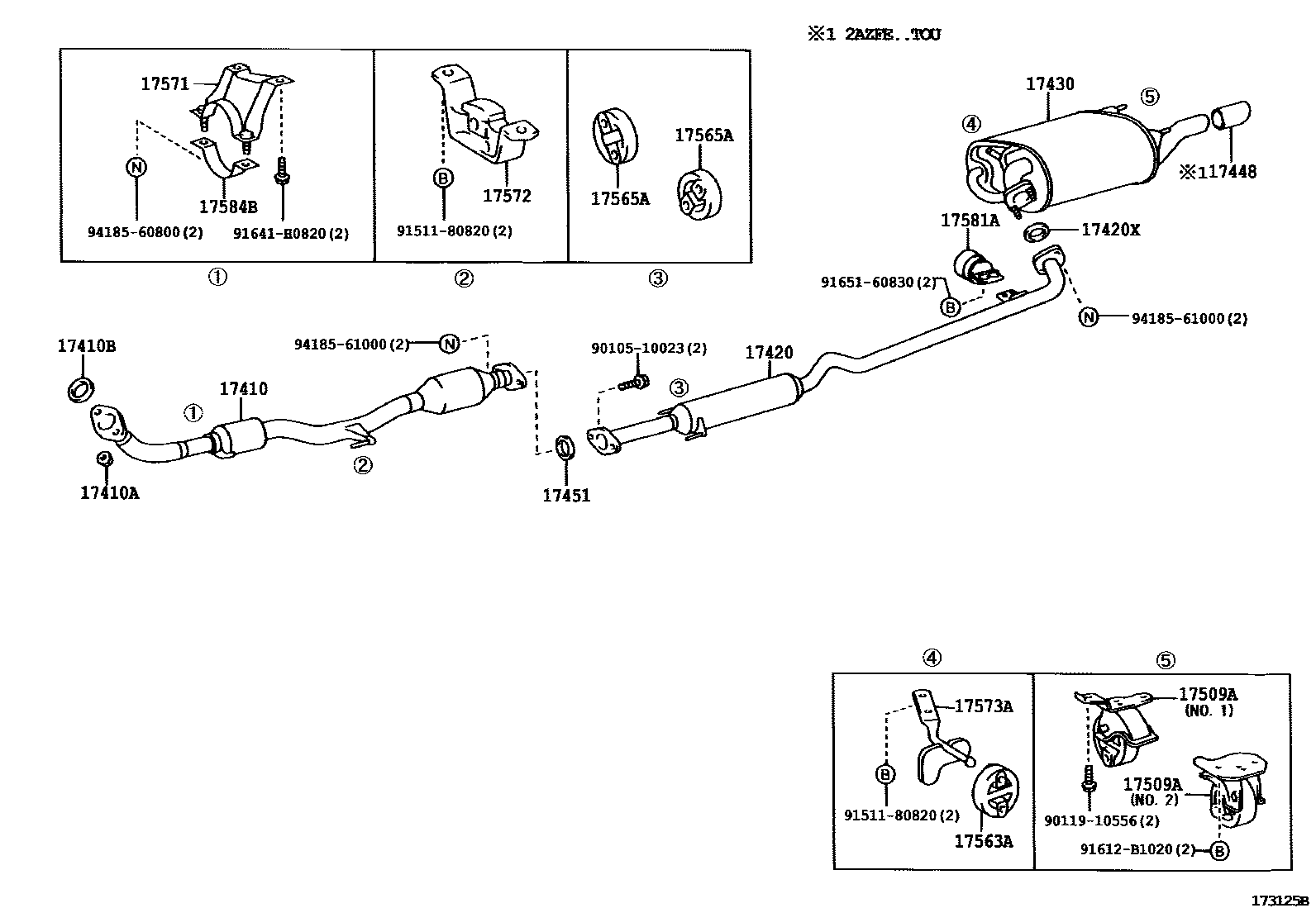

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-28350 · 17410-28351 · 17410-28360 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06090 |
| 17420 | Central exhaust pipe assembly | 17420-28150 · 17420-28160 · 17420-28320 |
| 17420X | Center exhaust pipe liner | 90917-06078 |
| 17430 | Exhaust tailpipe assembly | 17430-28270 · 17430-28280 · 17430-28290 · 17430-28560 · 17430-28570 |
| 17448 | Exhaust pipe tail throat | 17408-74080 |
| 17451 | Exhaust pipe gasket | 90917-06076 · 90917-06078 |
| 17452 | Exhaust pipe clamp | 17452-74120 |
| 17503 | Three-way catalytic converter rear bracket sub-assembly | 17503-28040 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17509-20060 · 17509-20070 · 17509-74201 |
| 17522 | No. 2 upper exhaust pipe protection device | 17522-21010 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-20060 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-15140 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-11160 · 17565-20060 |
| 17571 | No. 1 exhaust pipe bracket | 17571-28080 · 17571-28090 |
| 17572 | No. 1 exhaust pipe bracket | 17572-28020 |
| 17573A | No. 3 exhaust pipe bracket | 17573-28010 |
| 17581A | Exhaust pipe damper | 17581-74070 |
| 17584B | No. 1 exhaust pipe bracket | 17584-28020 |
| 18449 | Three-way catalytic converter protection device gasket | 18449-74010 |
