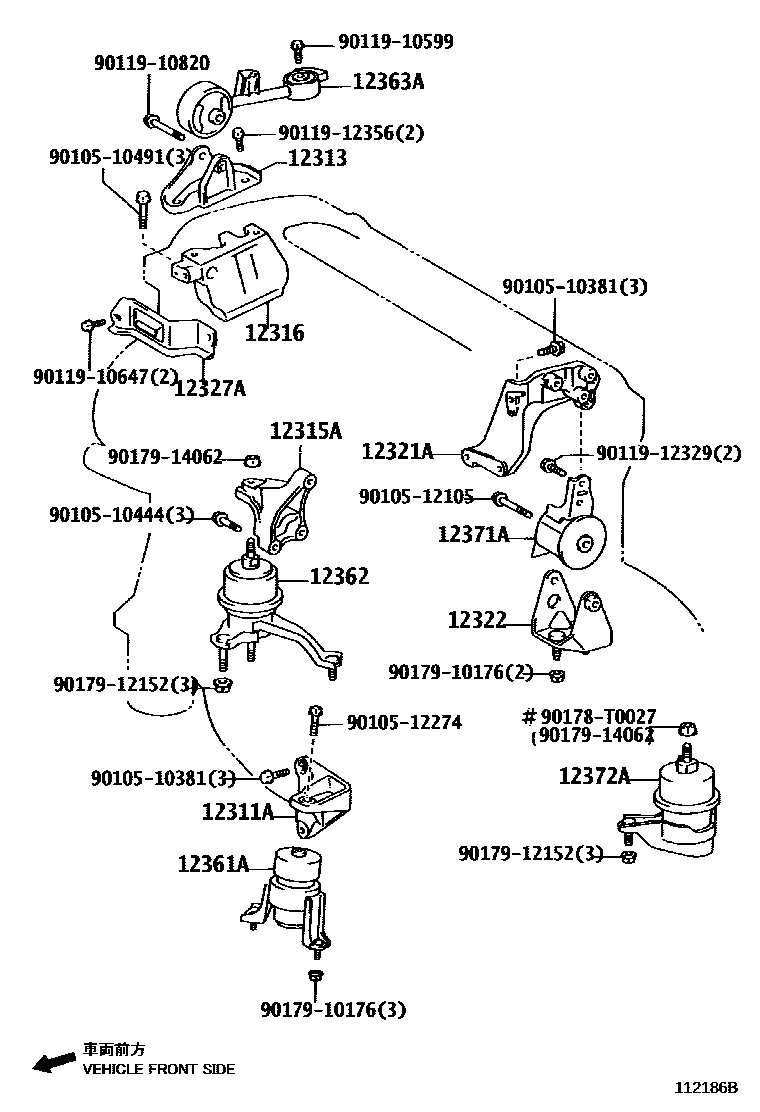

Toyota CAMRY Engine Mounting — Figure 1107
Toyota CAMRY EPC diagram 1107, Engine Mounting, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-20060 · 12311-28080 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-28020 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-28010 · 12315-28020 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-28060 · 12316-28061 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-28030 · 12321-28031 |
| 12322 | Engine No. 2 rear suspension bracket | 12322-28020 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-28030 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-28110 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-28100 |
| 12363A | Engine movement control lever | 12363-28060 · 12363-28070 |
| 12371A | Engine rear mount vibration isolation pad | 12371-28010 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-28020 |
