Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106

Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 4 PNC and OE references.

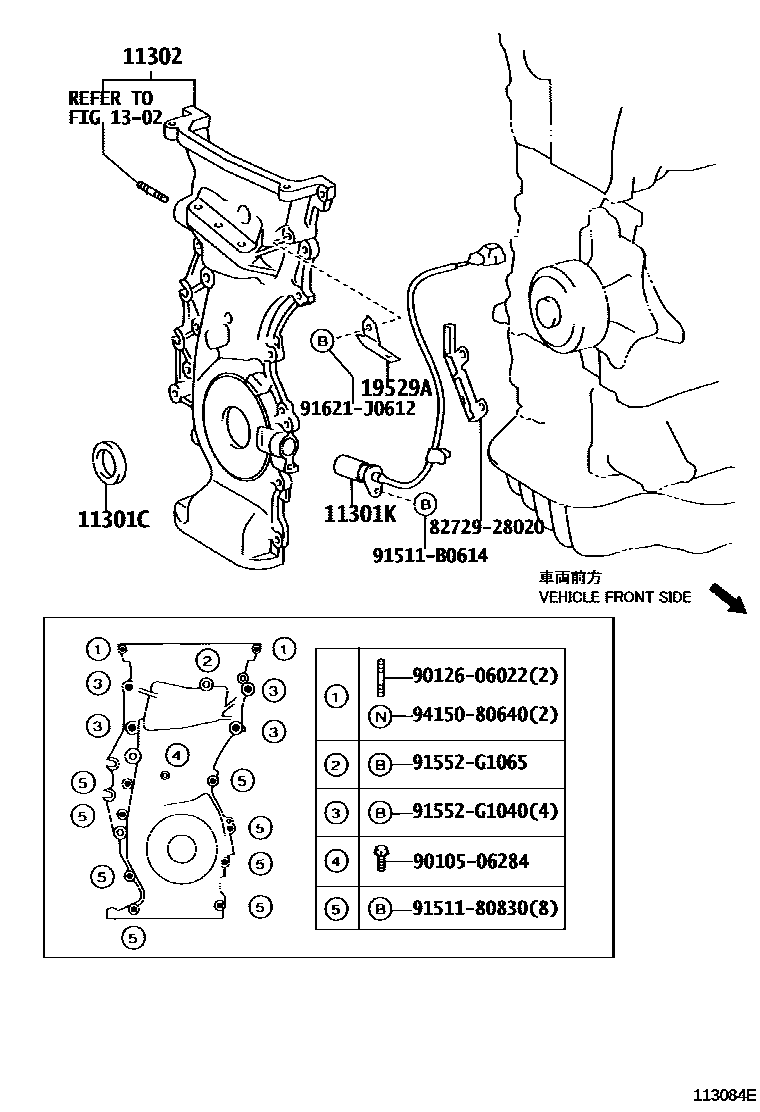

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — 113084E
Timing Gear Cover & Rear End Plate — 113084E (200109 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-38078 · 90311-38084 · 90311-38089
11301Kcrankshaft position sensor90919-05047
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-28070 · 11310-28071
19529Acard holder19529-28010
