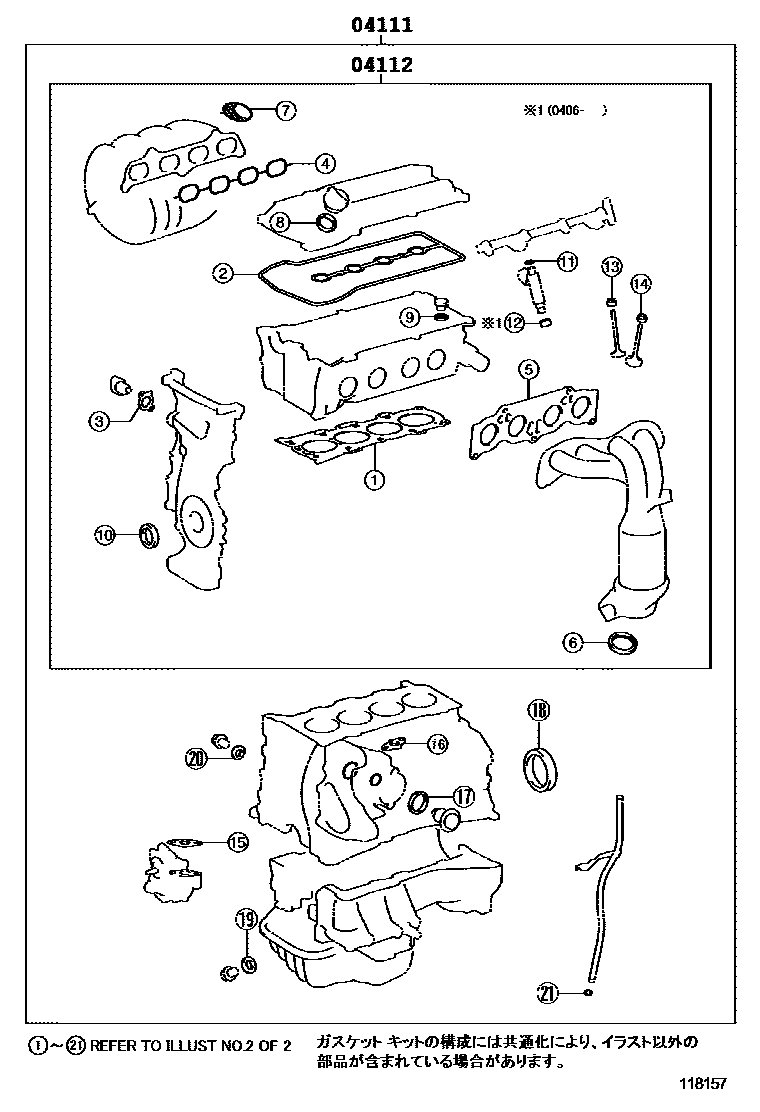

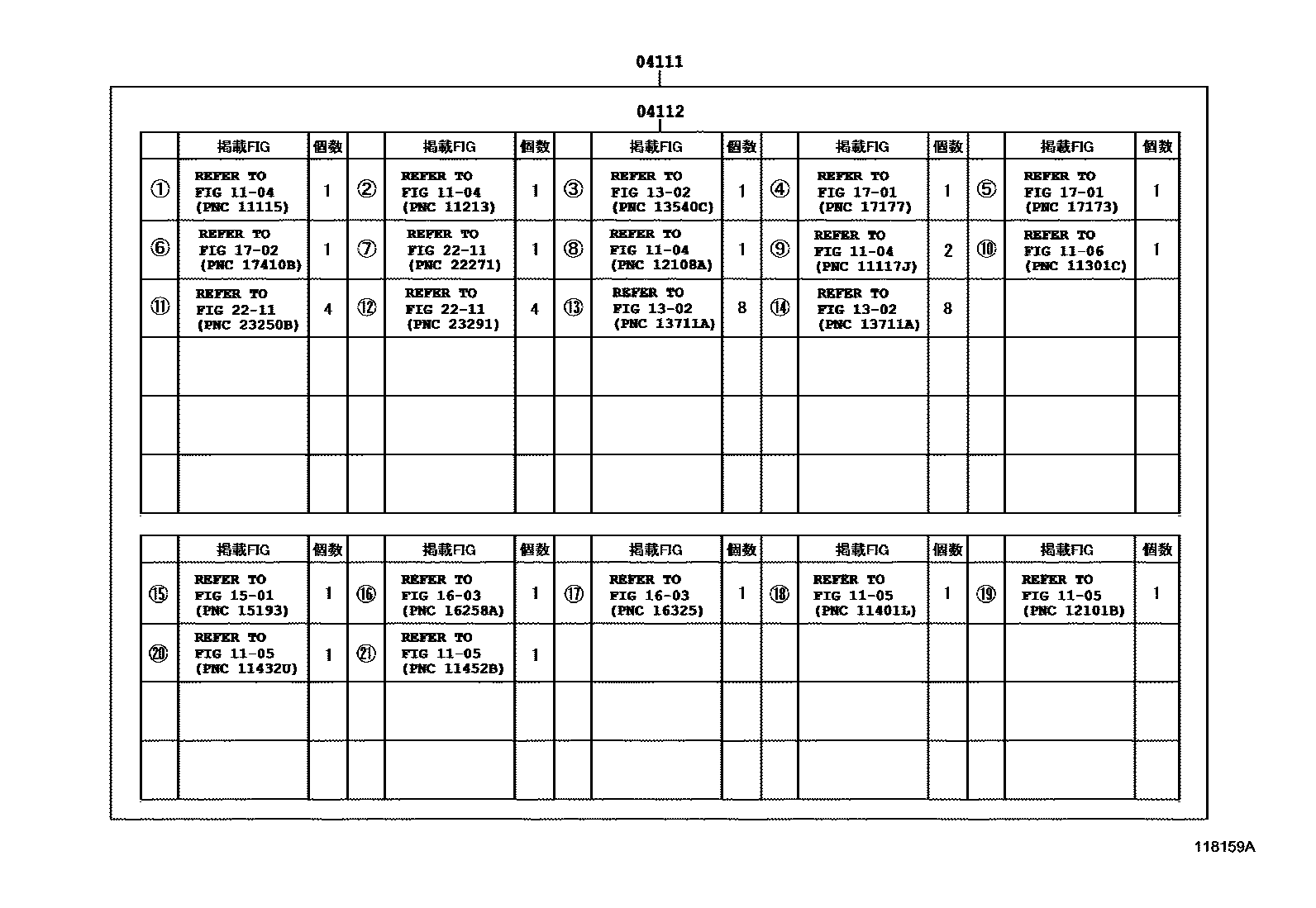

Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103
Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-28130 · 04111-28131 · 04111-28132 · 04111-28133 · 04111-28260 · 04111-28261 · 04111-28262 |
| 04112 | Engine valve grinding pad assembly | 04112-28130 · 04112-28131 · 04112-28132 · 04112-28133 · 04112-28260 · 04112-28261 · 04112-28262 |
