Toyota CAMRY 空气净化器或离子发生器 — Figure 8724

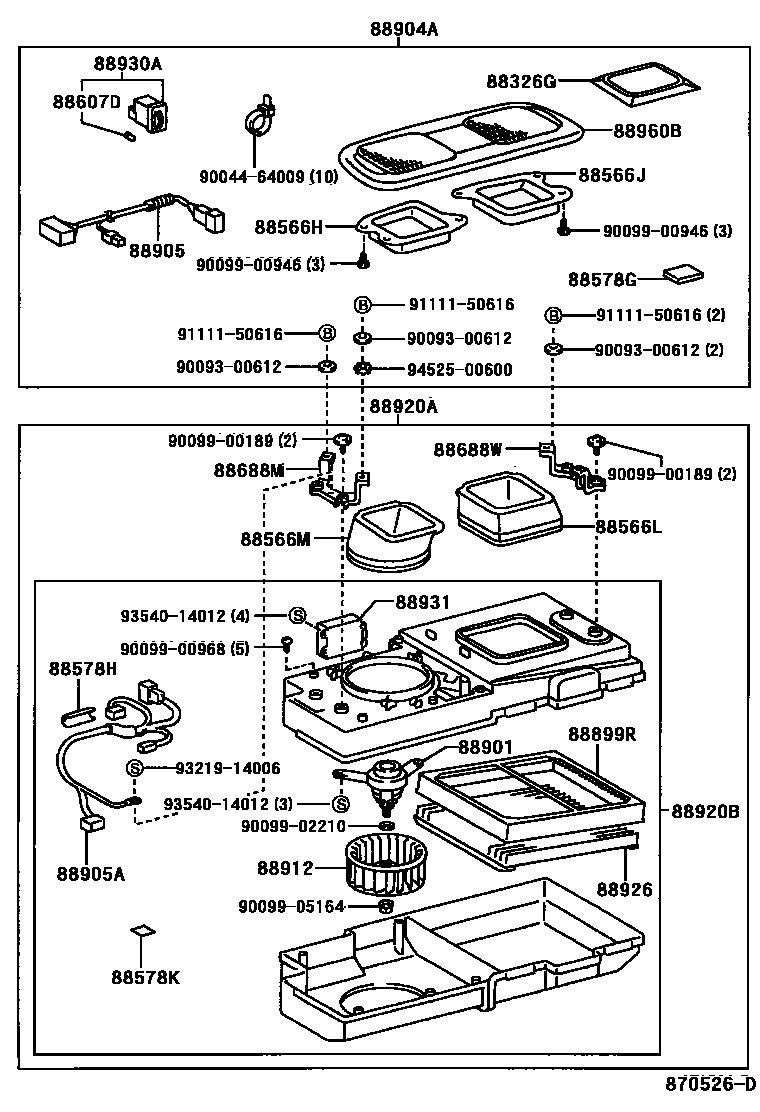

Toyota CAMRY EPC diagram 8724, 空气净化器或离子发生器, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88326G | Cover plate | 88326-33040 |
| 88566H | No. 1 air duct | 88566-33070 |
| 88566J | Duct No. 2 | 88566-33080 |
| 88566L | No. 1 air duct | 88566-33030 |
| 88566M | Duct No. 2 | 88566-33040 |
| 88578G | No. 1 air purifier seal | 88578-30370 |
| 88578H | No. 2 air purifier seal | 88578-30370 |
| 88578K | Cooler seal No. 1 | 88578-28190 |
| 88607D | Air purifier switch light sub-assembly | 90010-03005 |
| 88688M | Air purifier bracket No. 2 | 88688-33300 |
| 88688W | Air purifier bracket No. 1 | 88688-33290 |
| 88899R | air purifier frame | 88899-32020 |
| 88901 | Air purifier motor sub-assembly | 88901-32020 |
| 88905 | Air purifier No. 1 wiring harness sub-assembly | 88905-33050 |
| 88905A | Air purifier No. 2 wiring harness sub-assembly | 88905-33030 |
| 88912 | air purifier fan | 88912-32140 |
| 88920A | Air purifier assembly | 88920-33040 |
| 88920B | No. 2 air purifier assembly | 88920-33050 |
| 88926 | air purifier filter | 88926-32030 |
| 88930A | Air purifier switch assembly | 88930-33050 |
| 88931 | smoke sensor | 88931-50030 |
