Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719

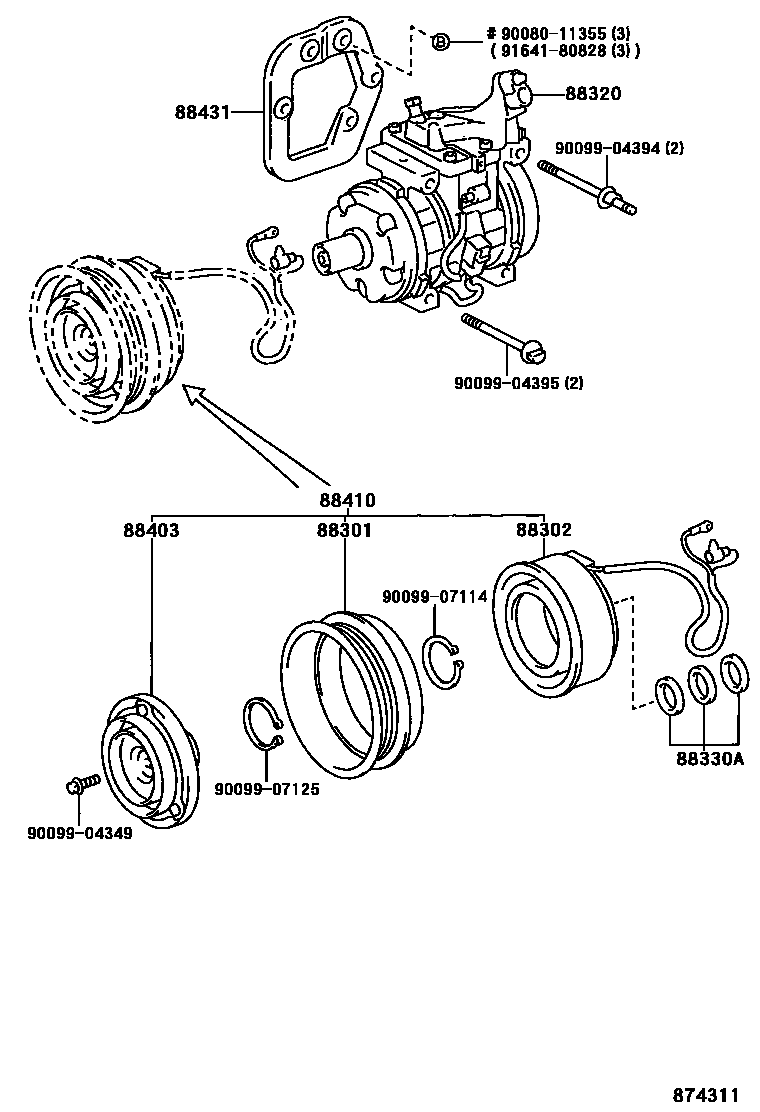

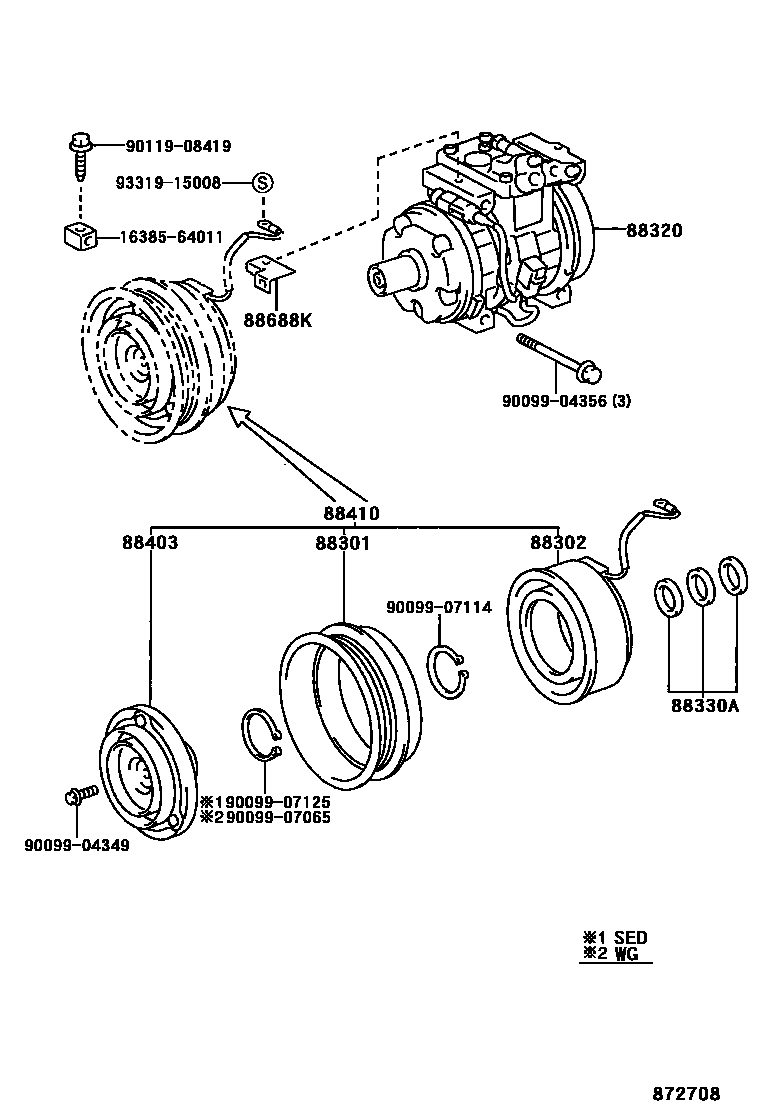

Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-2A050 · 88412-32060 · 88412-33010 · 88412-33040 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-22310 · 88411-2A030 · 88411-33050 |
| 88320 | Cooler Compressor Assembly | 88320-33100 · 88320-33120 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-30290 |
| 88410 | Magnetic Clutch Assembly | 88410-28170 · 88410-33090 · 88410-33100 · 88410-33110 |
| 88431 | Compressor No. 1 mounting bracket | 88431-07010 · 88431-33020 |
| 88688K | Cooler compressor bracket | 88688-33260 |
