Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

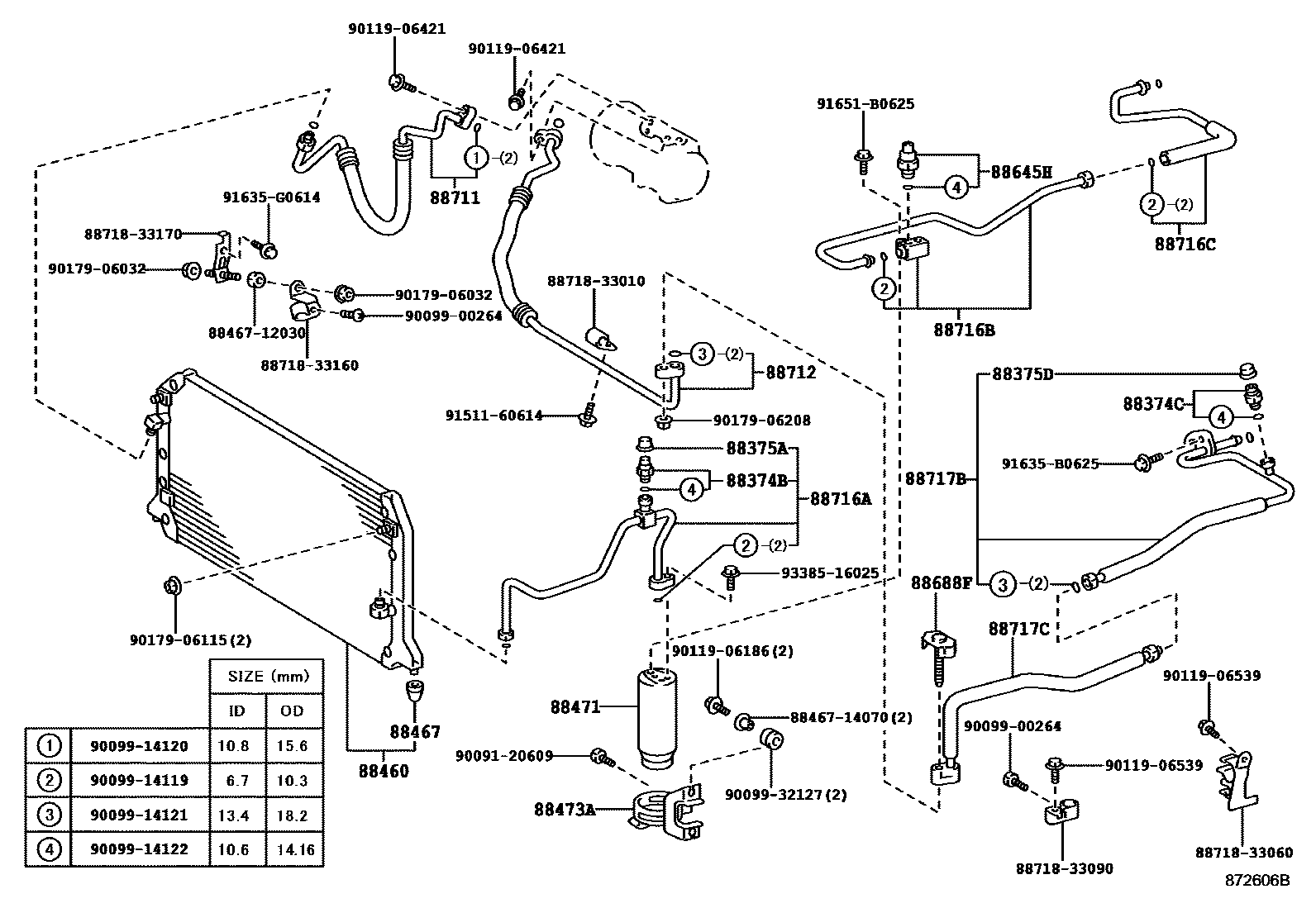

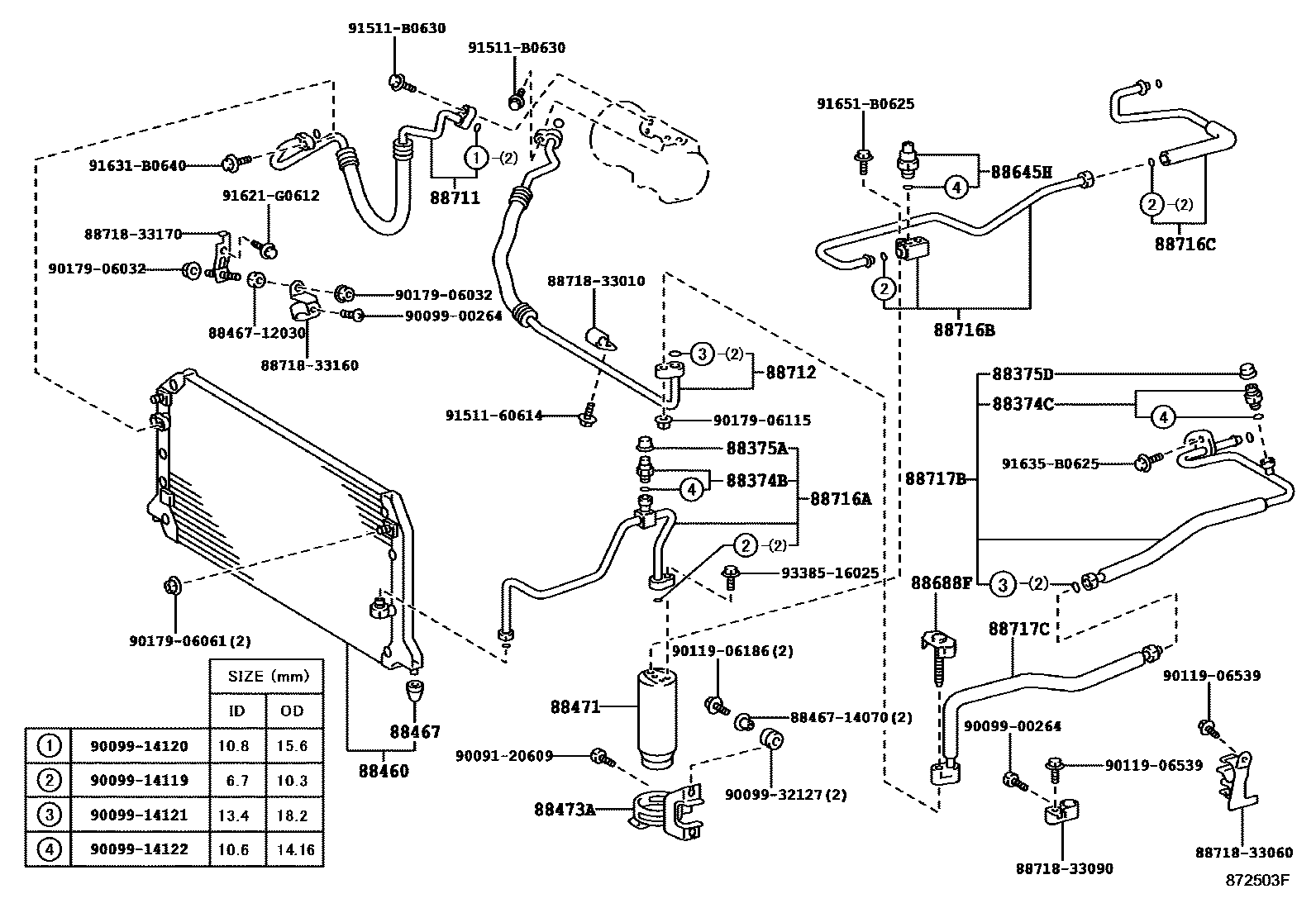

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-30280 |
| 88375D | No. 2 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88460-0W010 · 88460-0W011 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-06020 |
| 88471 | Air conditioning fluid storage tank | 88471-20050 |
| 88473A | Reservoir tank fixings | 88473-33050 |
| 88645H | No. 1 pressure switch | 88645-20050 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-33240 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-33100 · 88711-33101 · 88711-33110 · 88711-33111 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-33070 · 88712-33091 · 88712-33100 · 88712-33110 · 88712-33111 · 88712-33170 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-33240 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-33290 |
| 88716C | Cooler refrigerant liquid pipe C | 88716-33280 |
| 88717B | Cooler refrigerant suction pipe B | 88717-33170 |
| 88717C | Cooler refrigerant suction pipe C | 88717-33160 |
