Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716

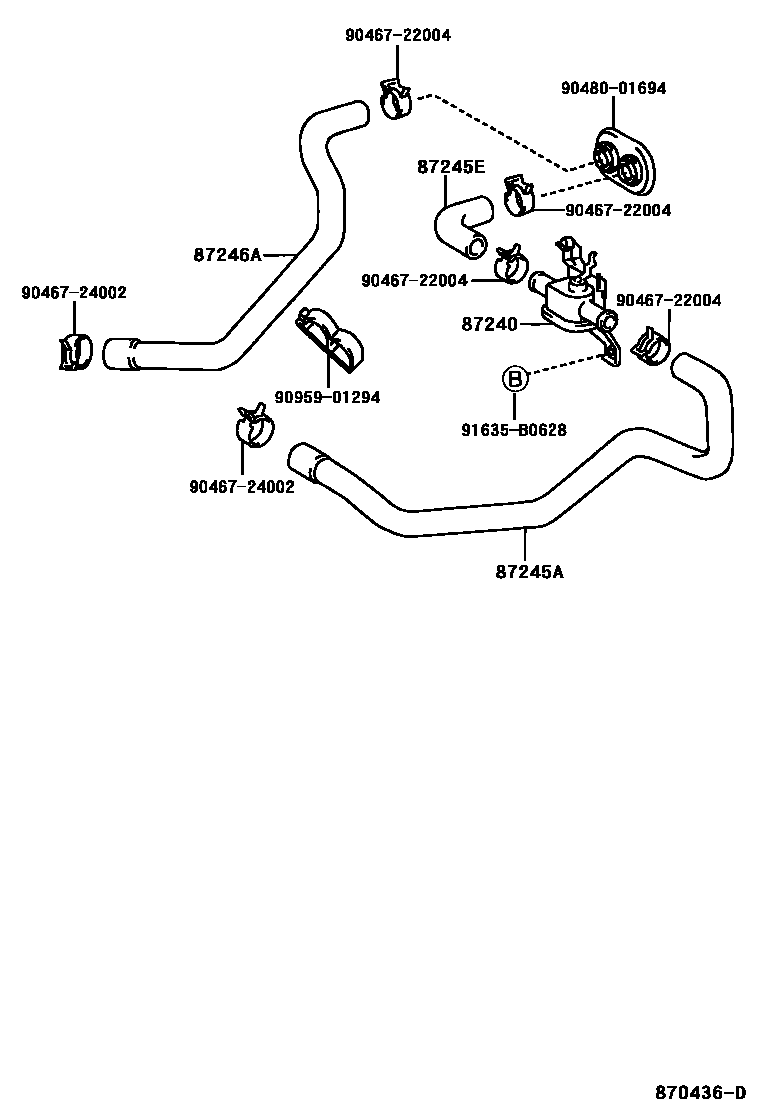

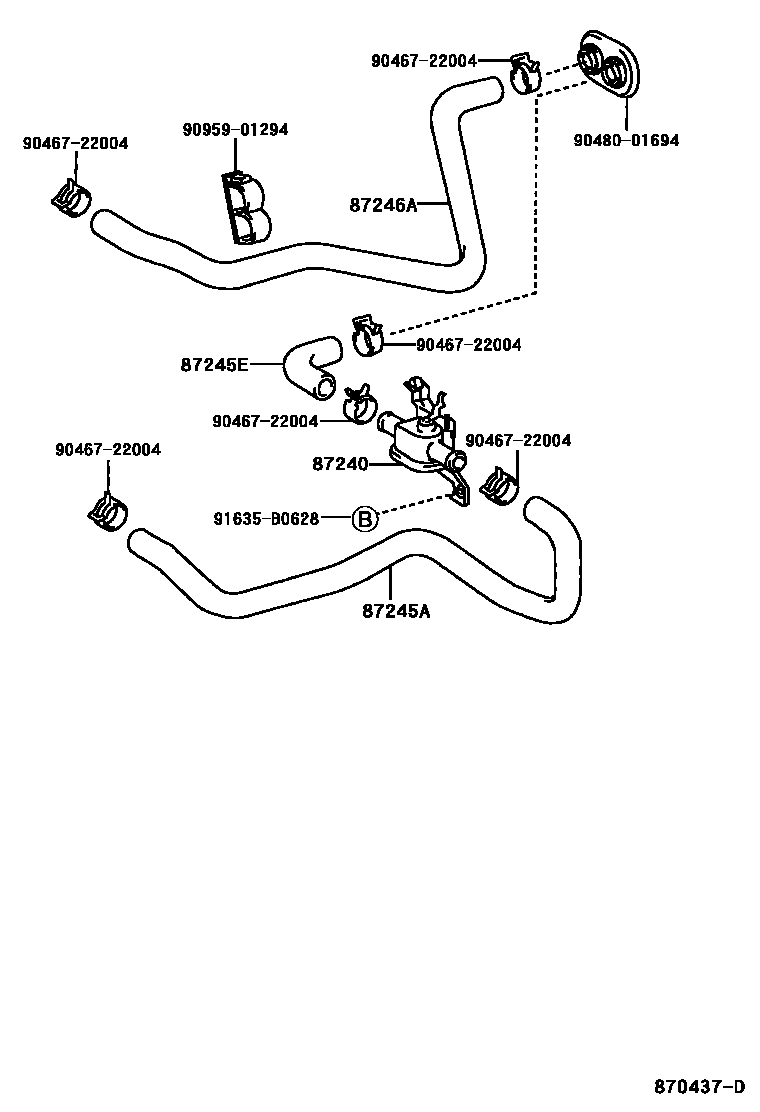

Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87240 | Heater water valve assembly | 87240-33020 |
| 87245A | Heater water inlet hose A | 87245-33190 · 87245-33230 · 87245-33250 · 87245-33270 |
| 87245E | Heater water inlet hose E | 87245-33100 |
| 87246A | Heater outlet hose A | 87245-33200 · 87245-33240 · 87245-33260 · 87245-33280 |
