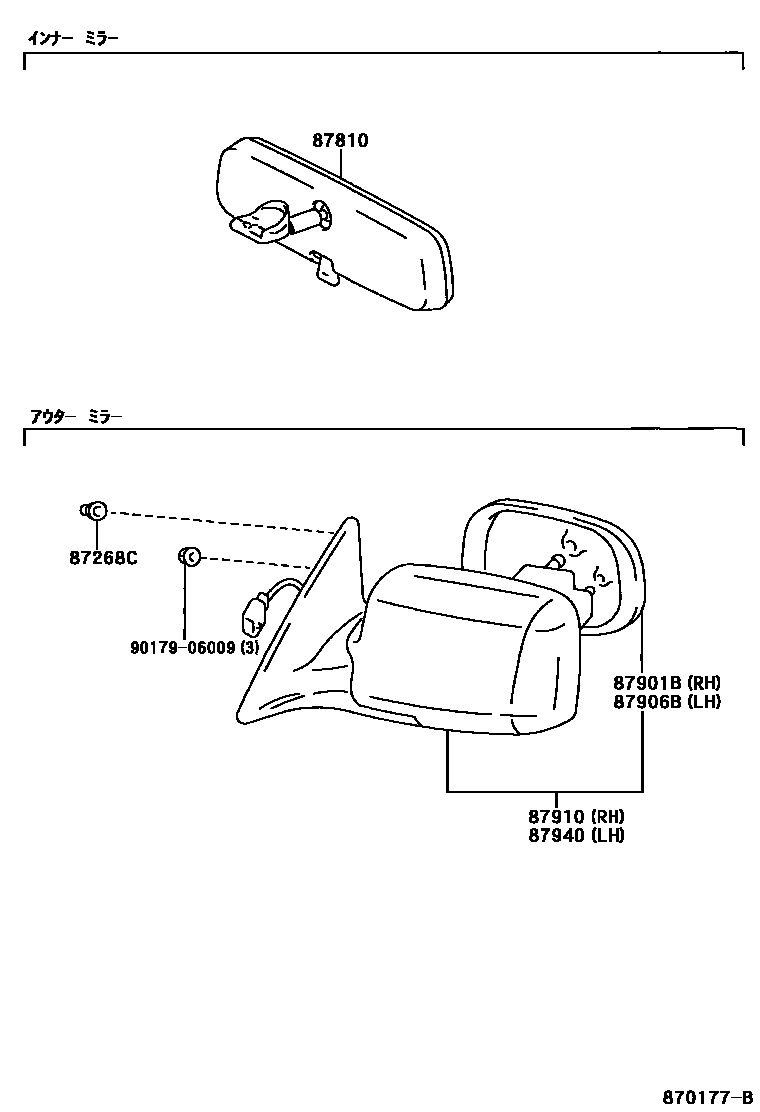

Toyota CAMRY 后视镜 — Figure 8701
Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87268C | Exterior mirror protection device | 87268-33010 |
| 87810 | Interior rearview mirror assembly | 87810-0W030 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-33160 · 87931-33180 · 87931-33250 · 87931-33260 · 87931-33350 · 87931-33360 · 87931-33370 · 87931-33380 · 87931-33440 · 87931-33450 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-33160 · 87961-33180 · 87961-33320 · 87961-33330 · 87961-33400 · 87961-33410 |
